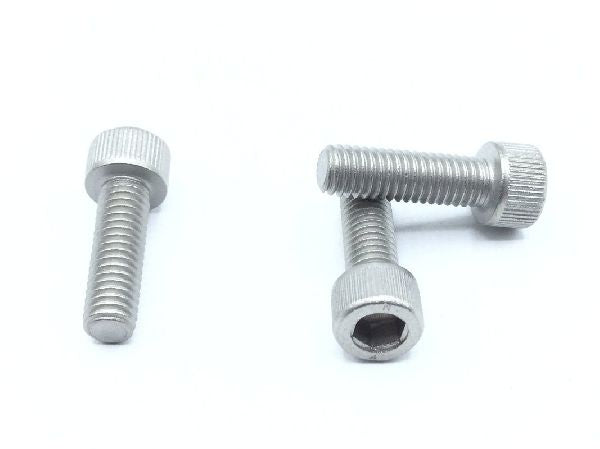

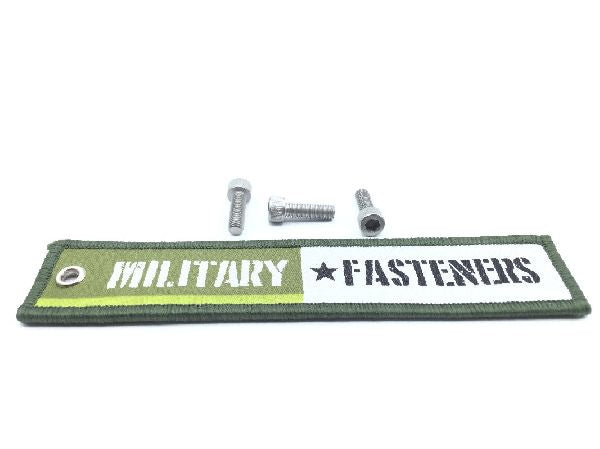

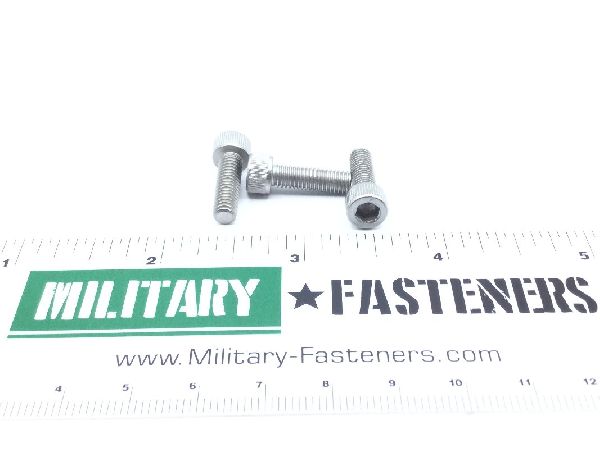

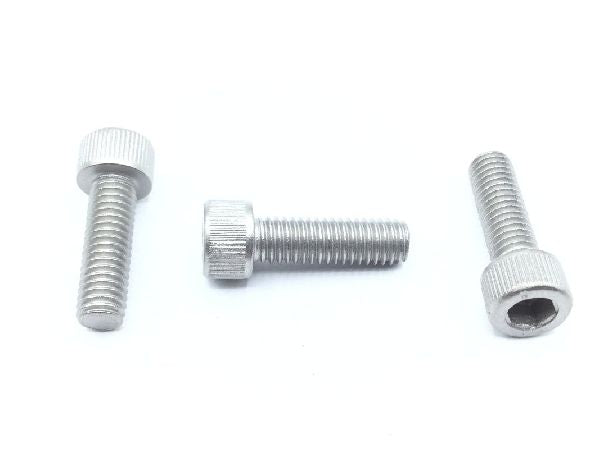

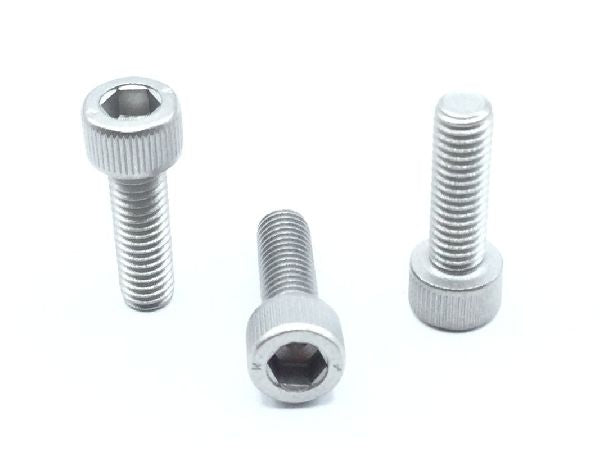

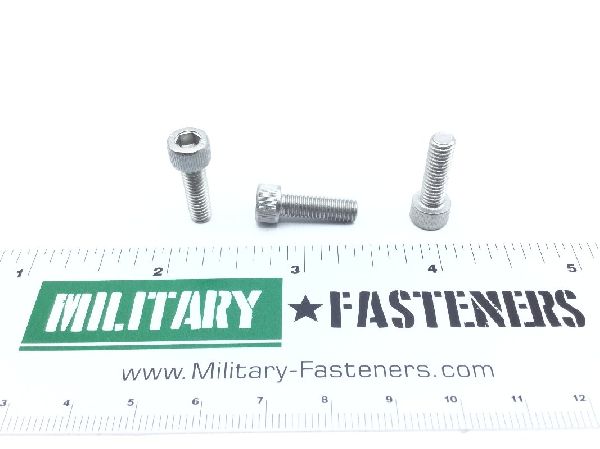

NAS1351N3-10 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.92

Units per Pack 25

Price per Pack $48.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.00

Add item to quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.595 inches and 0.625 inches
Head Height: Between 0.185 inches and 0.190 inches
Internal Drive Style: Hexagon
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.625 millimeters
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unrf
Width Across Flats: Between 0.1562 inches and 0.1587 inches
Head Diameter: Between 0.303 inches and 0.312 inches
