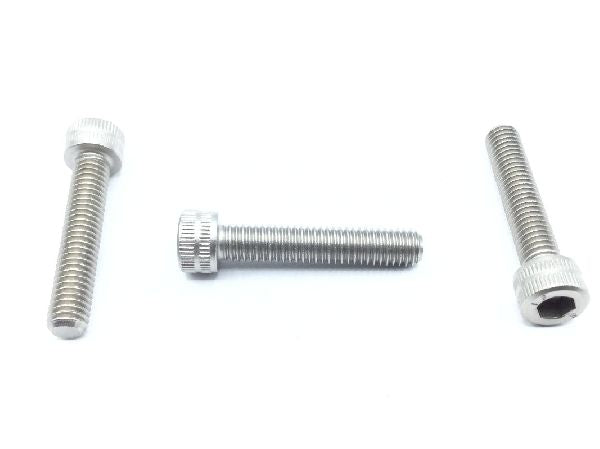

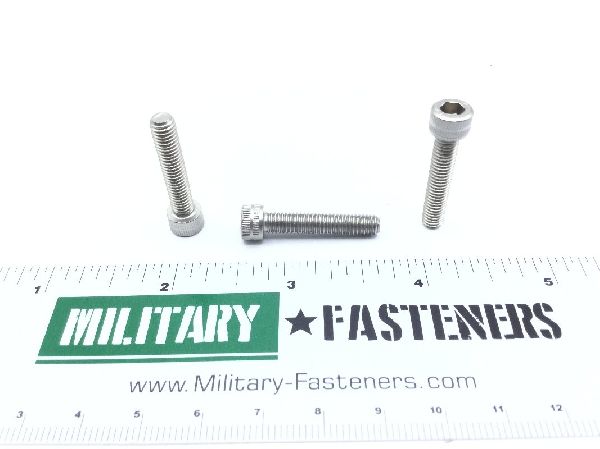

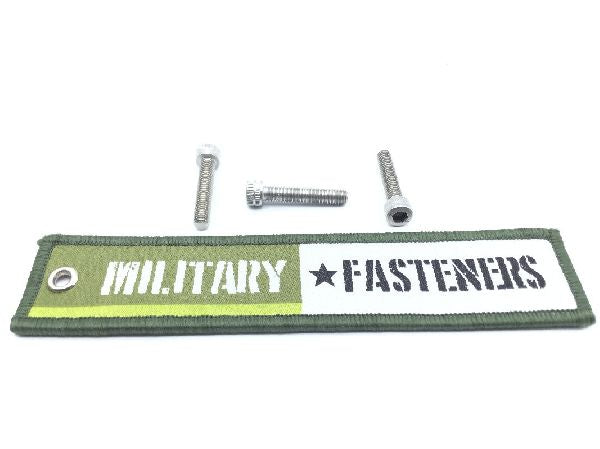

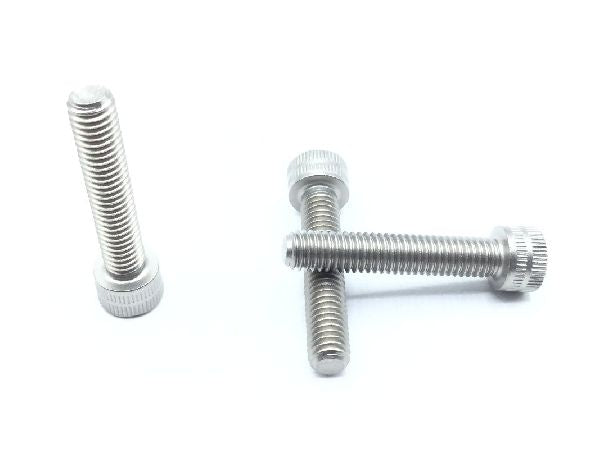

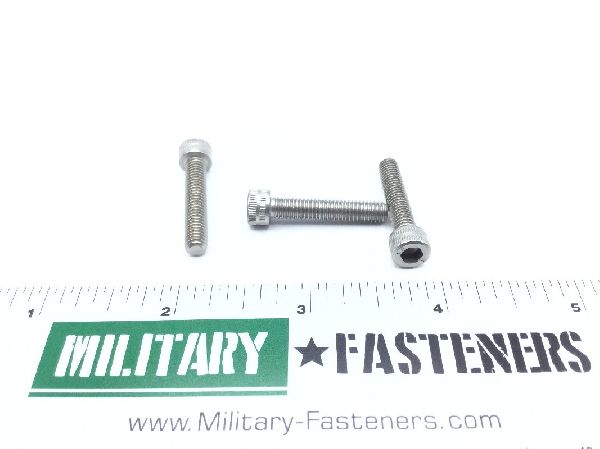

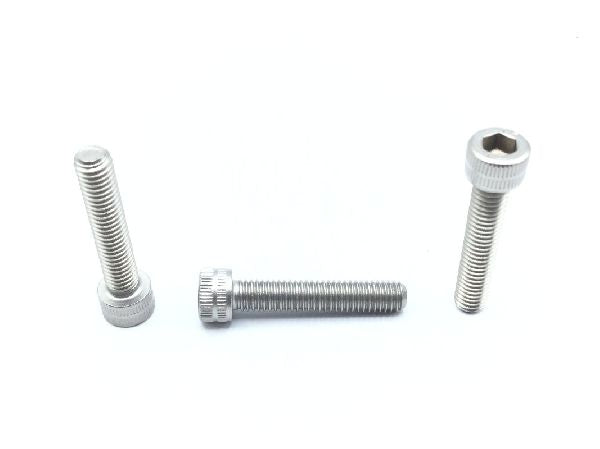

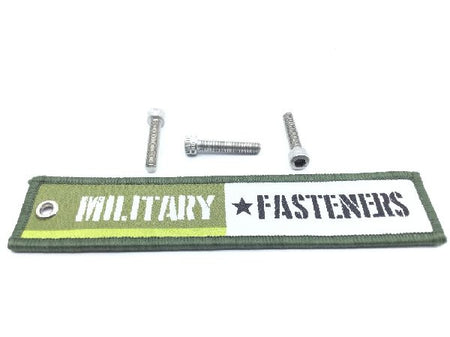

NAS1351N3-16 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $3.68

Units per Pack 10

Price per Pack $36.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $36.80

Add item to quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: Between 0.970 inches and 1.000 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.185 inches and 0.190 inches
Internal Drive Style: Hexagon
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Minimum Yield Strength: 153000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.875 inches
Thread Series Designator: Unrf
Width Across Flats: Between 0.156 inches and 0.159 inches
Head Diameter: Between 0.303 inches and 0.312 inches
