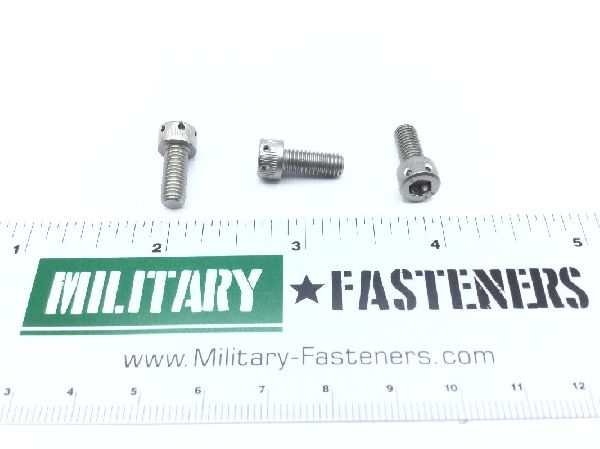

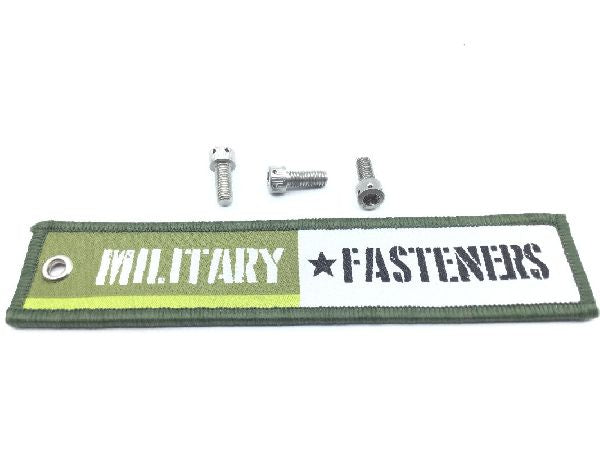

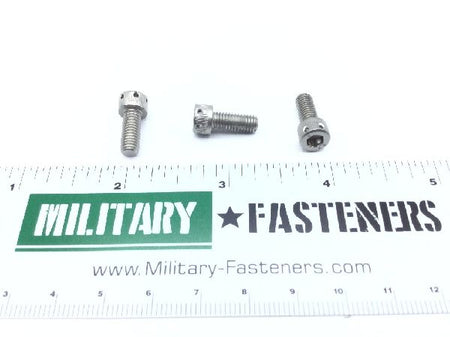

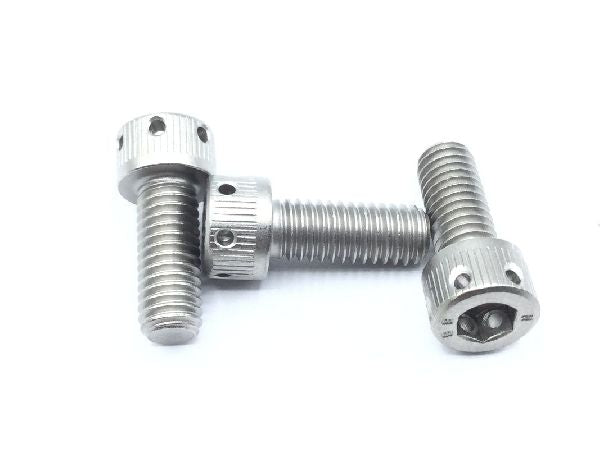

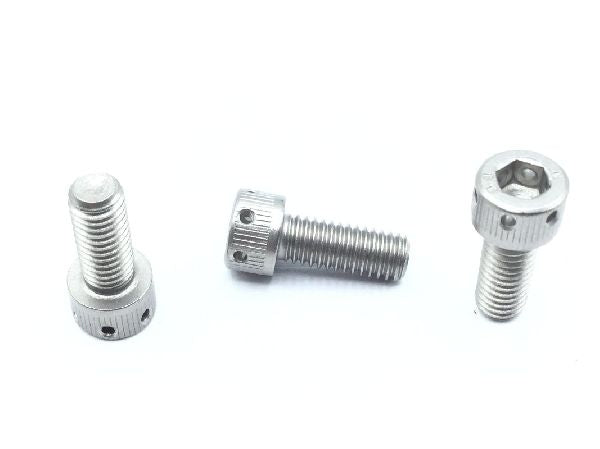

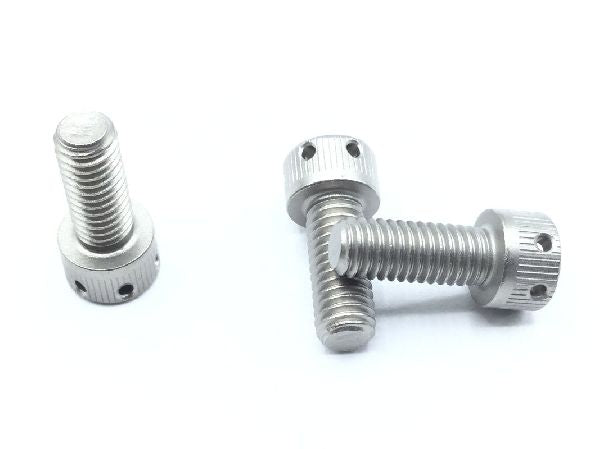

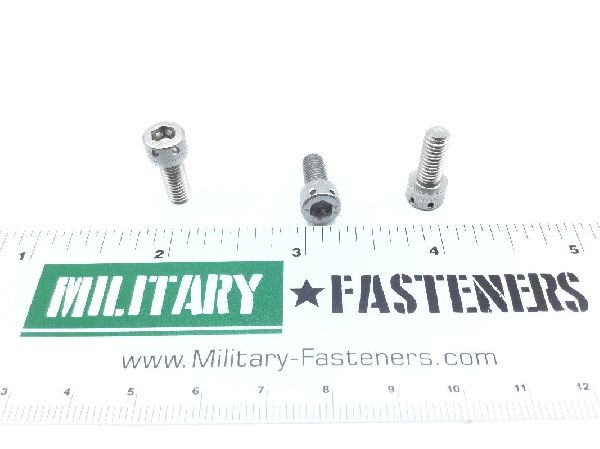

NAS1351N3H8 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.47 inches and 0.5 inches
Hardness Rating: 46 rockwell and 50 rockwell
Head Height: Between 0.185 inches and 0.190 inches
Hole Configuration Style: Round longitudinal hole
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Minimum Yield Strength: 155000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: Between 0.408 inches and 0.500 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unrf
Width Across Flats: Between 0.156 inches and 0.159 inches
Head Diameter: Between 0.303 inches and 0.312 inches
Hole Diameter: Between 0.044 inches and 0.05 inches
