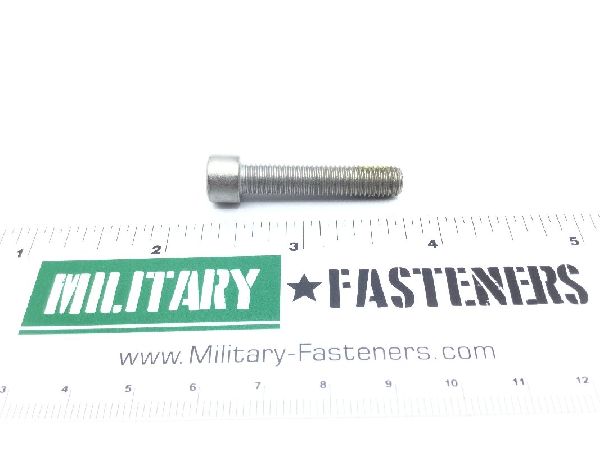

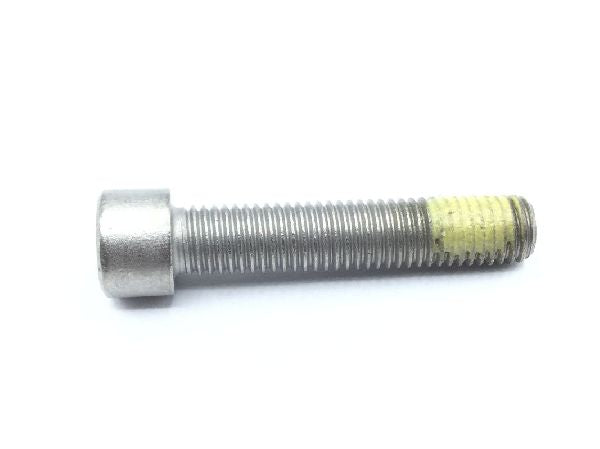

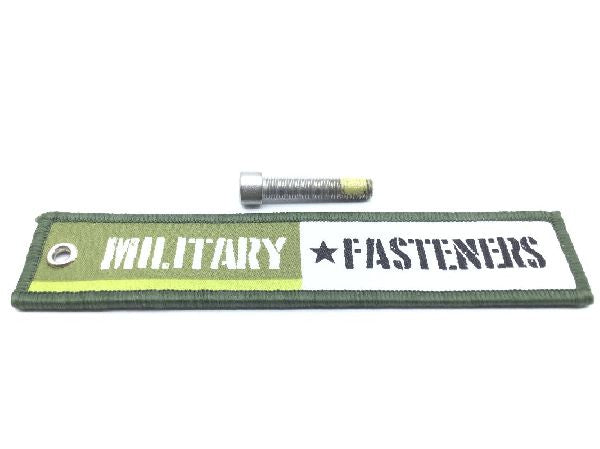

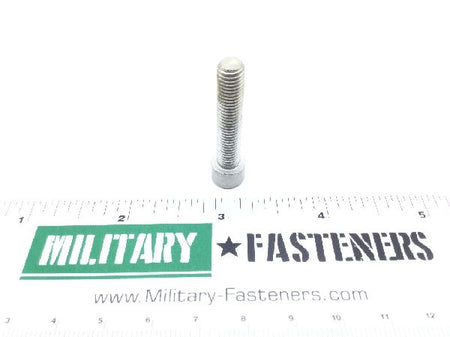

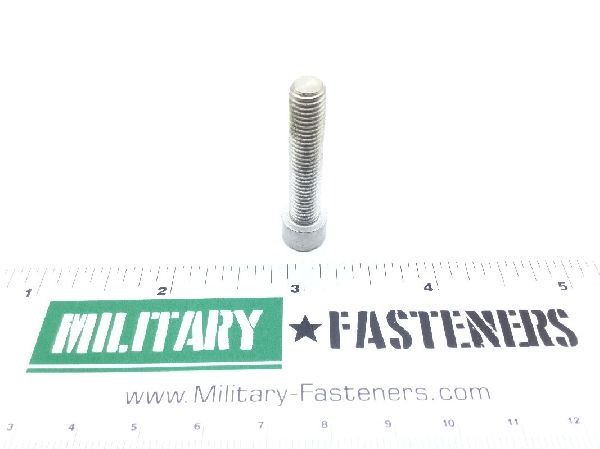

NAS1351N4LE20 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Iron alloy 660 fastener

Surface Treatment

Qq-p-35 federal specification single treatment response fastener

Thread Class

Fastener Length: Between 1.210 inches and 1.250 inches
Head Height: Between 0.244 inches and 0.250 inches
Internal Drive Style: Hexagon
Locking Feature: Patch threads or pellet threads or strip threads
Material Specification: Ams 5731 assn standard single material response fastener or ams 5737 assn standard single material response fastener
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 1.000 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unrf
Width Across Flats: Between 0.187 inches and 0.190 inches
Head Diameter: Between 0.365 inches and 0.375 inches
