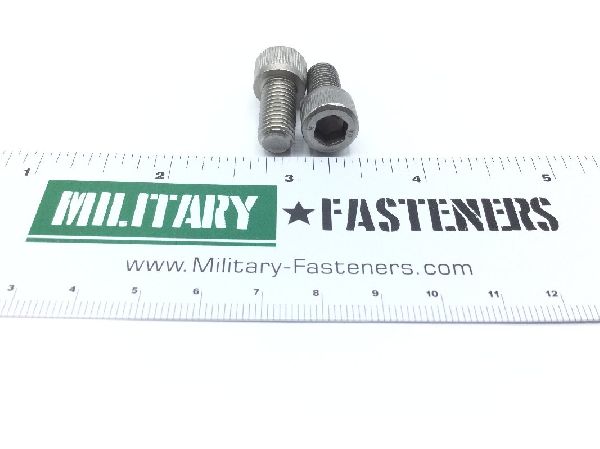

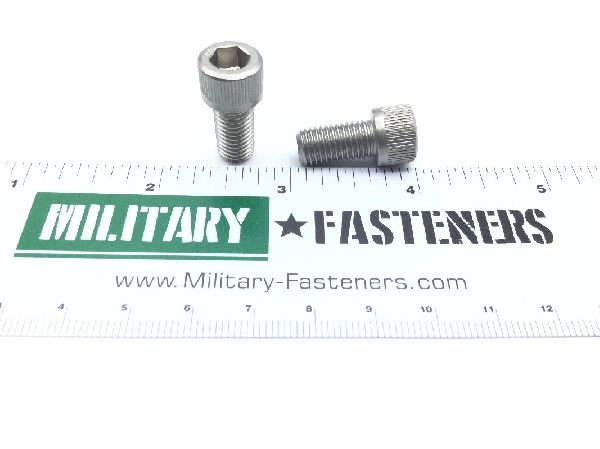

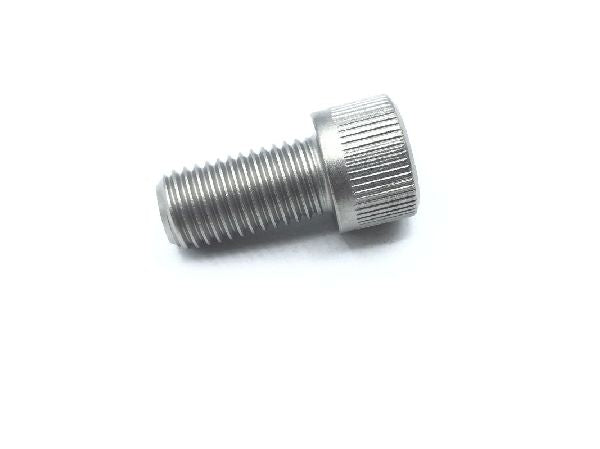

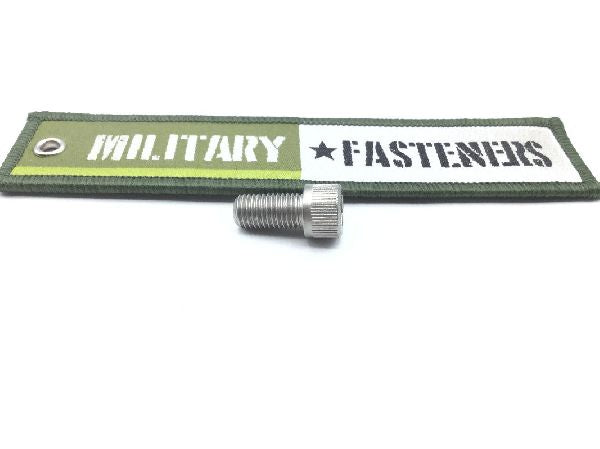

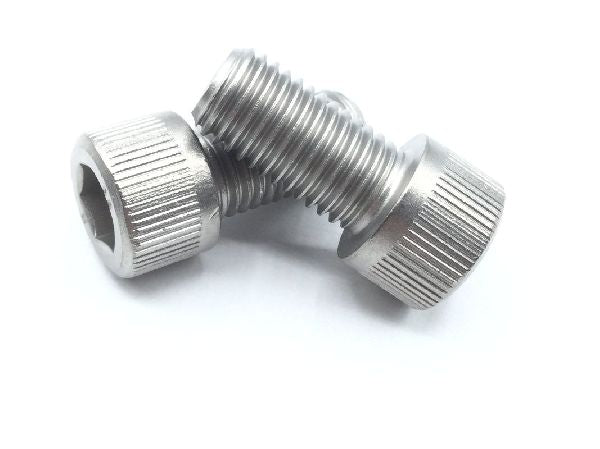

NAS1351N5-10 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.595 inches and 0.625 inches
Head Height: Between 0.306 inches and 0.312 inches
Internal Drive Style: Hexagon
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.542 inches and 0.625 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unrf
Width Across Flats: Between 0.250 inches and 0.253 inches
Head Diameter: Between 0.457 inches and 0.469 inches
