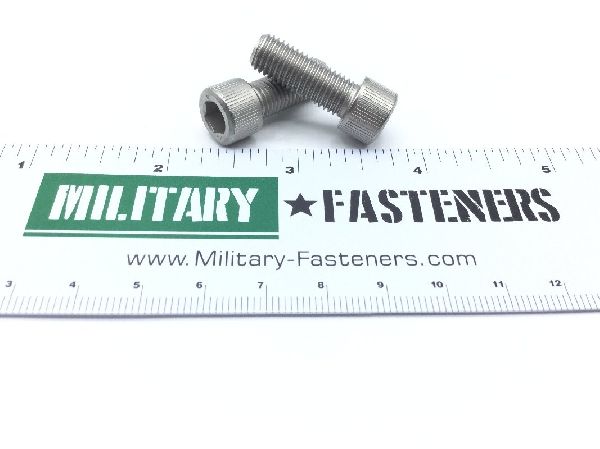

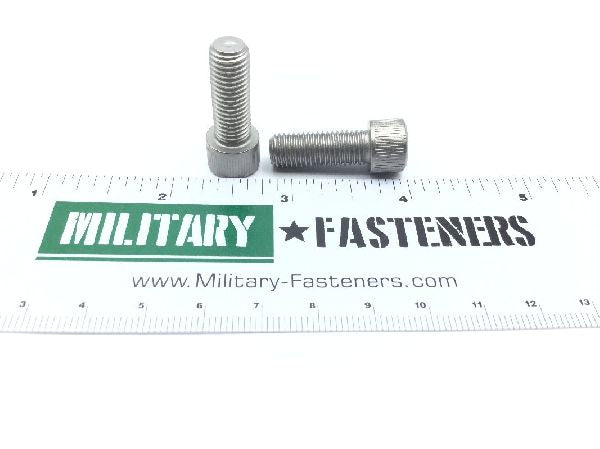

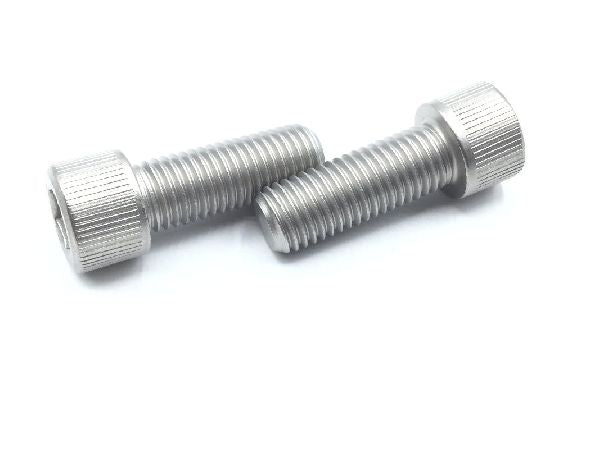

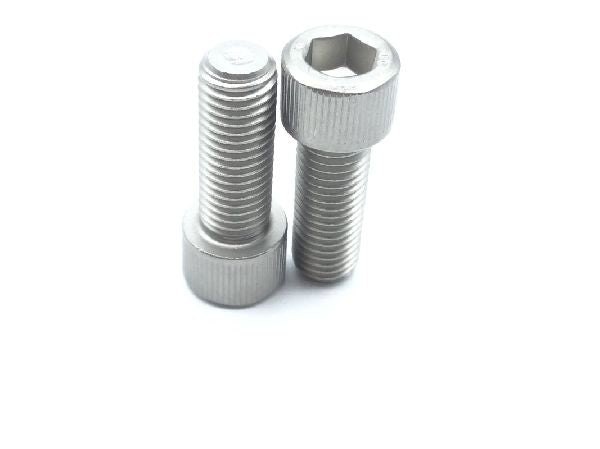

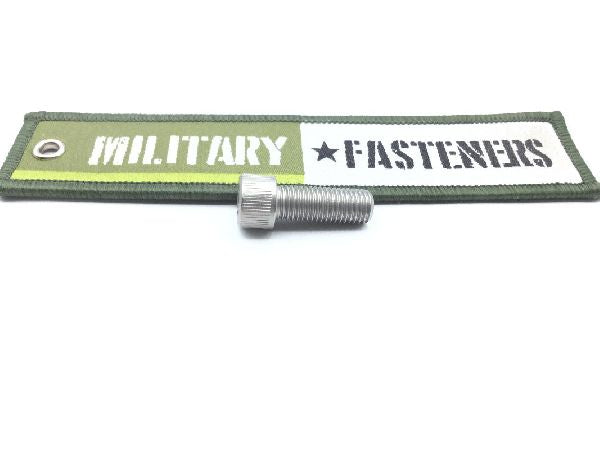

NAS1351N5-14 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan no. 2

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.825 inches and 0.875 inches
Hardness Rating: 33.0 rockwell c and 42.0 rockwell c
Head Height: Between 0.308 inches and 0.312 inches
Internal Drive Style: Hexagon
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 120000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.792 inches and 0.875 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unrf
Width Across Flats: Between 0.250 inches and 0.253 inches
Head Diameter: Between 0.457 inches and 0.469 inches
