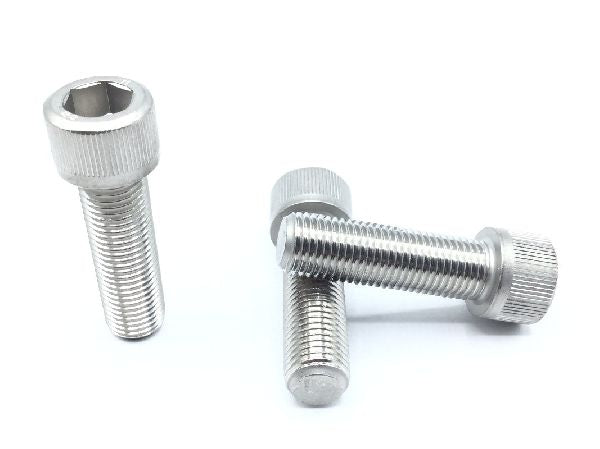

NAS1351N6-20 Socket Head Cap Screw

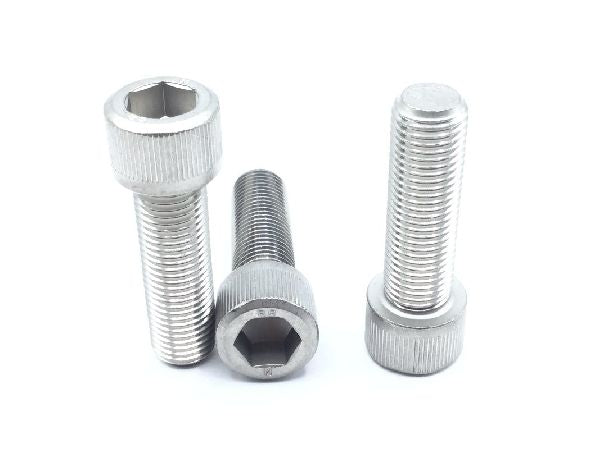

NAS1351N6-20 Socket Head Cap Screw (2)

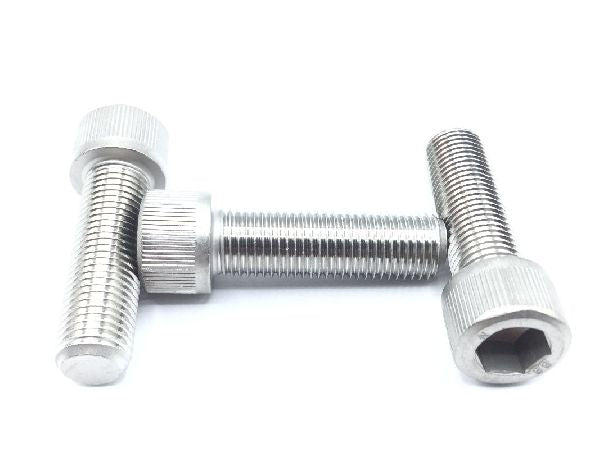

NAS1351N6-20 Socket Head Cap Screw (3)

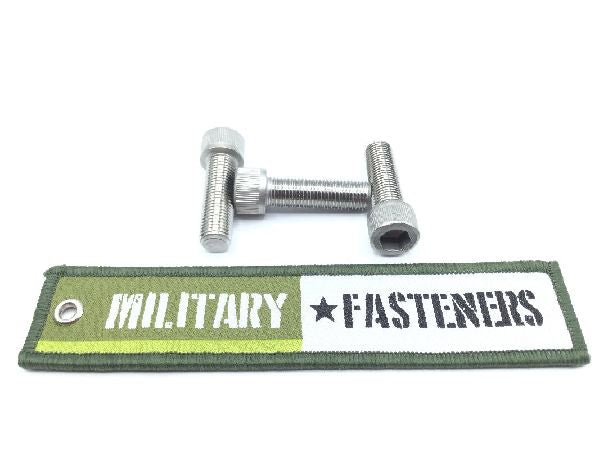

NAS1351N6-20 Socket Head Cap Screw (4)

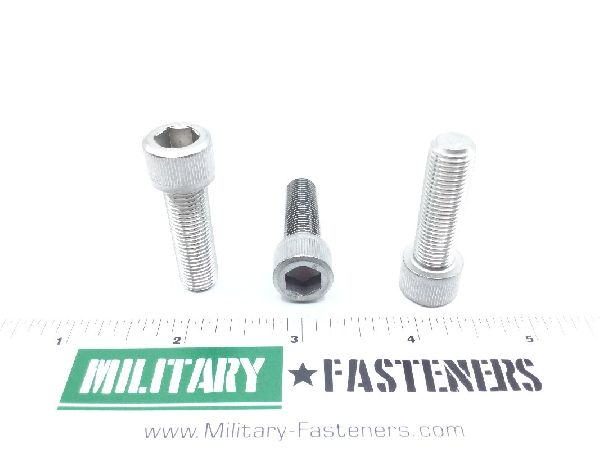

NAS1351N6-20 Socket Head Cap Screw (5)

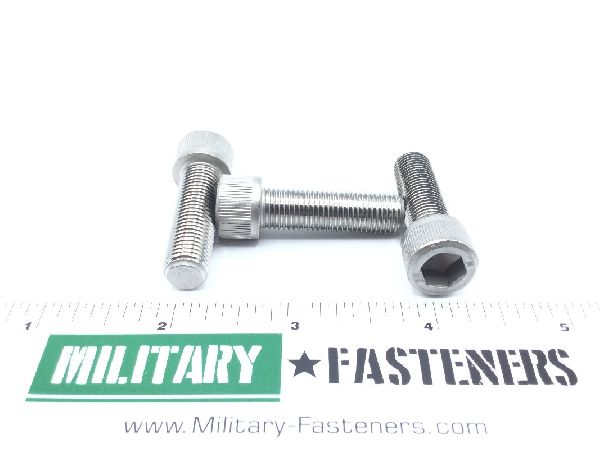

NAS1351N6-20 Socket Head Cap Screw (6)
NAS1351N6-20 Socket Head Cap Screw
NAS1351N6-20 Socket Head Cap Screw (2)
NAS1351N6-20 Socket Head Cap Screw (3)
NAS1351N6-20 Socket Head Cap Screw (4)
NAS1351N6-20 Socket Head Cap Screw (5)
NAS1351N6-20 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1351N6-20 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat chamfer
Material
Iron alloy 660
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3a
Fastener Length
Between 1.210 inches and 1.250 inches
Hardness Rating
33.0 rockwell c and 42.0 rockwell c
Head Height
Between 0.368 inches and 0.375 inches
Internal Drive Style
Hexagon
Material Specification
Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi)
160000 pounds per square inch
Specification Data
80205-nas1531 professional/industrial association standard
Thread Diameter
0.375 inches
Thread Direction
Right-hand
Thread Length
1.250 inches
Thread Qty Per Inch (tpi)
24
Thread Series Designator
Unrf
Width Across Flats
Between 0.3125 inches and 0.3160 inches
Head Diameter
Between 0.550 inches and 0.562 inches
