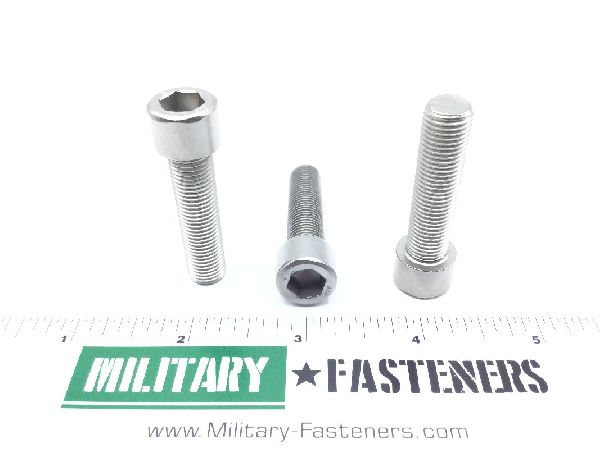

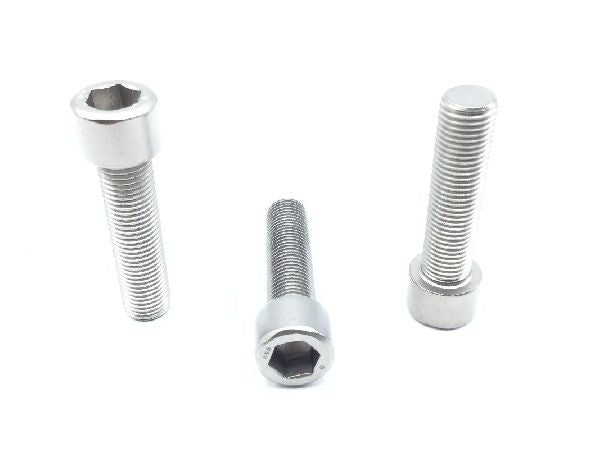

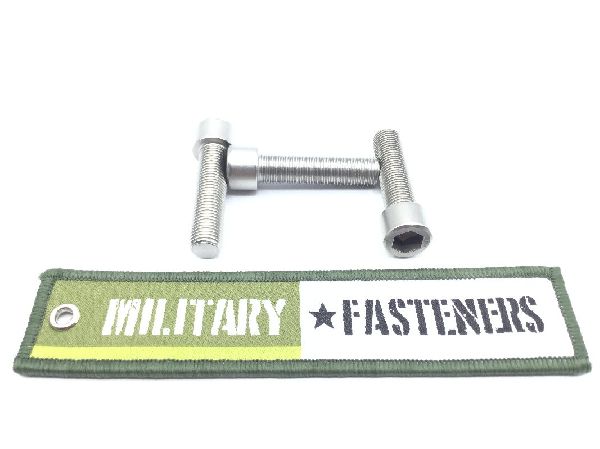

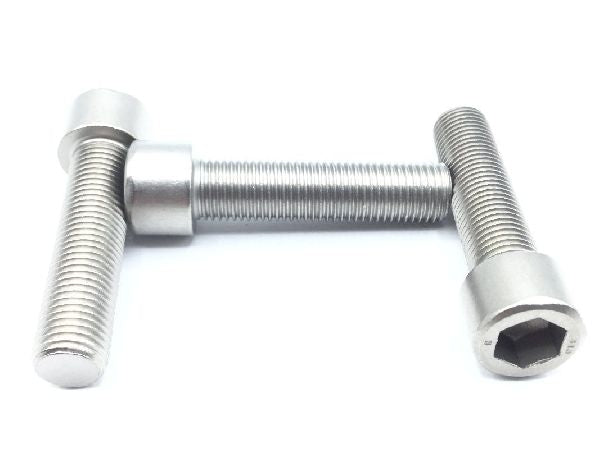

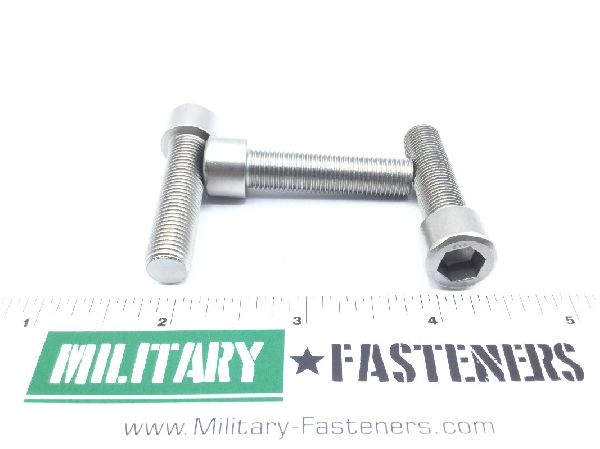

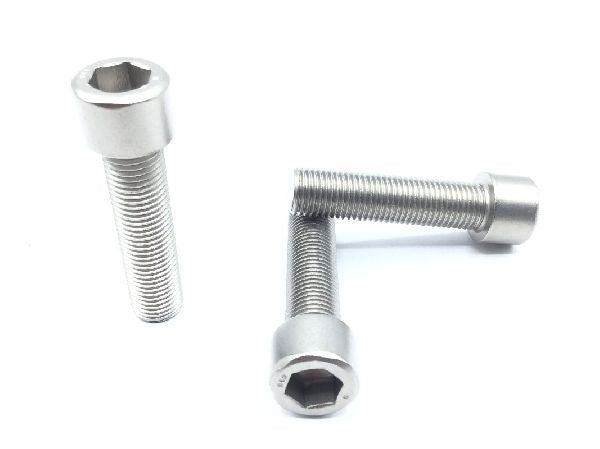

NAS1351N6-24 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Chamfer Angle: Between 30.0 degrees and 45.0 degrees
Fastener Length: Between 1.460 inches and 1.500 inches
Head Height: Between 0.368 inches and 0.375 inches
Internal Drive Style: Hexagon
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 1.250 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unrf
Width Across Flats: Between 0.3125 inches and 0.3160 inches
Head Diameter: Between 0.550 inches and 0.562 inches
