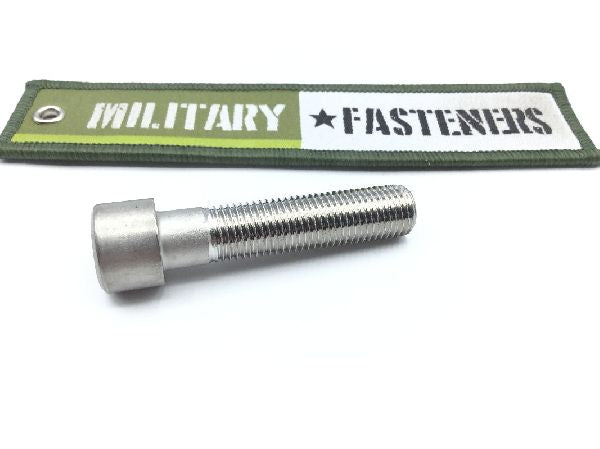

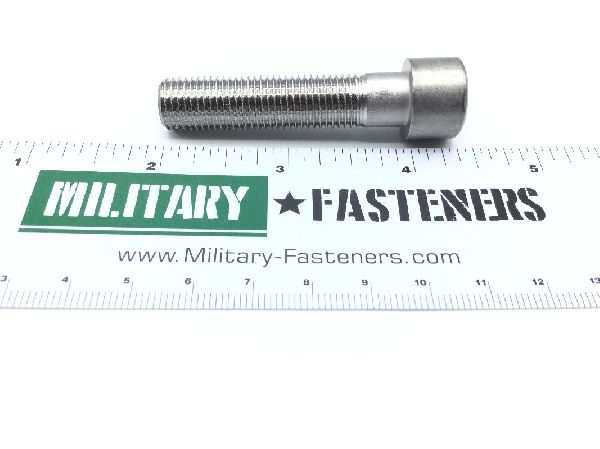

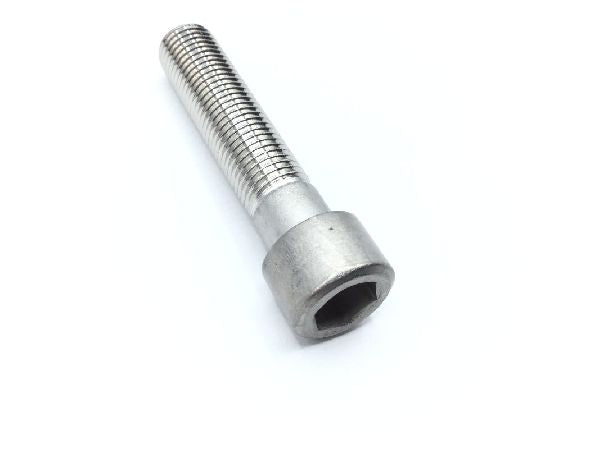

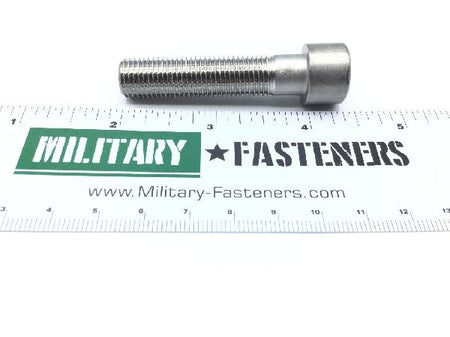

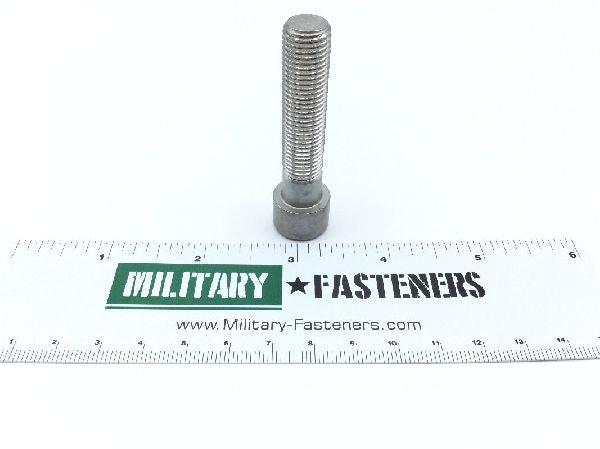

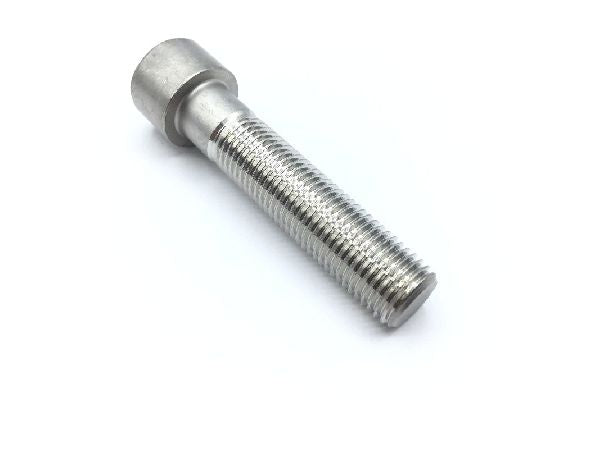

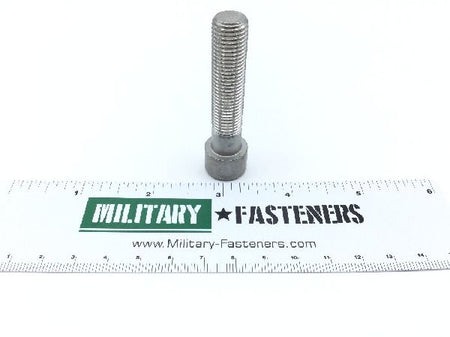

NAS1351N7-32 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $53.98

Units per Pack 1

Price per Pack $53.98

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $53.98

Add item to quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 1.940 inches and 2.000 inches
Hardness Rating: 33.0 rockwell c and 42.0 rockwell c
Head Height: Between 0.430 inches and 0.437 inches
Iii Part Name Assigned By Controlling Agency: Navy special project
Internal Drive Style: Hexagon
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1351 professional/industrial association standard
Thread Diameter: 0.483 inches
Thread Direction: Right-hand
Thread Length: 1.375 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unrf
Width Across Flats: Between 0.375 inches and 0.379 inches
Head Diameter: Between 0.642 inches and 0.656 inches
