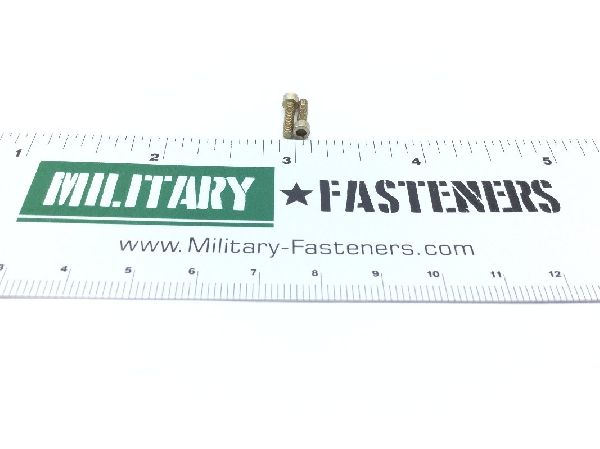

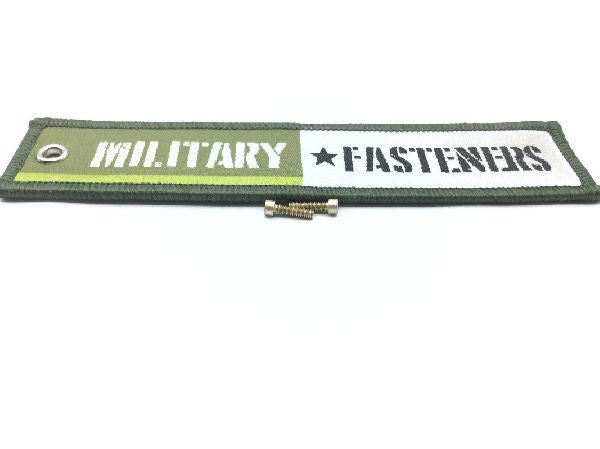

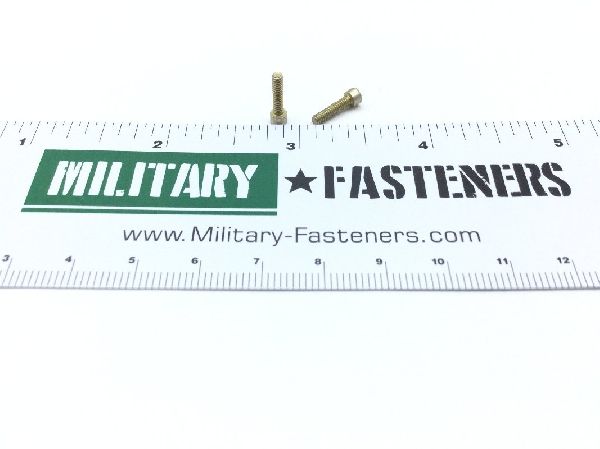

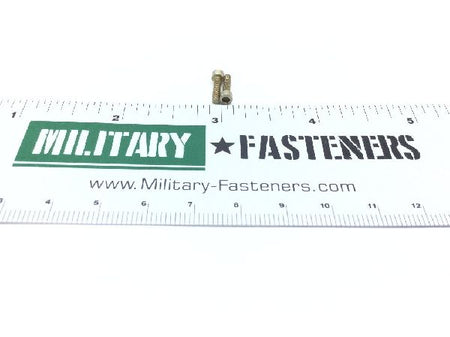

NAS1352-02-6P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Cl3 federal specification single treatment response ty2 qq-p-416

Thread Class

Fastener Length: Between 0.359 inches and 0.391 inches
Hardness Rating: 38.0 rockwell c and 44.0 rockwell c
Head Height: Between 0.083 inches and 0.086 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.359 inches and 0.391 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.0781 inches and 0.0791 inches
Head Diameter: Between 0.134 inches and 0.140 inches
