Home » NAS1352-02-8P Socket Head Cap Screw

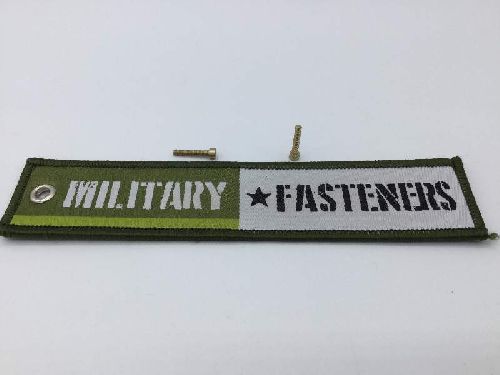

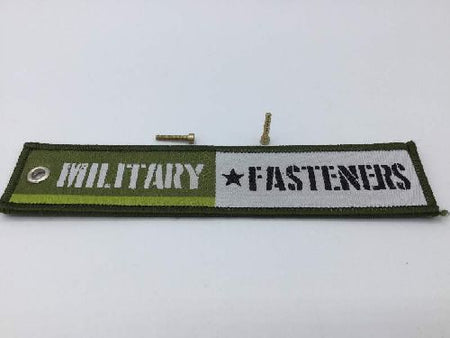

NAS1352-02-8P Socket Head Cap Screw

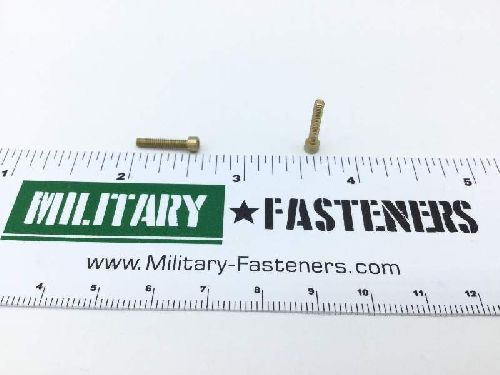

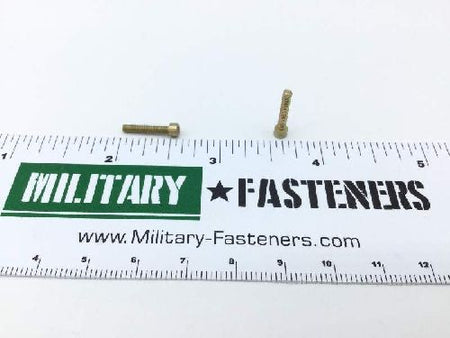

NAS1352-02-8P Socket Head Cap Screw (2)

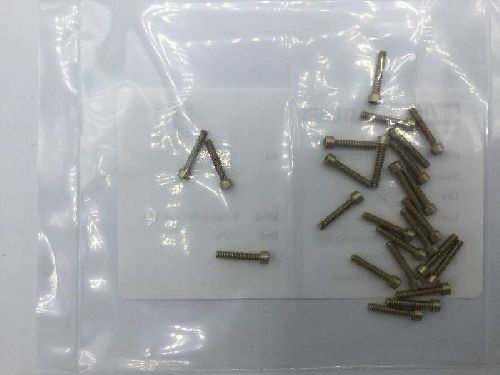

NAS1352-02-8P Socket Head Cap Screw (3)
NAS1352-02-8P Socket Head Cap Screw
NAS1352-02-8P Socket Head Cap Screw (2)
NAS1352-02-8P Socket Head Cap Screw (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352-02-8P Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $2.52
Units per Pack 20
Price per Pack $50.40
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $50.40
Add item to quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Class
3a
Fastener Length
Between 0.470 inches and 0.500 inches
Hardness Rating
38.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.083 inches and 0.086 inches
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
180000 pounds per square inch
Minimum Yield Strength
155000 pounds per square inch
Specification Data
80205-nas1351 professional/industrial association standard
Thread Diameter
0.086 inches
Thread Direction
Right-hand
Thread Length
Between 0.434 inches and 0.500 inches
Thread Qty Per Inch (tpi)
56
Thread Series Designator
Unrc
Width Across Flats
Between 0.078 inches and 0.079 inches
Head Diameter
Between 0.134 inches and 0.140 inches
