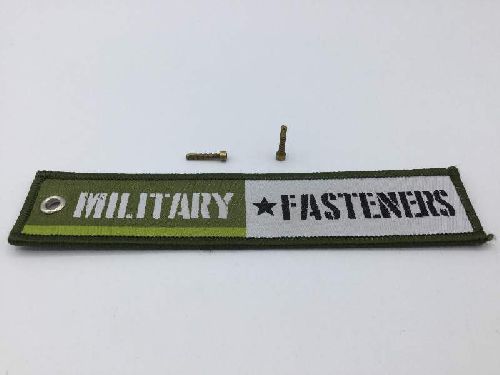

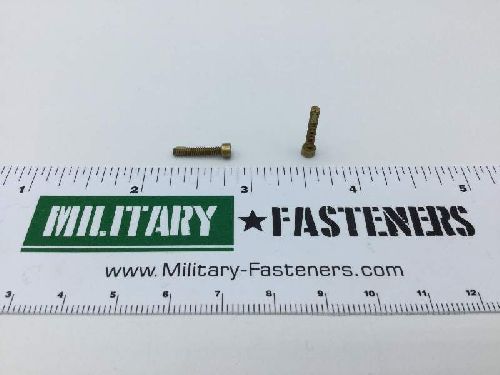

NAS1352-02LL8P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel fastener

Surface Treatment

Type 2 class 2 federal specification single treatment response fastener qq-p-416

Thread Class

Fastener Length: Between 0.484 inches and 0.516 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.083 inches and 0.086 inches
Internal Drive Style: Hexagon
Locking Feature: Strip threads
Min. Tensile Strength (psi): 180000 pounds per square inch
Minimum Yield Strength: 155000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.448 inches and 0.516 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unrc
Width Across Flats: Between 0.078 inches and 0.079 inches
Head Diameter: Between 0.134 inches and 0.140 inches
