NAS1352-04-14P Socket Head Cap Screw
NAS1352-04-14P Socket Head Cap Screw (2)
NAS1352-04-14P Socket Head Cap Screw (3)
NAS1352-04-14P Socket Head Cap Screw (4)
NAS1352-04-14P Socket Head Cap Screw (5)
NAS1352-04-14P Socket Head Cap Screw (6)

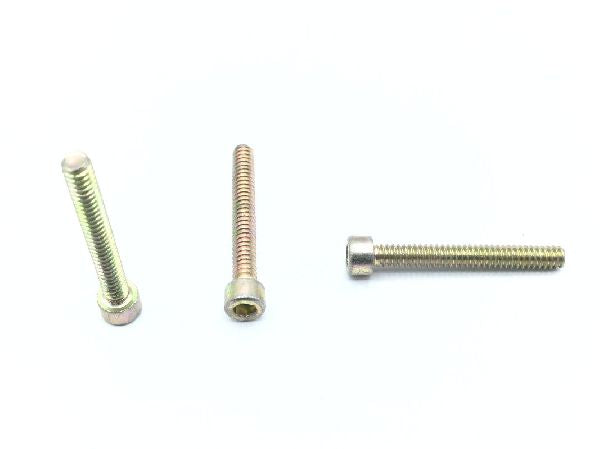

NAS1352-04-14P Socket Head Cap Screw

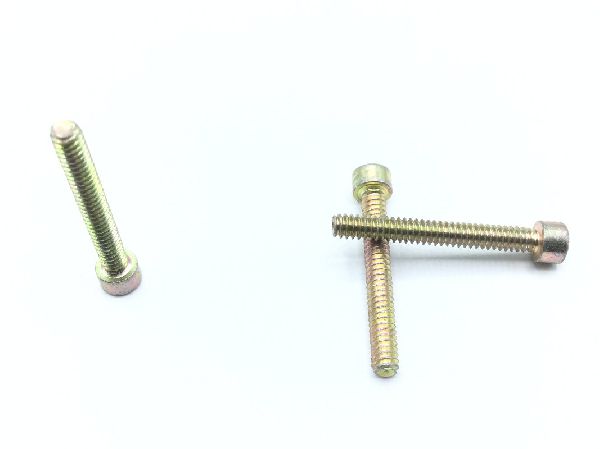

NAS1352-04-14P Socket Head Cap Screw (2)

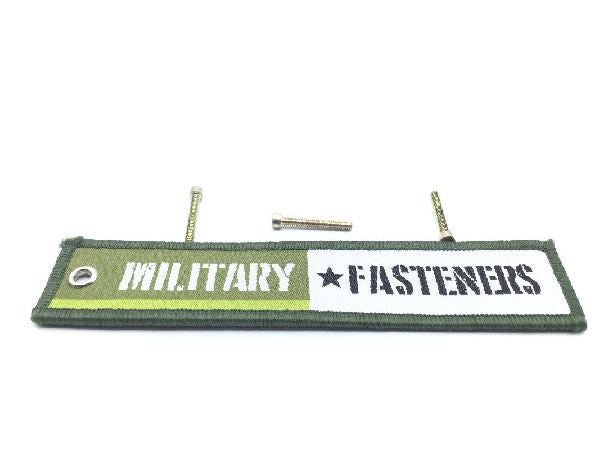

NAS1352-04-14P Socket Head Cap Screw (3)

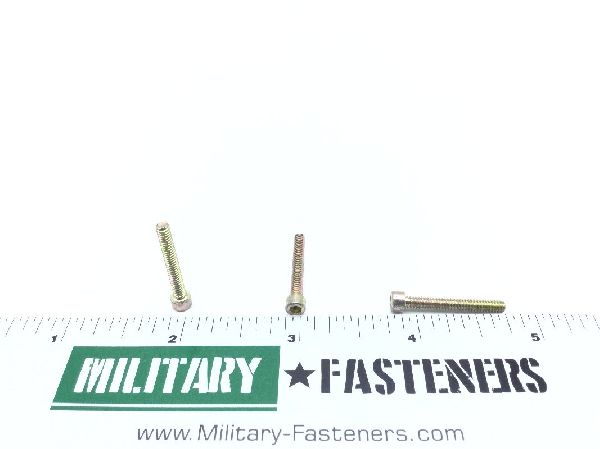

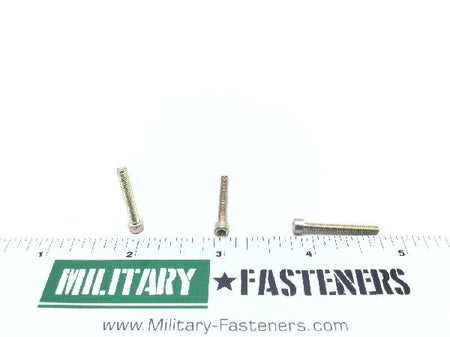

NAS1352-04-14P Socket Head Cap Screw (4)
NAS1352-04-14P Socket Head Cap Screw (5)

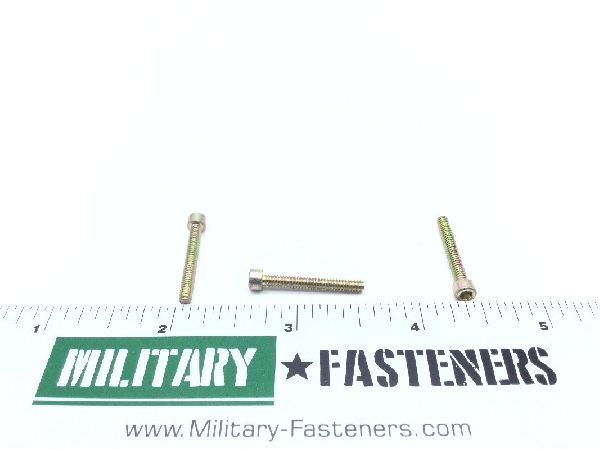

NAS1352-04-14P Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352-04-14P Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $0.90
Units per Pack 50
Price per Pack $45.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $45.00
Add item to quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Class 3 federal specification single treatment response type 2 qq-p-416
Thread Class
3a
Fastener Length
Between 0.859 inches and 0.891 inches
Hardness Rating
38.0 rockwell and 45.0 rockwell
Head Height
Between 0.108 inches and 0.112 inches
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
180000 pounds per square inch
Minimum Yield Strength
155000 pounds per square inch
Specification Data
80205-nas1352 professional/industrial association standard
Thread Diameter
0.112 inches
Thread Direction
Right-hand
Thread Length
0.75 inches
Thread Qty Per Inch (tpi)
40
Thread Series Designator
Unrc
Width Across Flats
Between 0.094 inches and 0.095 inches
Head Diameter
Between 0.176 inches and 0.183 inches
