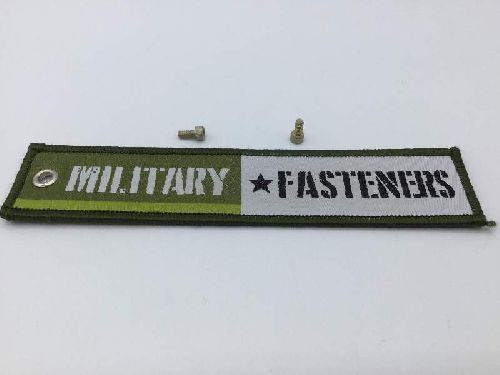

NAS1352-04-4P Socket Head Cap Screw

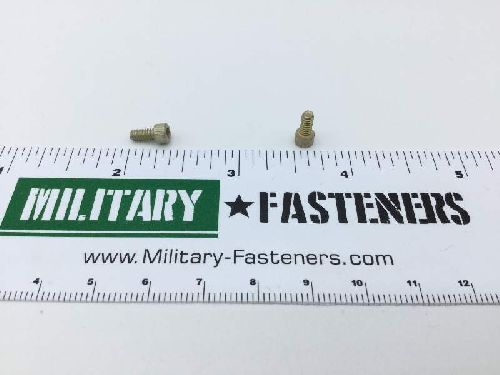

NAS1352-04-4P Socket Head Cap Screw (2)
NAS1352-04-4P Socket Head Cap Screw
NAS1352-04-4P Socket Head Cap Screw (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352-04-4P Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $0.68
Units per Pack 50
Price per Pack $34.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $34.00
Add item to quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Qq-p-416 type 2 class 3 federal specification single treatment response
Thread Class
3a
Fastener Length
0.25 inches
Hardness Rating
36.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.108 inches and 0.112 inches
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
160000 pounds per square inch
Minimum Yield Strength
130000 pounds per square inch
Specification Data
80205-nas1352 professional/industrial association standard
Thread Diameter
0.112 inches
Thread Direction
Right-hand
Thread Length
0.250 inches
Thread Qty Per Inch (tpi)
40
Thread Series Designator
Unc (coarse thread)
Width Across Flats
Between 0.093 inches and 0.095 inches
Head Diameter
Between 0.176 inches and 0.183 inches
