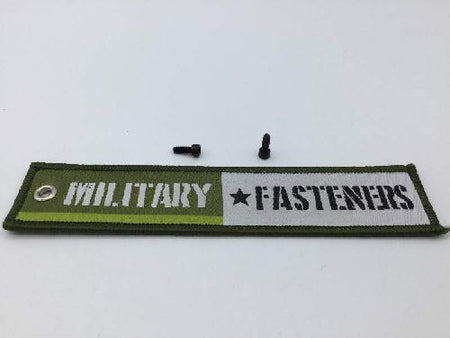

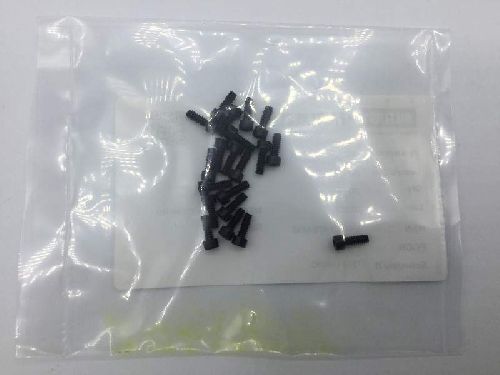

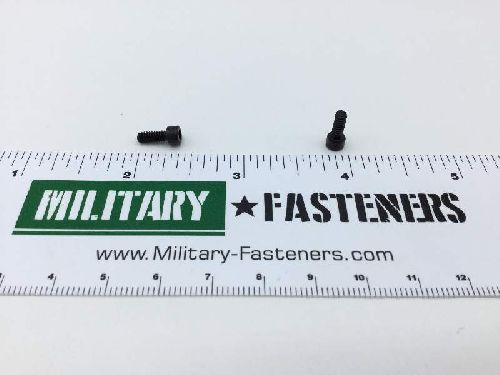

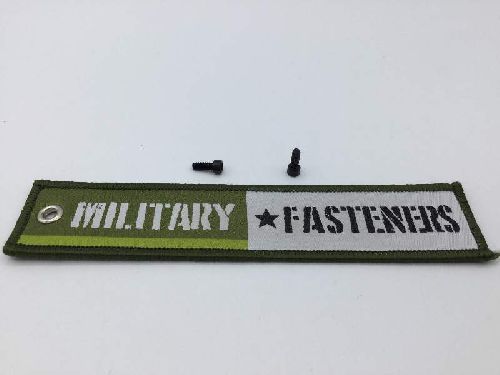

NAS1352-04-5 Socket Head Cap Screw
NAS1352-04-5 Socket Head Cap Screw (2)
NAS1352-04-5 Socket Head Cap Screw (3)
NAS1352-04-5 Socket Head Cap Screw
NAS1352-04-5 Socket Head Cap Screw (2)
NAS1352-04-5 Socket Head Cap Screw (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352-04-5 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $1.99
Units per Pack 20
Price per Pack $39.80
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $39.80
Add item to quote
Head Style
Flat chamfer
Material
Steel
Thread Class
3a
Fastener Length
Between 0.4205 inches and 0.4245 inches
Hardness Rating
36.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.108 inches and 0.112 inches
Internal Drive Style
Hexagon
Material Specification
Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Thread Diameter
0.112 inches
Thread Direction
Right-hand
Thread Length
0.3125 inches
Thread Qty Per Inch (tpi)
40
Thread Series Designator
Unjc
Width Across Flats
0.094 inches
Head Diameter
Between 0.176 inches and 0.183 inches
