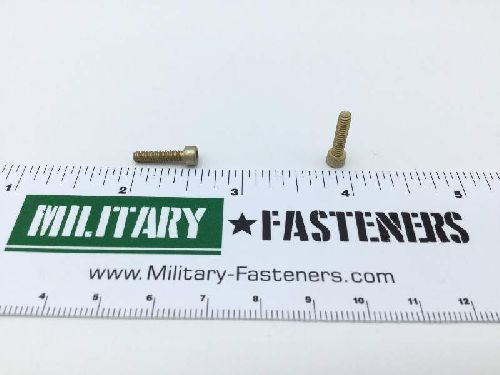

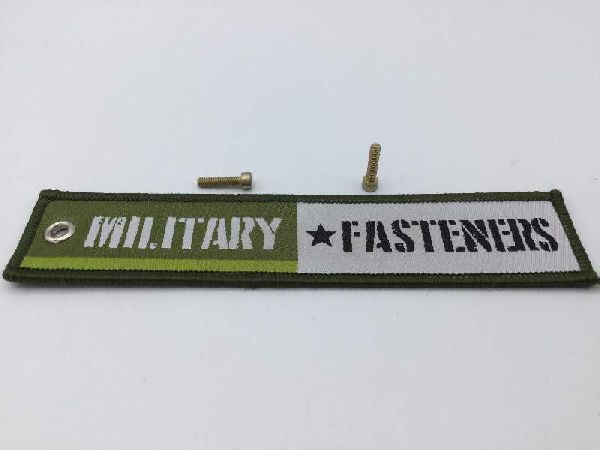

NAS1352-04-8P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.84

Units per Pack 50

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Departure From Cited Designator: As modified by head data
Fastener Length: 0.500 inches
Hardness Rating: 36.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.108 inches and 0.112 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 2
Hole Type: Drilled
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: 0.500 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.093 inches and 0.095 inches
Head Diameter: Between 0.176 inches and 0.183 inches
Hole Diameter: 0.031 inches
