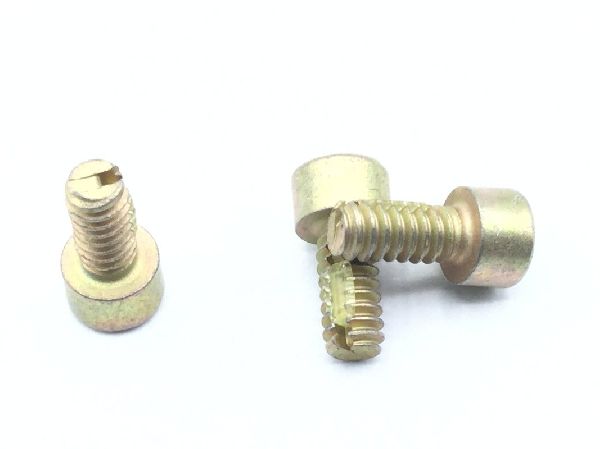

NAS1352-04LL4P Socket Head Cap Screw
NAS1352-04LL4P Socket Head Cap Screw (2)
NAS1352-04LL4P Socket Head Cap Screw (3)

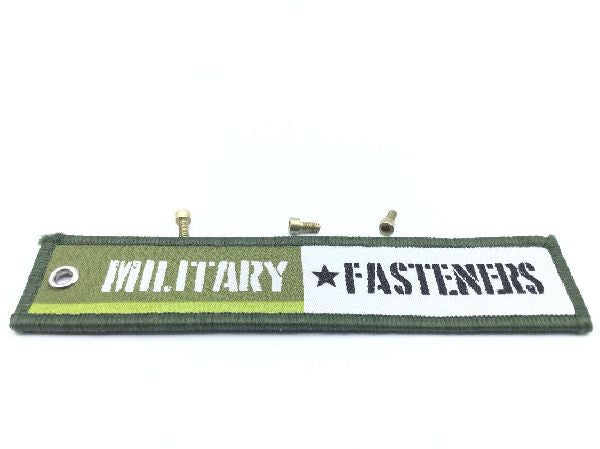

NAS1352-04LL4P Socket Head Cap Screw (4)

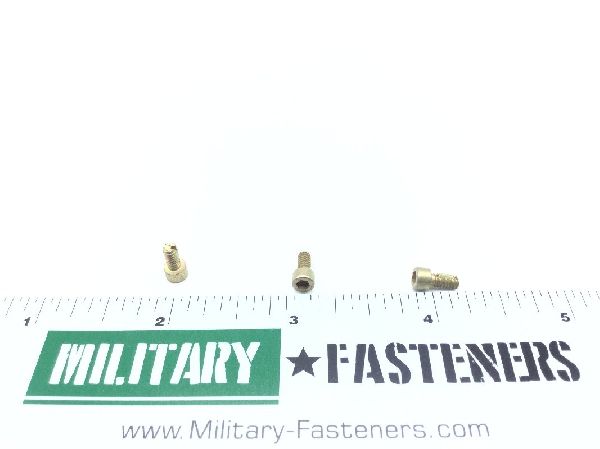

NAS1352-04LL4P Socket Head Cap Screw (5)

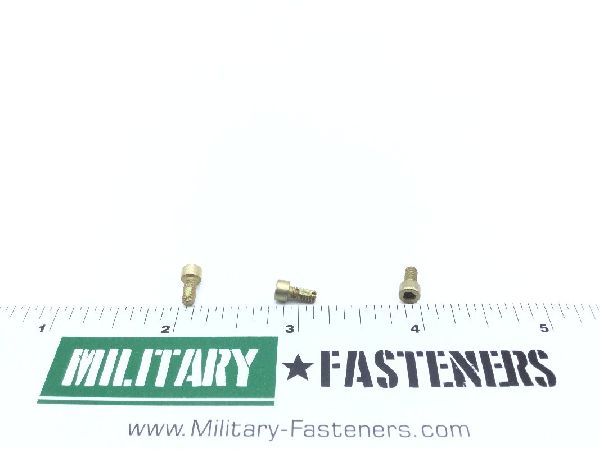

NAS1352-04LL4P Socket Head Cap Screw (6)
NAS1352-04LL4P Socket Head Cap Screw
NAS1352-04LL4P Socket Head Cap Screw (2)
NAS1352-04LL4P Socket Head Cap Screw (3)
NAS1352-04LL4P Socket Head Cap Screw (4)
NAS1352-04LL4P Socket Head Cap Screw (5)
NAS1352-04LL4P Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352-04LL4P Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $8.93
Units per Pack 5
Price per Pack $44.65
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:
Total Packs 1
Total Price $44.65
Add item to quote
Head Style
Flat chamfer
Material
Plastic polyamide locking feature
Surface Treatment
Type 2 class 2 federal specification single treatment response fastener qq-p-416
Thread Class
3a
Fastener Length
Between 0.234 inches and 0.266 inches
Hardness Rating
38.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.108 inches and 0.112 inches
Internal Drive Style
Hexagon
Locking Feature
Patch threads or pellet threads or strip threads
Min. Tensile Strength (psi)
180000 pounds per square inch
Minimum Yield Strength
155000 pounds per square inch
Specification Data
80205-nas1352 professional/industrial association standard
Thread Diameter
0.112 inches
Thread Direction
Right-hand
Thread Length
Between 0.216 inches and 0.266 inches
Thread Qty Per Inch (tpi)
40
Thread Series Designator
Unrc
Width Across Flats
Between 0.094 inches and 0.095 inches
Head Diameter
Between 0.176 inches and 0.183 inches
