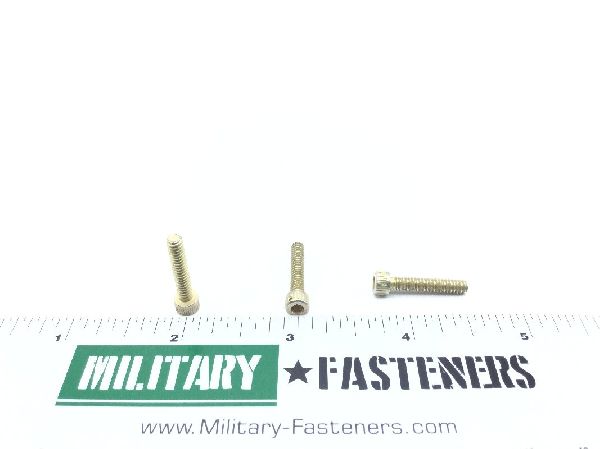

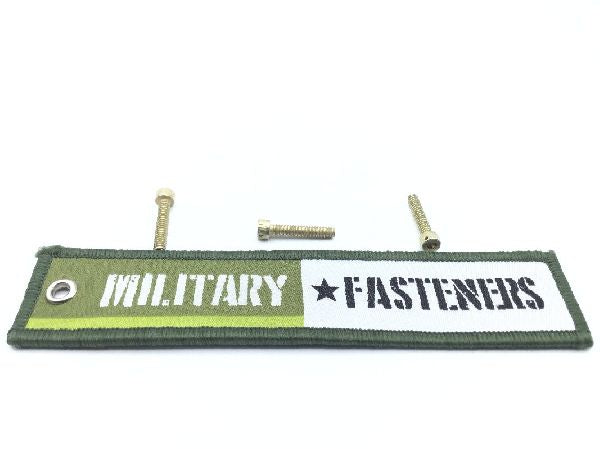

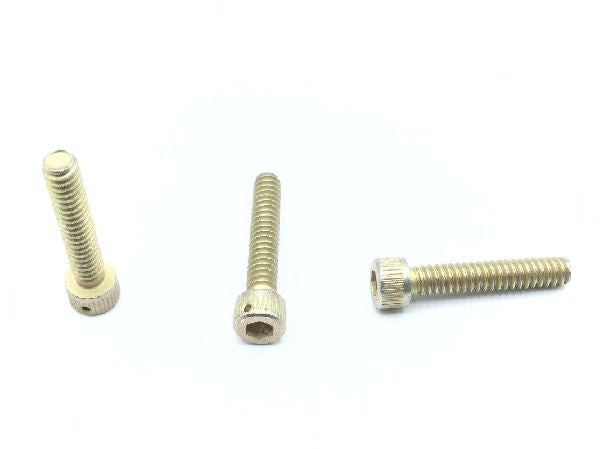

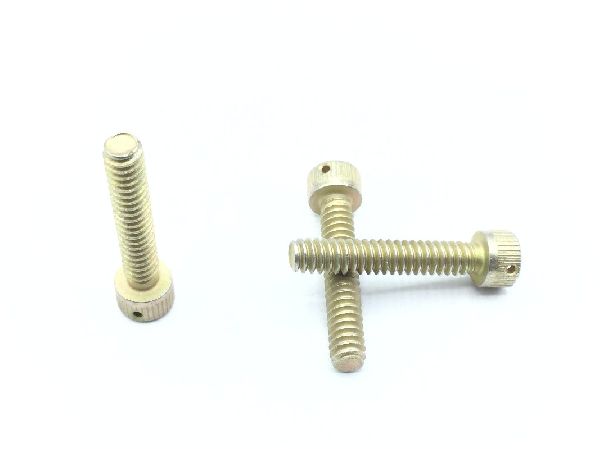

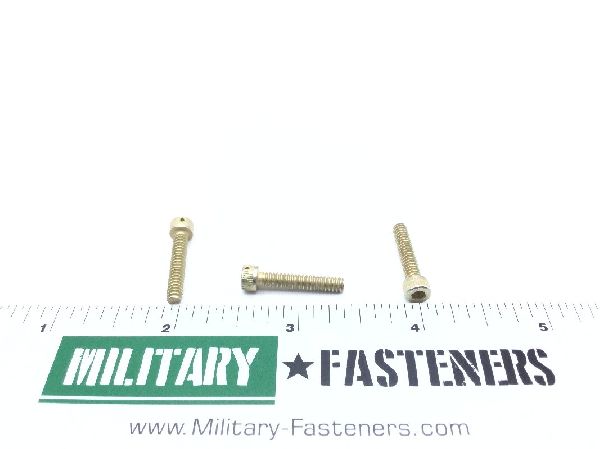

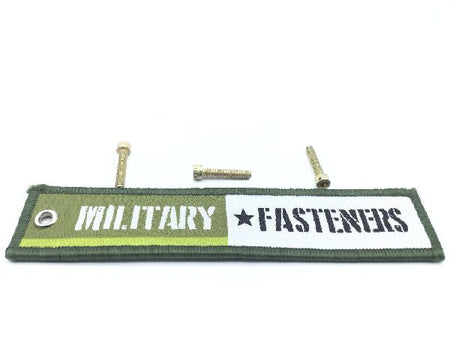

NAS1352-06H12P Socket Head Cap Screw
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 0.734 inches and 0.766 inches
- Hardness Rating
- 38.0 rockwell c and 45.0 rockwell c
- Head Height
- Between 0.134 inches and 0.138 inches
- Hole Configuration Style
- Round
- Hole Quantity
- 2
- Hole Type
- Drilled
- Internal Drive Style
- Hexagon
- Material Specification
- 66 federal standard single material response
- Min. Tensile Strength (psi)
- 180000 pounds per square inch
- Minimum Yield Strength
- 155000 pounds per square inch
- Nondefinitive Specification/std Data
- 6 type
- Specification Data
- 80205-nas1352 professional/industrial association standard
- Thread Diameter
- 0.138 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.672 inches and 0.766 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unrc
- Width Across Flats
- Between 0.1094 inches and 0.1111 inches
- Head Diameter
- Between 0.218 inches and 0.226 inches
- Hole Diameter
- 0.036 inches
