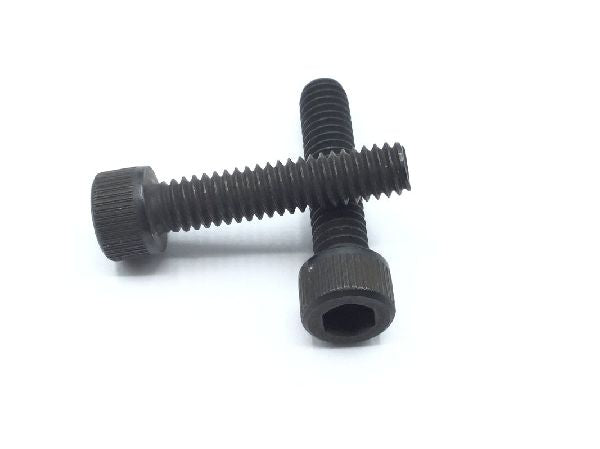

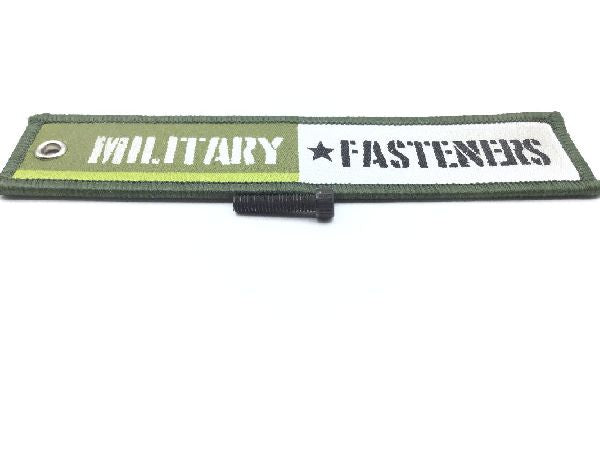

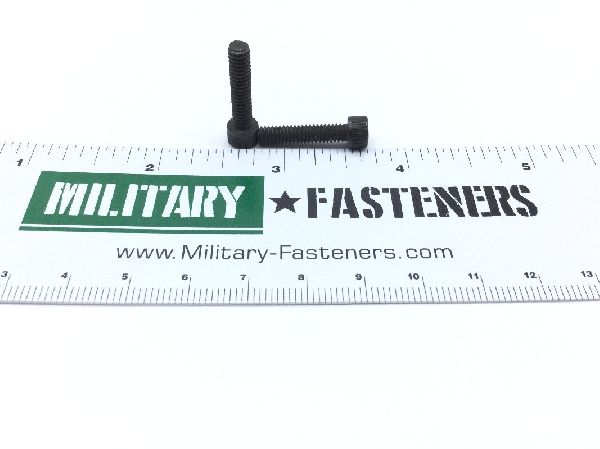

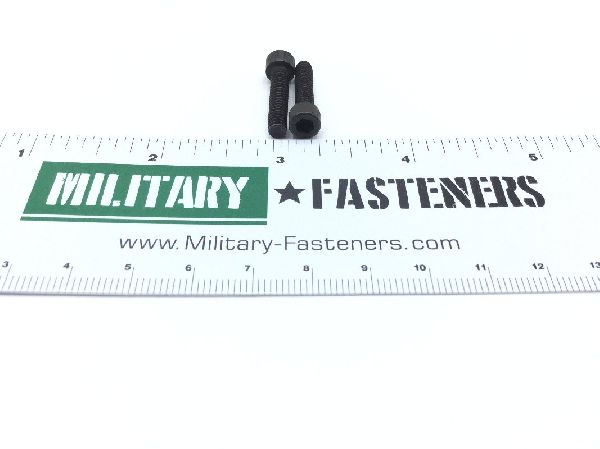

NAS1352-08-12 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Head Style

Flat chamfer

Thread Class

Fastener Length: Between 0.720 inches and 0.750 inches
Hardness Rating: Between 39.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.159 inches and 0.164 inches
Internal Drive Style: Err-090
Min. Tensile Strength (psi): 180000 pounds per square inch
Screw Material: Steel uns k03104
Screw Material Specification: Astm a574 assn standard single material response
Screw Surface Treatment: Oxide
Screw Surface Treatment Specification: Mil-c-13924 cl 1 military specification single treatment response
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.750 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unrc
Width Between Flats: Between 0.1406 inches and 0.1426 inches
Head Diameter: Between 0.262 inches and 0.270 inches
