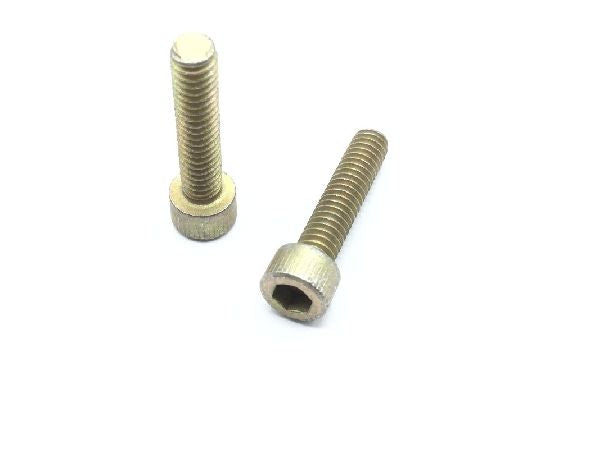

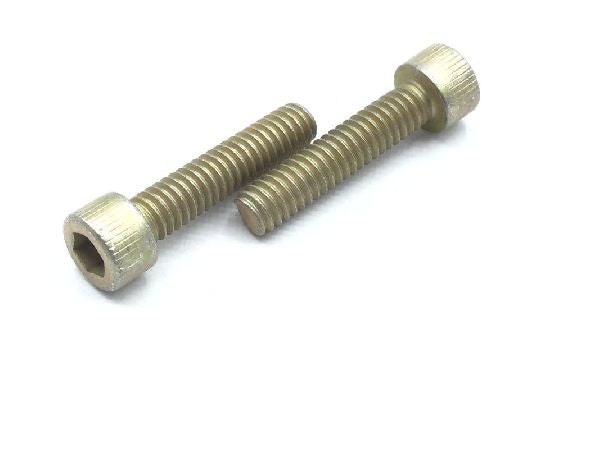

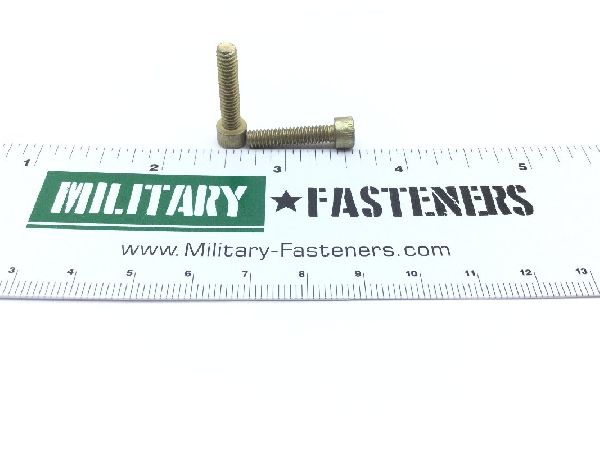

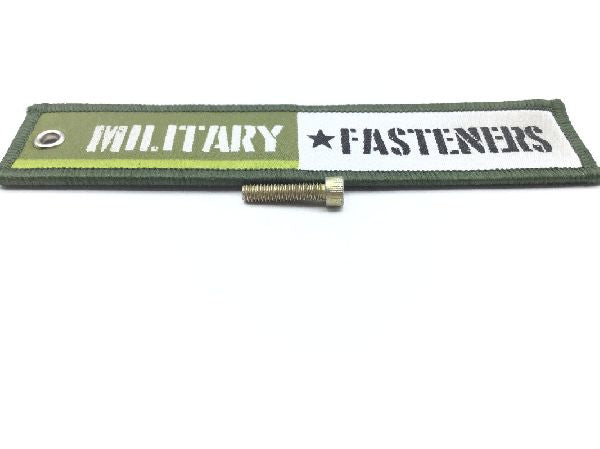

NAS1352-08-12P Socket Head Cap Screw
NAS1352-08-12P Socket Head Cap Screw (2)
NAS1352-08-12P Socket Head Cap Screw (3)
NAS1352-08-12P Socket Head Cap Screw (4)
NAS1352-08-12P Socket Head Cap Screw
NAS1352-08-12P Socket Head Cap Screw (2)
NAS1352-08-12P Socket Head Cap Screw (3)
NAS1352-08-12P Socket Head Cap Screw (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352-08-12P Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $0.97
Units per Pack 50
Price per Pack $48.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $48.50
Add item to quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Class 3 federal specification single treatment response type 2 qq-p-416
Thread Class
3a
Fastener Length
Between 0.734 inches and 0.766 inches
Hardness Rating
36.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.159 inches and 0.164 inches
Internal Drive Style
Hexagon
Material Specification
66 federal standard single material response
Min. Tensile Strength (psi)
160000 pounds per square inch
Minimum Yield Strength
130000 pounds per square inch
Specification Data
80205-nas1352 professional/industrial association standard
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
Between 0.672 inches and 0.734 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Width Across Flats
Between 0.140 inches and 0.142 inches
Head Diameter
Between 0.262 inches and 0.27 inches
