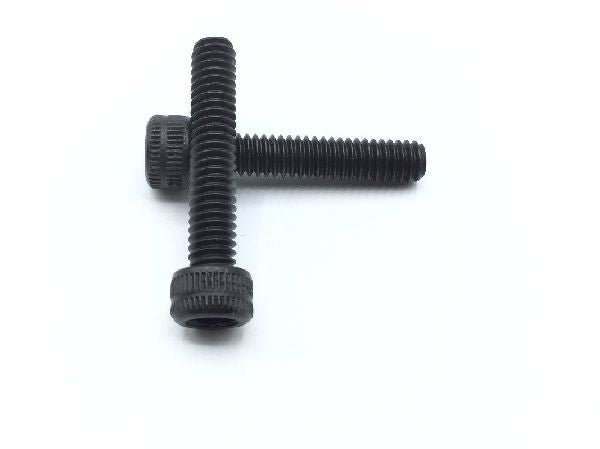

NAS1352-08-14 Socket Head Cap Screw (3)

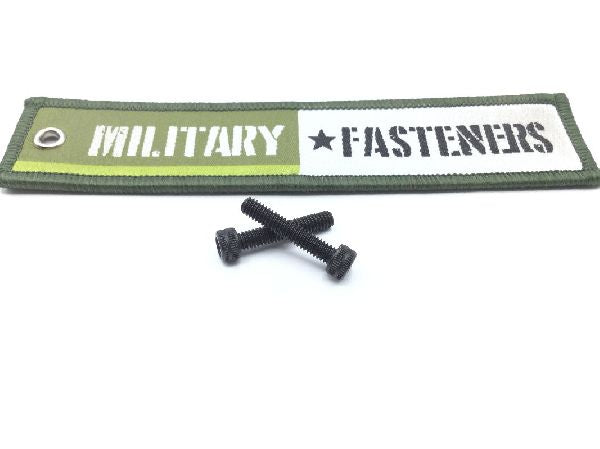

NAS1352-08-14 Socket Head Cap Screw (4)

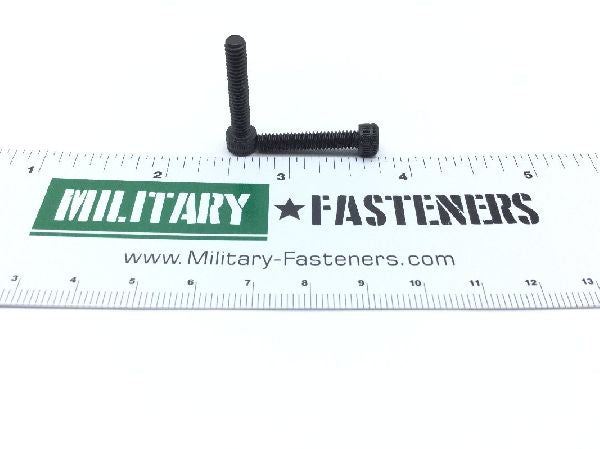

NAS1352-08-14 Socket Head Cap Screw (5)

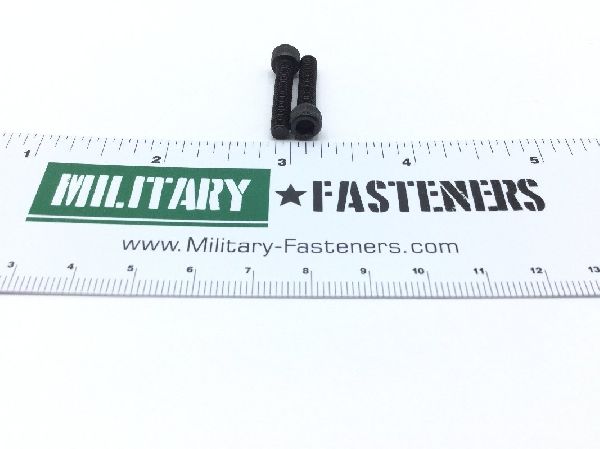

NAS1352-08-14 Socket Head Cap Screw (6)
NAS1352-08-14 Socket Head Cap Screw
NAS1352-08-14 Socket Head Cap Screw (2)
NAS1352-08-14 Socket Head Cap Screw (3)
NAS1352-08-14 Socket Head Cap Screw (4)
NAS1352-08-14 Socket Head Cap Screw (5)
NAS1352-08-14 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352-08-14 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $2.43
Units per Pack 20
Price per Pack $48.60
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $48.60
Add item to quote
Head Style
Flat chamfer
Material
Steel
Thread Class
3a
Fastener Length
Between 1.034 inches and 1.039 inches
Head Height
Between 0.159 inches and 0.164 inches
Internal Drive Style
Hexagon
Material Specification
Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
0.875 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unrc
Width Across Flats
Between 0.141 inches and 0.143 inches
Head Diameter
Between 0.262 inches and 0.270 inches
