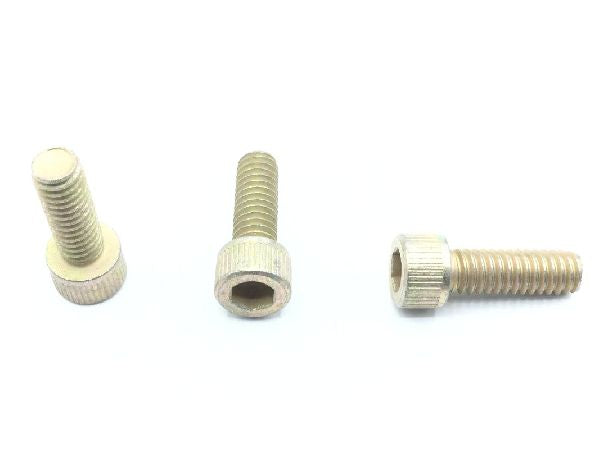

NAS1352-08-8P Socket Head Cap Screw

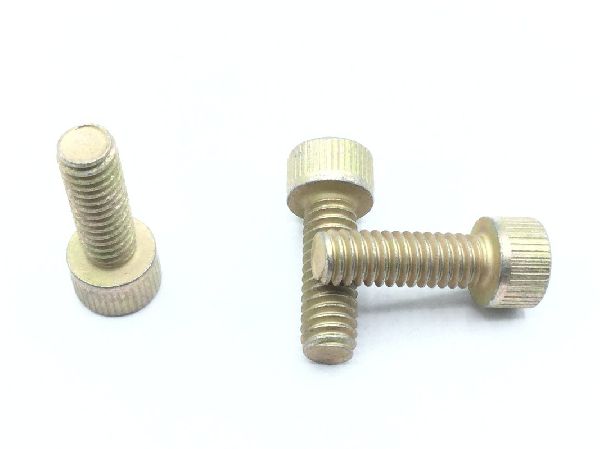

NAS1352-08-8P Socket Head Cap Screw (2)
NAS1352-08-8P Socket Head Cap Screw (3)

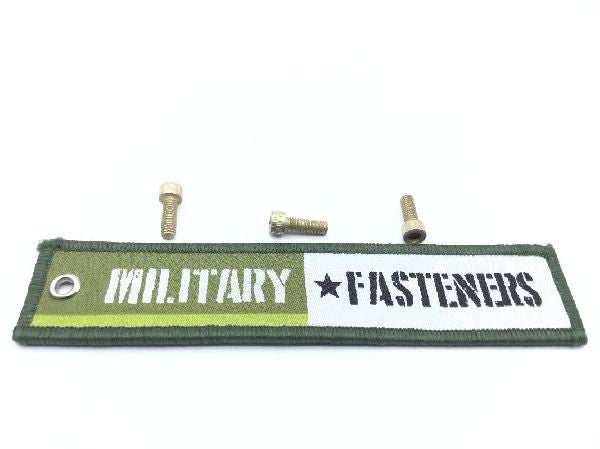

NAS1352-08-8P Socket Head Cap Screw (4)

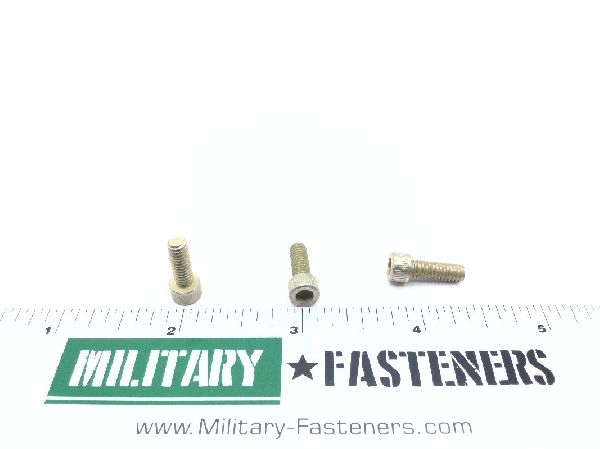

NAS1352-08-8P Socket Head Cap Screw (5)

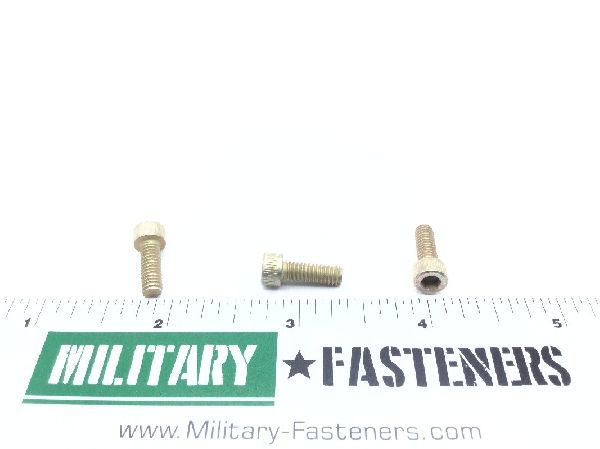

NAS1352-08-8P Socket Head Cap Screw (6)
NAS1352-08-8P Socket Head Cap Screw
NAS1352-08-8P Socket Head Cap Screw (2)
NAS1352-08-8P Socket Head Cap Screw (3)
NAS1352-08-8P Socket Head Cap Screw (4)
NAS1352-08-8P Socket Head Cap Screw (5)
NAS1352-08-8P Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352-08-8P Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $0.73
Units per Pack 50
Price per Pack $36.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $36.50
Add item to quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Class 3 federal specification single treatment response type 2 qq-p-416
Thread Class
3a
Fastener Length
Between 0.47 inches and 0.50 inches
Hardness Rating
38 rockwell c and 45 rockwell c
Head Height
Between 0.159 inches and 0.164 inches
Hole Configuration Style
Round longitudinal hole
Hole Quantity
6
Hole Type
Drilled
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
180000 pounds per square inch
Minimum Yield Strength
130000 pounds per square inch
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
Between 0.408 inches and 0.500 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Width Across Flats
Between 0.141 inches and 0.143 inches
Head Diameter
Between 0.262 inches and 0.27 inches
Hole Diameter
0.044 inches
