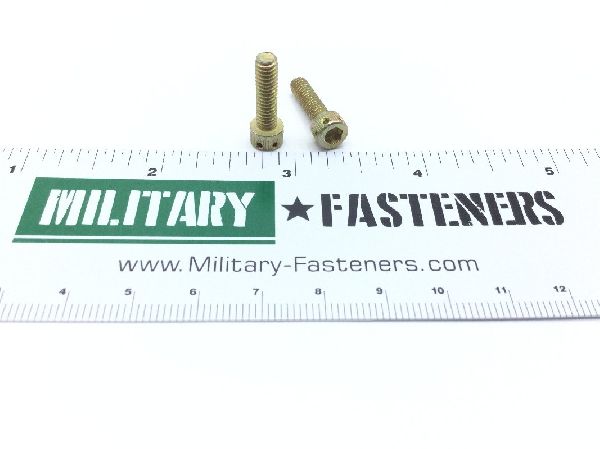

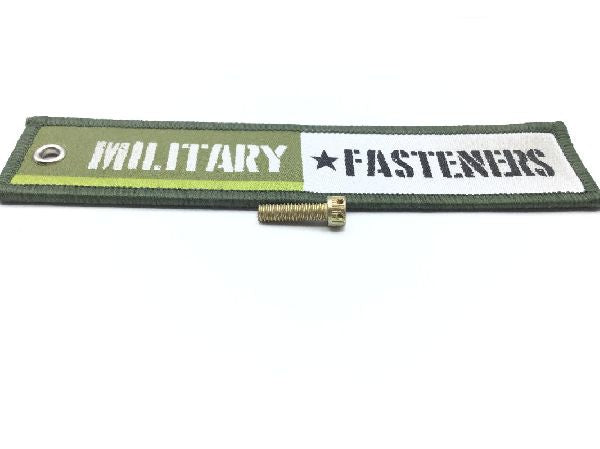

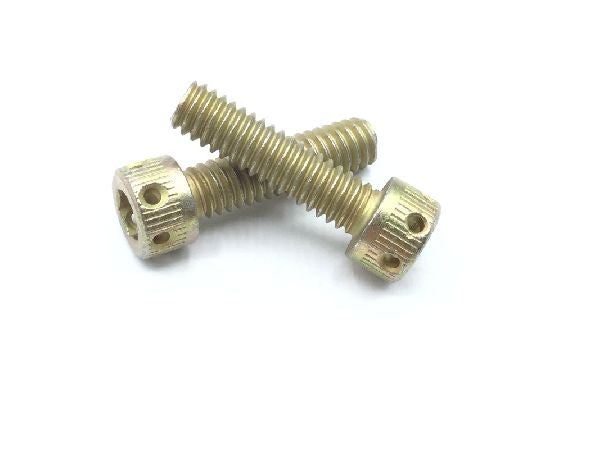

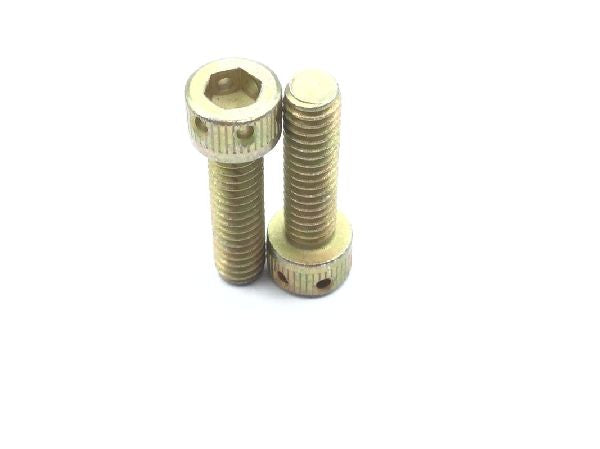

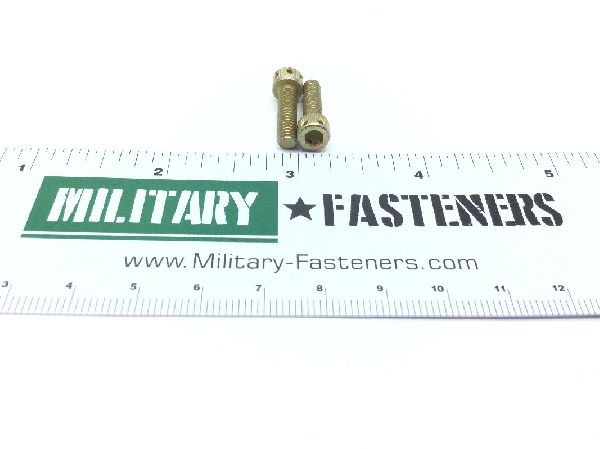

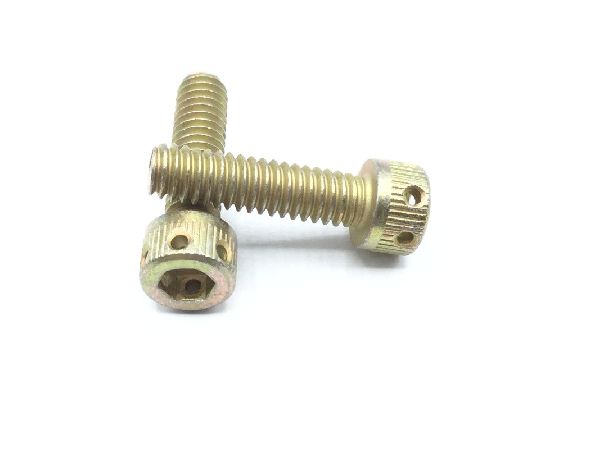

NAS1352-08H10P Socket Head Cap Screw
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- 0.625 inches
- Hardness Rating
- 36.0 rockwell c and 43.0 rockwell c
- Head Height
- Between 0.159 inches and 0.164 inches
- Hole Configuration Style
- Round internal hexagon
- Hole Quantity
- 6
- Hole Type
- Drilled
- Internal Drive Style
- Hexagon
- Minimum Yield Strength
- 130000 pounds per square inch
- Nondefinitive Specification/std Data
- 6 type
- Thread Diameter
- 0.164 inches
- Thread Direction
- Right-hand
- Thread Length
- 0.625 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unc (coarse thread)
- Width Across Flats
- Between 0.140 inches and 0.142 inches
- Head Diameter
- Between 0.262 inches and 0.270 inches
- Hole Diameter
- 0.046 inches
