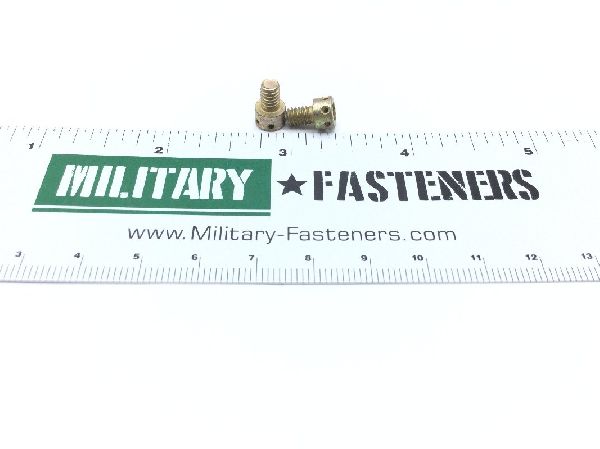

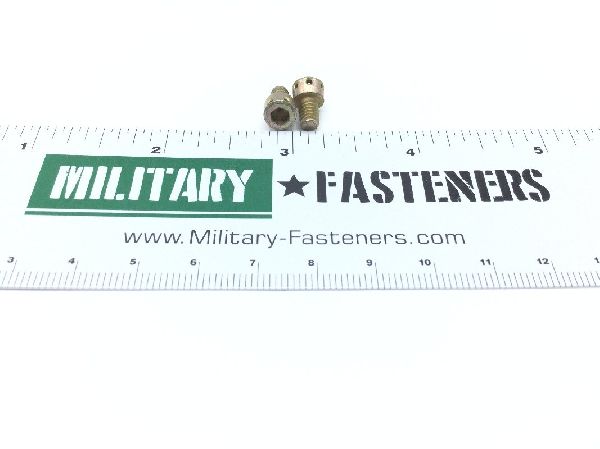

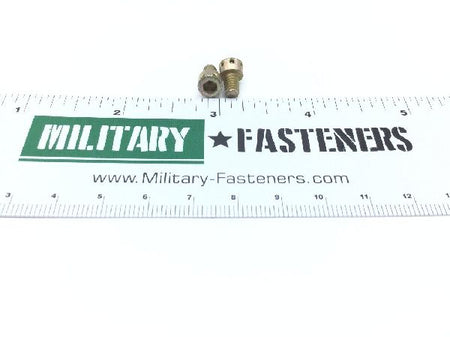

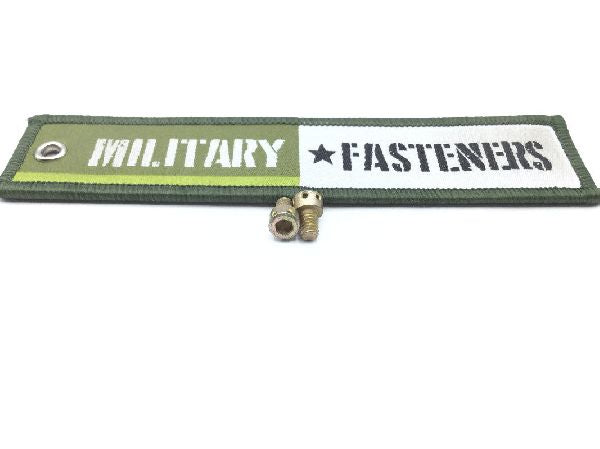

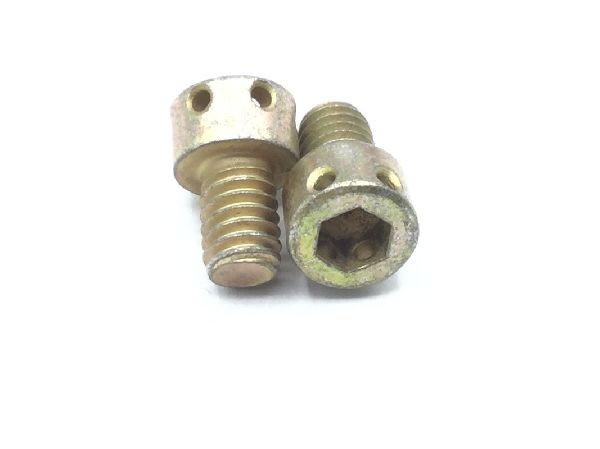

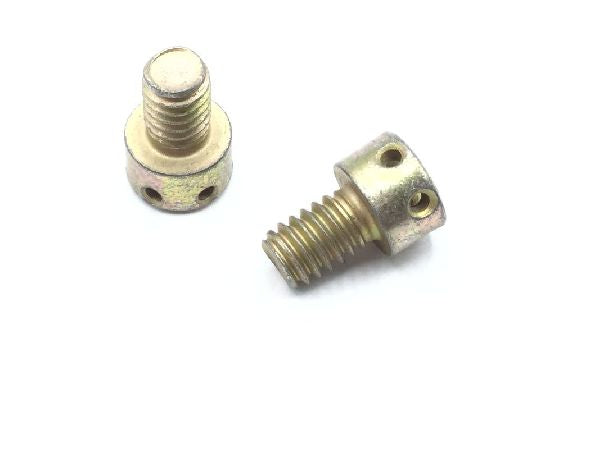

NAS1352-08H4P Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Type 2 class 3 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 0.095 inches and 0.125 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.159 inches and 0.164 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 180000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.033 inches and 0.125 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.140 inches and 0.142 inches
Head Diameter: Between 0.262 inches and 0.270 inches
Hole Diameter: 0.047 inches
