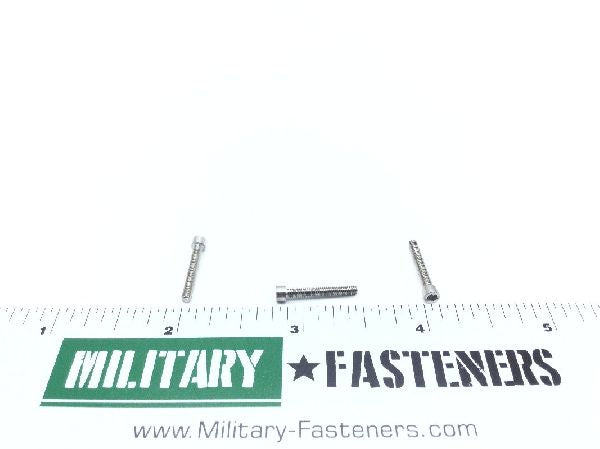

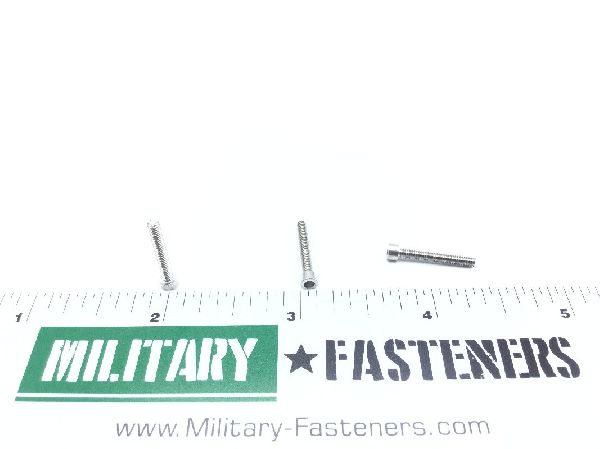

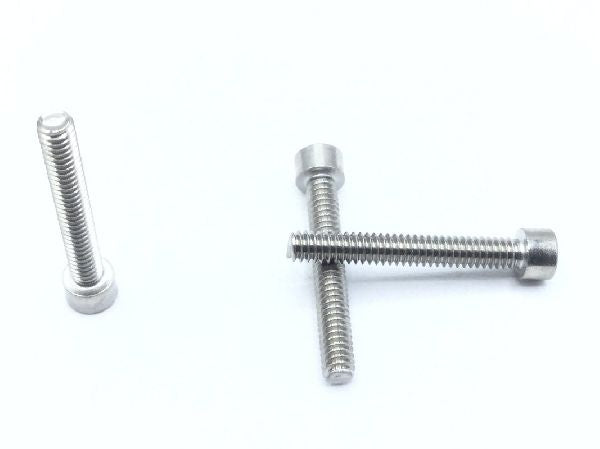

NAS1352C02-10 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.60

Units per Pack 20

Price per Pack $32.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $32.00

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.609 inches and 0.641 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.083 inches and 0.086 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.573 inches and 0.641 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.078 inches and 0.079 inches
Head Diameter: Between 0.134 inches and 0.140 inches
