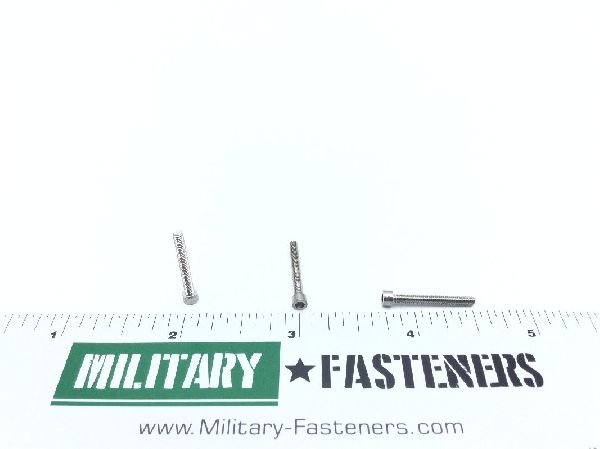

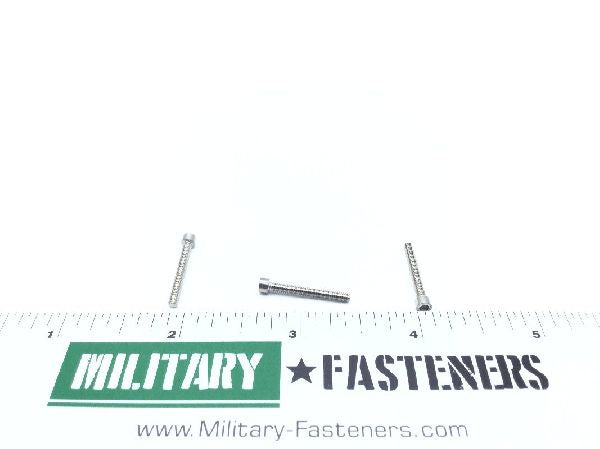

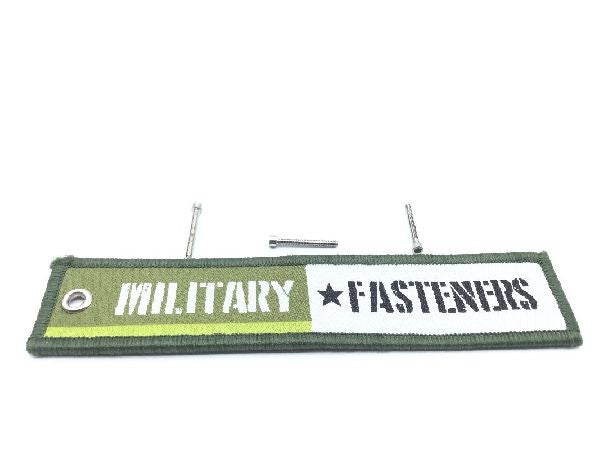

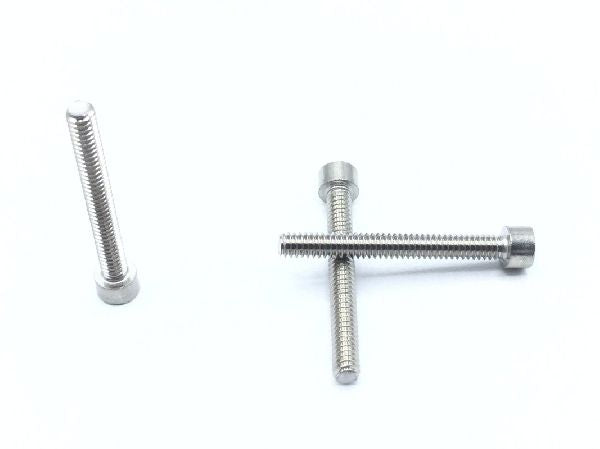

NAS1352C02-12 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.35

Units per Pack 25

Price per Pack $33.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $33.75

Add item to quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: 0.750 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.083 inches and 0.086 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.730 inches and 0.750 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.078 inches and 0.079 inches
Head Diameter: Between 0.134 inches and 0.140 inches
