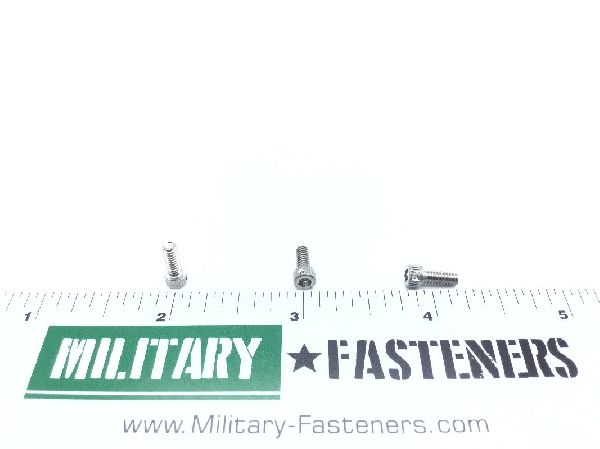

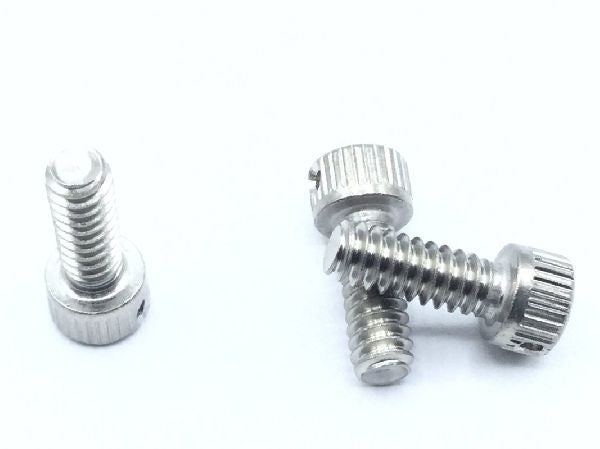

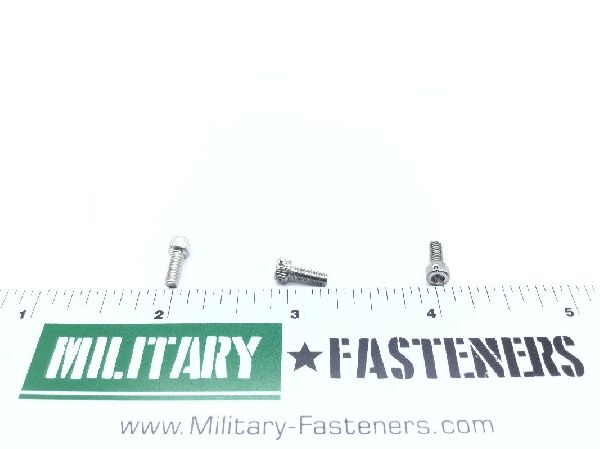

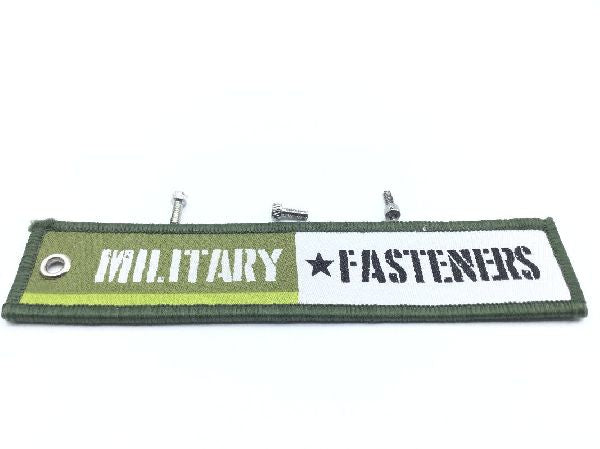

NAS1352C04H5 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.296 inches and 0.328 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.108 inches and 0.112 inches
Hole Configuration Style: Round longitudinal hole
Hole Quantity: 2
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: 0.262 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.094 inches and 0.095 inches
Head Diameter: Between 0.176 inches and 0.183 inches
Hole Diameter: 0.036 inches
