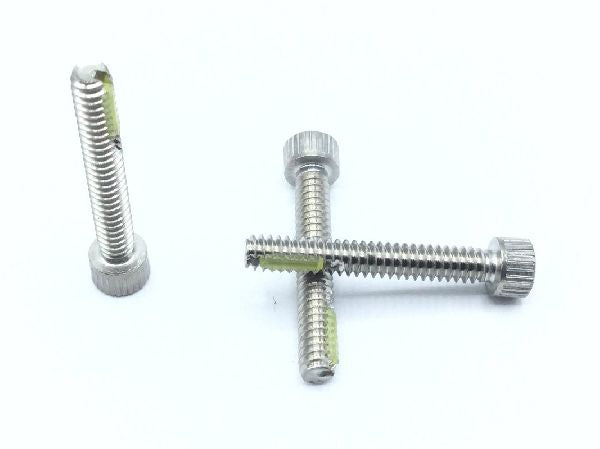

NAS1352C04LL12 Socket Head Cap Screw (2)

NAS1352C04LL12 Socket Head Cap Screw (3)

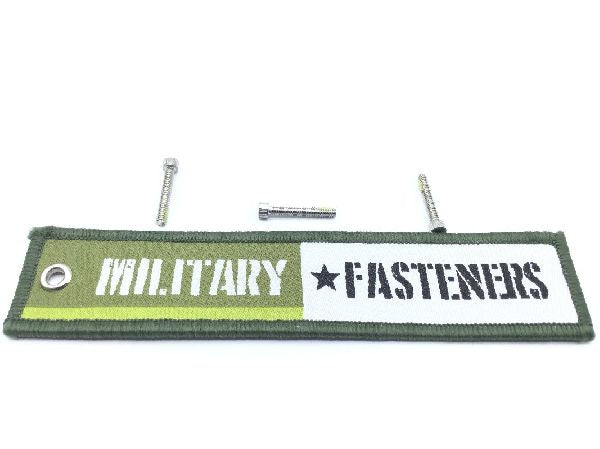

NAS1352C04LL12 Socket Head Cap Screw (4)

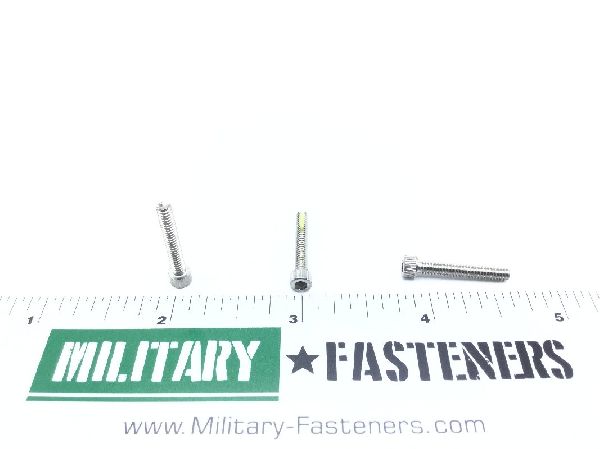

NAS1352C04LL12 Socket Head Cap Screw (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352C04LL12 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.81

Units per Pack 25

Price per Pack $45.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $45.25

Add item to quote

Head Style

Flat chamfer

Material

Steel comp 302 fastener or steel comp 304 fastener or steel comp 305 fastener or steel comp 316 fastener or steel comp 384 fastener or steel comp xm-7 fastener

Surface Treatment

Qq-p-35 federal specification single treatment response fastener

Thread Class

Fastener Length: Between 0.720 inches and 0.750 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.108 inches and 0.112 inches
Internal Drive Style: Hexagon
Locking Feature: Strip threads
Material Specification: Astm a493 assn standard all material responses fastener
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.670 inches and 0.750 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.094 inches and 0.095 inches
Head Diameter: Between 0.176 inches and 0.183 inches
