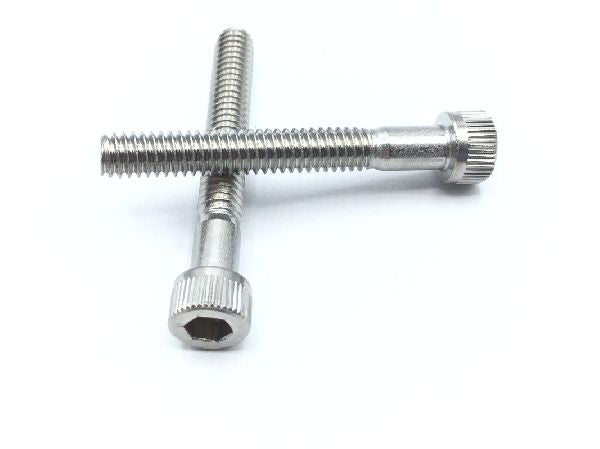

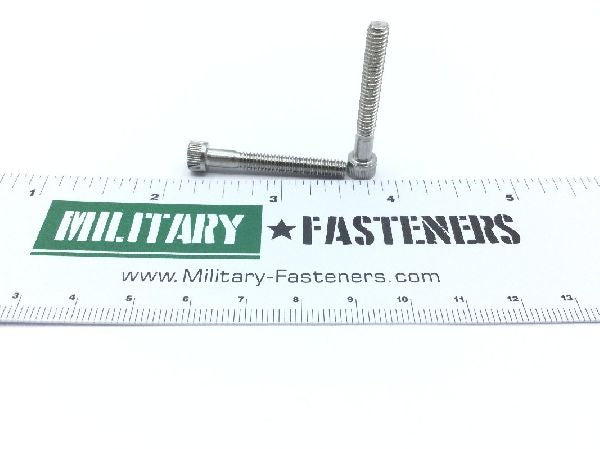

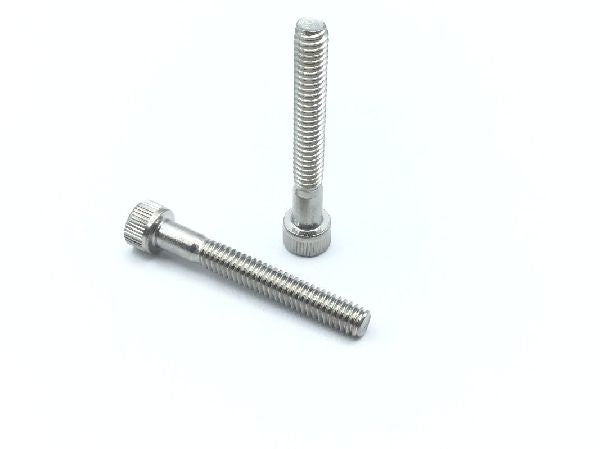

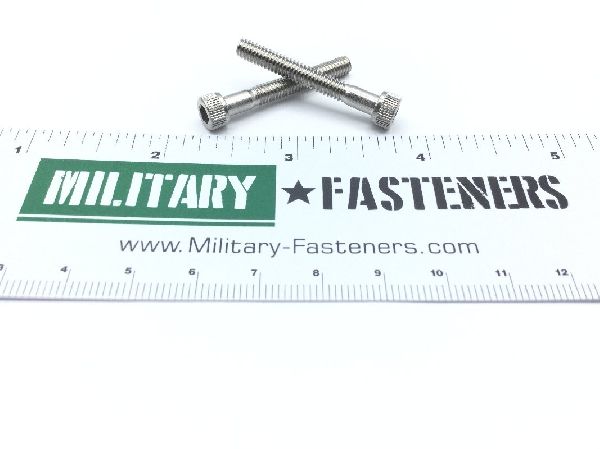

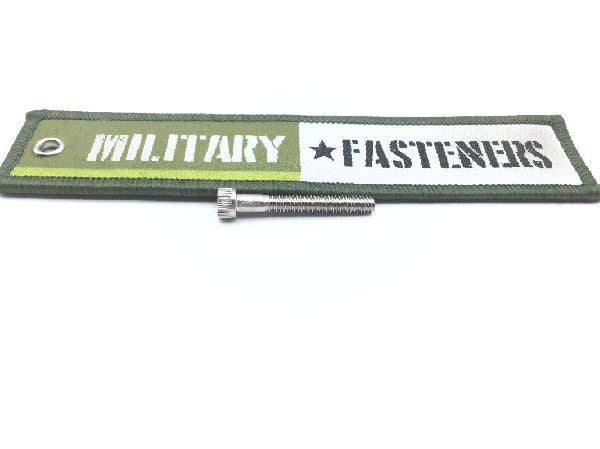

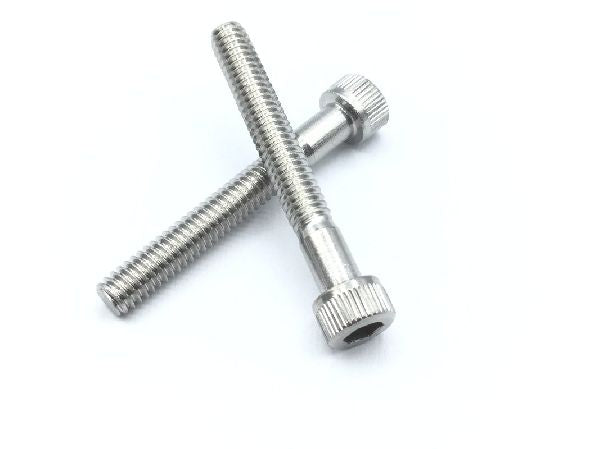

NAS1352C08-20 Socket Head Cap Screw
NAS1352C08-20 Socket Head Cap Screw (2)
NAS1352C08-20 Socket Head Cap Screw (3)
NAS1352C08-20 Socket Head Cap Screw (4)
NAS1352C08-20 Socket Head Cap Screw (5)
NAS1352C08-20 Socket Head Cap Screw (6)
NAS1352C08-20 Socket Head Cap Screw
NAS1352C08-20 Socket Head Cap Screw (2)
NAS1352C08-20 Socket Head Cap Screw (3)
NAS1352C08-20 Socket Head Cap Screw (4)
NAS1352C08-20 Socket Head Cap Screw (5)
NAS1352C08-20 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352C08-20 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $2.70
Units per Pack 25
Price per Pack $67.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:
Total Packs 1
Total Price $67.50
Add item to quote
Head Style
Dee chamfer
Material
Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316
Surface Treatment
Qq-p-35 federal specification federal specification single treatment response
Thread Class
3a
Fastener Length
1.234 inches
Hardness Rating
80.0 rockwell b
Internal Drive Style
Hexagon
Material Specification
66 federal standard all material responses federal standard single material response
Min. Tensile Strength (psi)
80000 pounds per square inch
Part Name Assigned By Controlling Agency
Drilled socket head cap screw
Specification Data
80205 - nas 1352 national std/spec
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
0.875 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Width Across Flats
0.109 inches
