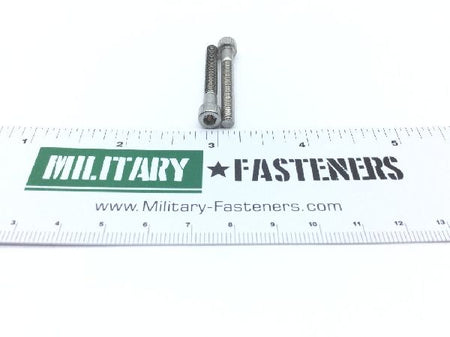

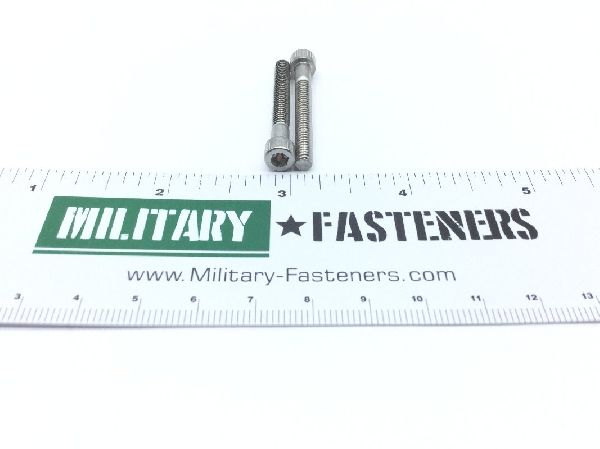

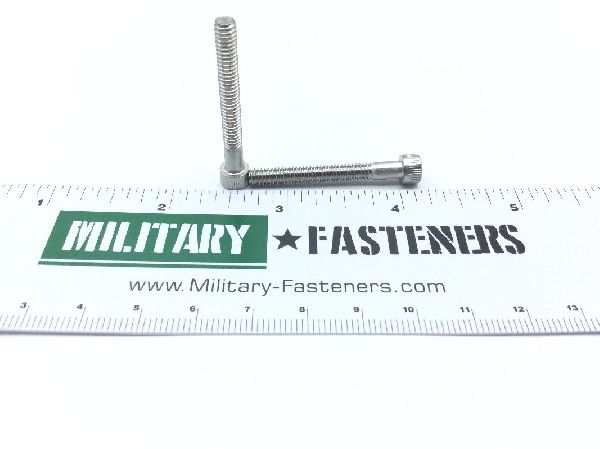

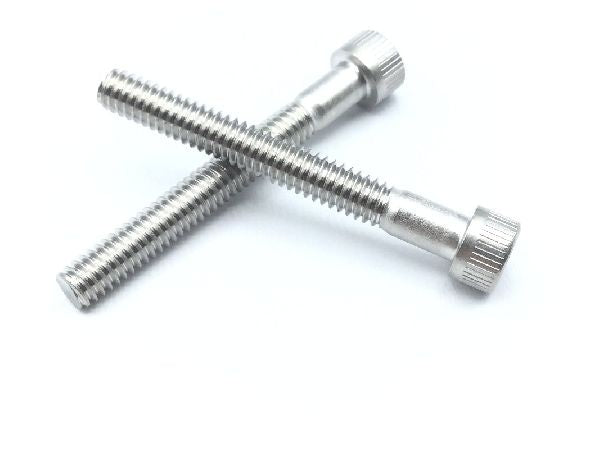

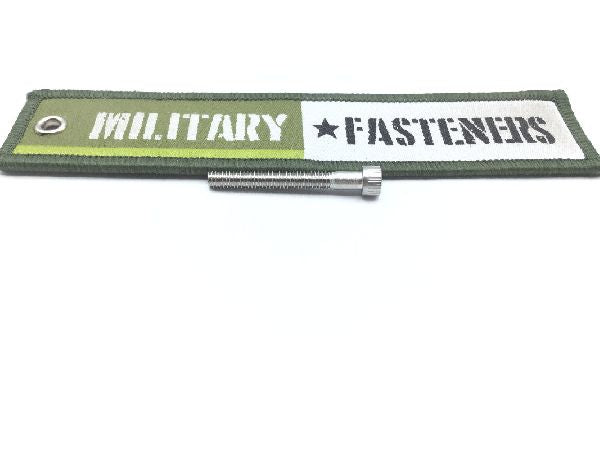

NAS1352C08-22 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 384 or steel comp xm-7

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 1.335 inches and 1.375 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.159 inches and 0.164 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.875 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.141 inches and 0.143 inches
Head Diameter: Between 0.262 inches and 0.270 inches
