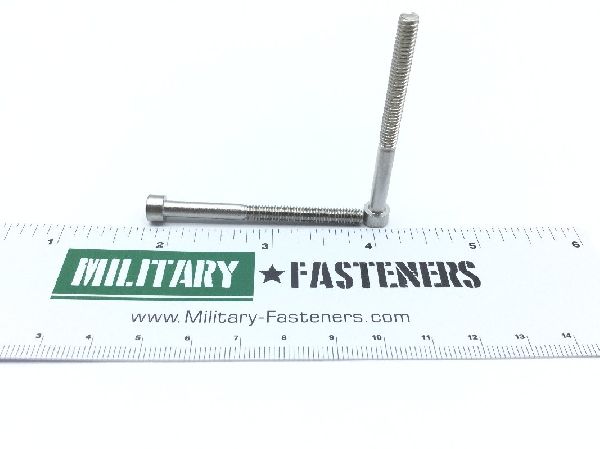

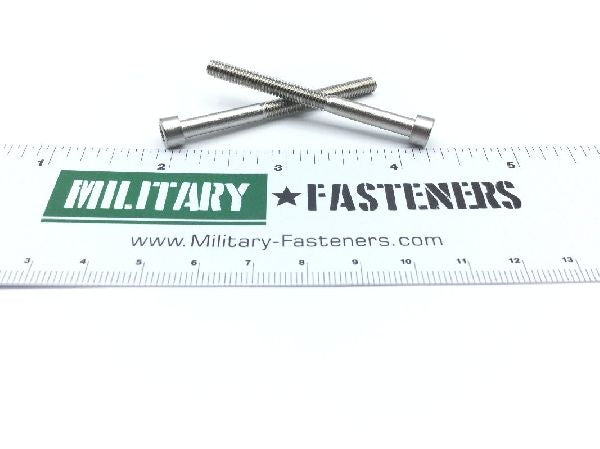

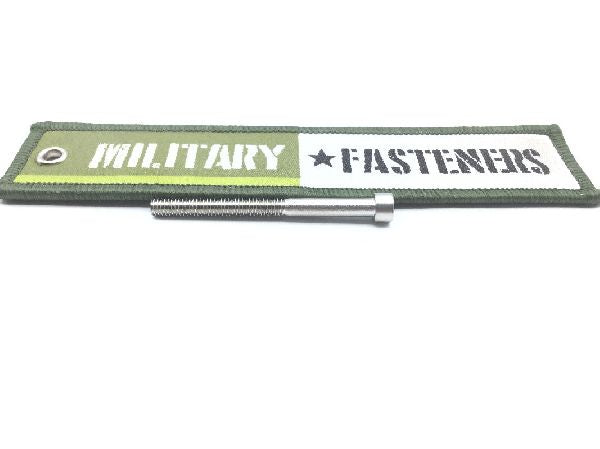

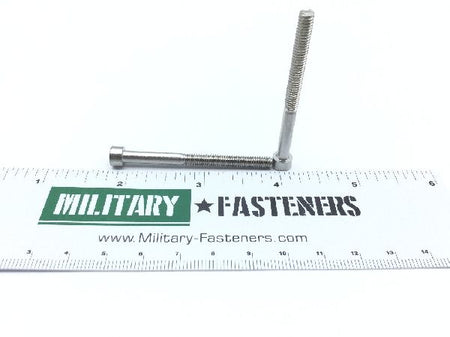

NAS1352C08-32 Socket Head Cap Screw
NAS1352C08-32 Socket Head Cap Screw (2)
NAS1352C08-32 Socket Head Cap Screw (3)
NAS1352C08-32 Socket Head Cap Screw (4)
NAS1352C08-32 Socket Head Cap Screw (5)
NAS1352C08-32 Socket Head Cap Screw (6)
NAS1352C08-32 Socket Head Cap Screw
NAS1352C08-32 Socket Head Cap Screw (2)
NAS1352C08-32 Socket Head Cap Screw (3)
NAS1352C08-32 Socket Head Cap Screw (4)
NAS1352C08-32 Socket Head Cap Screw (5)
NAS1352C08-32 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352C08-32 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $4.83
Units per Pack 10
Price per Pack $48.30
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $48.30
Add item to quote
Head Style
Flat chamfer
Material
Steel comp 302 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 384 or steel comp xm-7
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3a
Fastener Length
Between 1.960 inches and 2.000 inches
Hardness Rating
80.0 rockwell b
Head Height
Between 0.159 inches and 0.164 inches
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
80000 pounds per square inch
Minimum Yield Strength
30000 pounds per square inch
Specification Data
80205-nas1352 professional/industrial association standard
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
0.875 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unrc
Width Across Flats
Between 0.1406 inches and 0.1426 inches
Head Diameter
Between 0.262 inches and 0.270 inches
