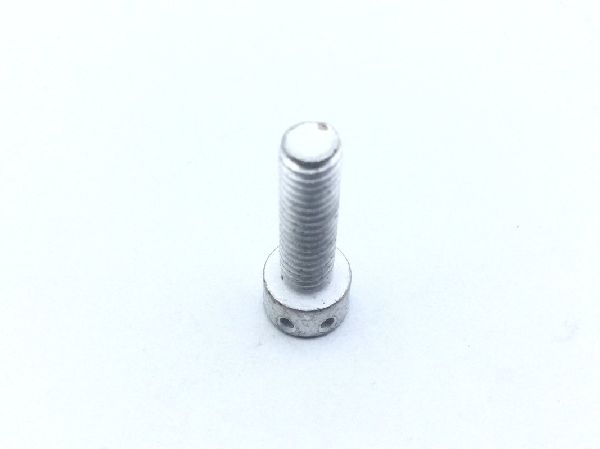

NAS1352C08H10P Socket Head Cap Screw
NAS1352C08H10P Socket Head Cap Screw (2)
NAS1352C08H10P Socket Head Cap Screw (3)

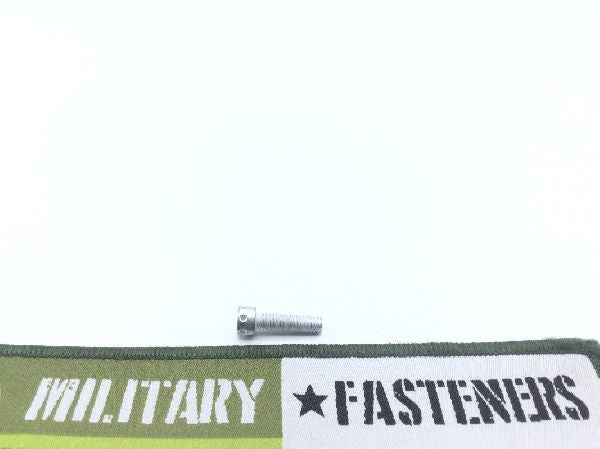

NAS1352C08H10P Socket Head Cap Screw (4)

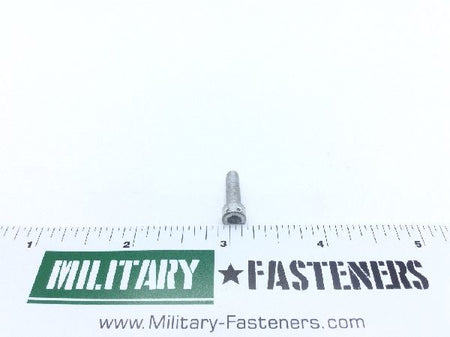

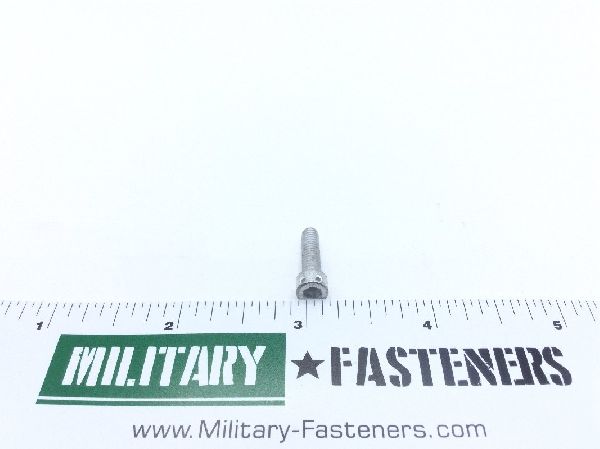

NAS1352C08H10P Socket Head Cap Screw (5)

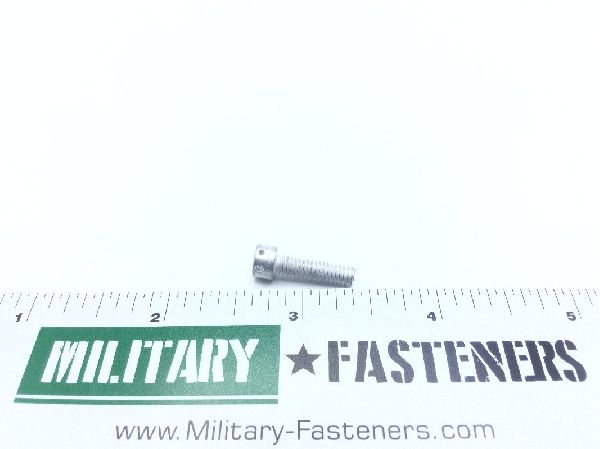

NAS1352C08H10P Socket Head Cap Screw (6)
NAS1352C08H10P Socket Head Cap Screw
NAS1352C08H10P Socket Head Cap Screw (2)
NAS1352C08H10P Socket Head Cap Screw (3)
NAS1352C08H10P Socket Head Cap Screw (4)
NAS1352C08H10P Socket Head Cap Screw (5)
NAS1352C08H10P Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352C08H10P Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat chamfer
Material
Steel comp 302 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 384
Surface Treatment
Type 1 class 2 federal specification single treatment response qq-p-416
Thread Class
3a
Fastener Length
Between 0.595 inches and 0.625 inches
Hardness Rating
80.0 rockwell b
Head Height
Between 0.159 inches and 0.164 inches
Hole Configuration Style
Round internal hexagon
Hole Quantity
6
Hole Type
Drilled
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
80000 pounds per square inch
Minimum Yield Strength
30000 pounds per square inch
Specification Data
80205-nas1352 professional/industrial association standard
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
0.533 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unrc
Width Across Flats
Between 0.1406 inches and 0.1426 inches
Head Diameter
Between 0.262 inches and 0.270 inches
Hole Diameter
Between 0.044 inches and 0.050 inches
