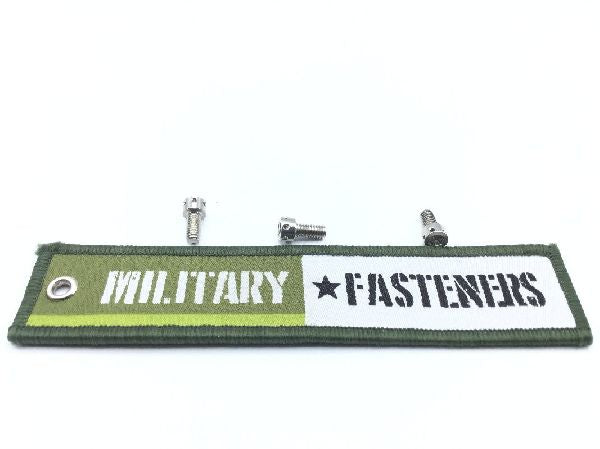

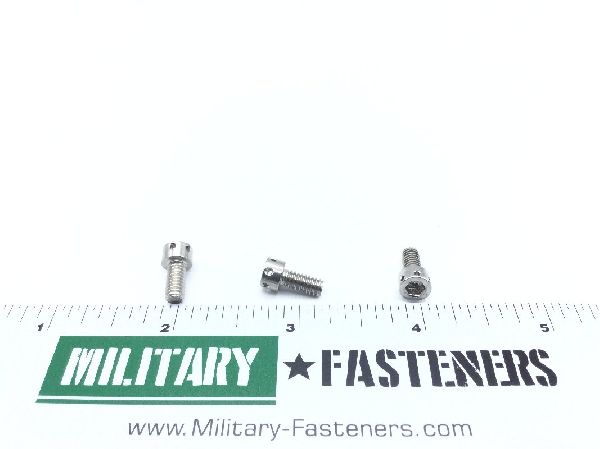

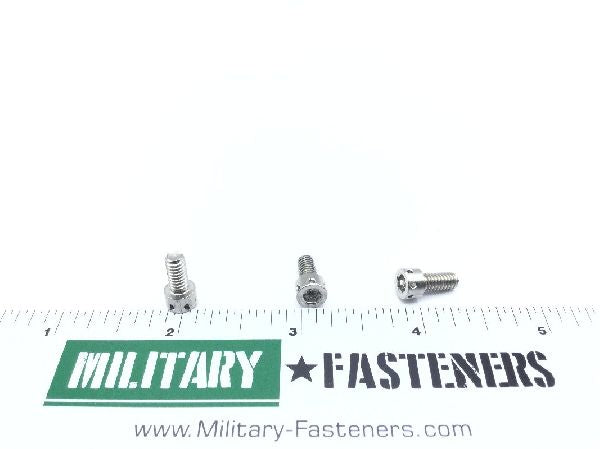

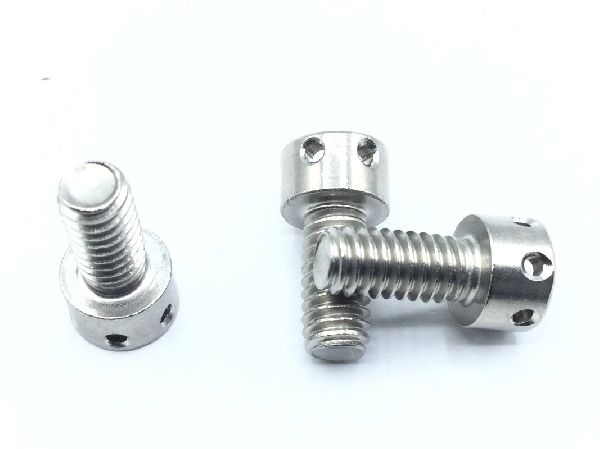

NAS1352C08H6 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $4.00

Units per Pack 10

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Criticality Code Justification: Feat
Fastener Length: Between 0.359 inches and 0.391 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.159 inches and 0.164 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Special Features: Fit restrictions or application item does not have a nuclear hardened feature but does have other critical features such as tolerance
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.359 inches and 0.391 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unrc
Width Across Flats: Between 0.141 inches and 0.143 inches
Head Diameter: Between 0.262 inches and 0.270 inches
Hole Diameter: 0.047 inches
