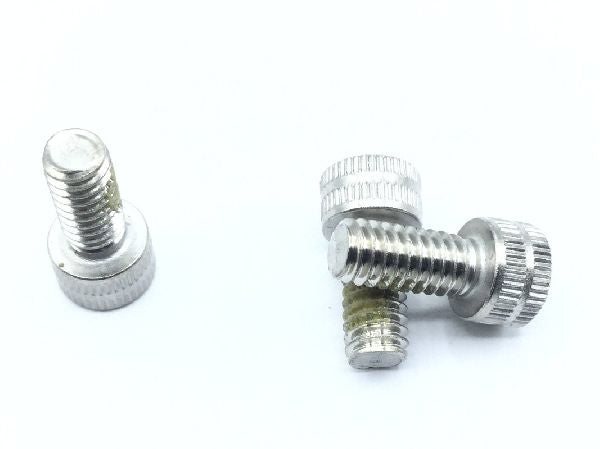

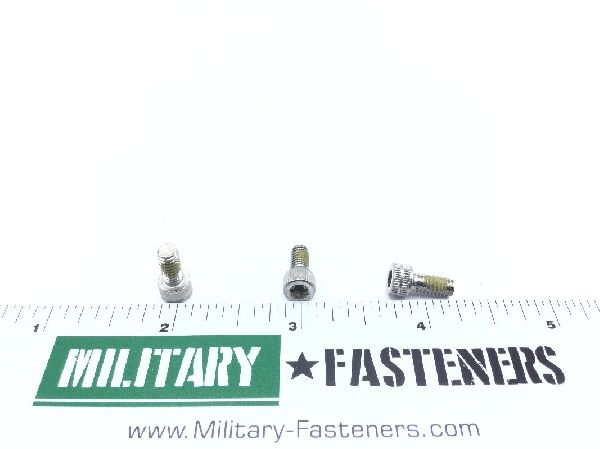

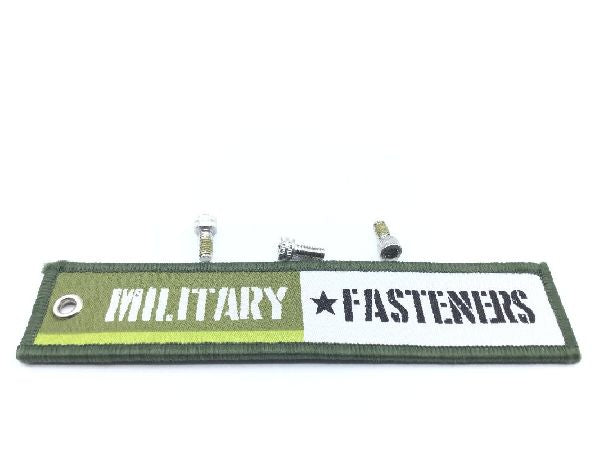

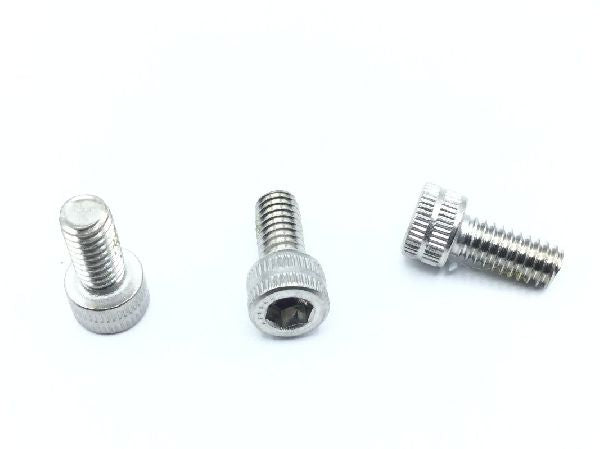

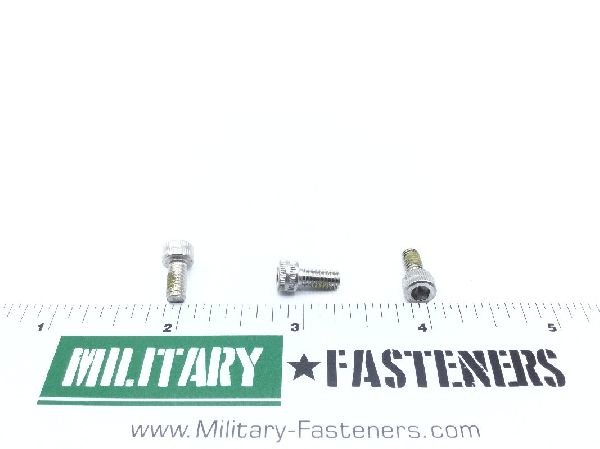

NAS1352C08LB6 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $3.50

Units per Pack 10

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Flat chamfer

Material

Steel comp

Surface Treatment

Qq-p-35 federal specification single treatment response fastener

Thread Class

Fastener Length: Between 0.345 inches and 0.375 inches
Hardness Rating: 80.0 rockwell c
Head Height: Between 0.159 inches and 0.164 inches
Internal Drive Style: Hexagon
Locking Feature: Patch threads
Material Specification: Astm a493 assn standard all material responses fastener
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.313 inches and 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unrc
Width Across Flats: Between 0.1406 inches and 0.1426 inches
Head Diameter: Between 0.262 inches and 0.27 inches
