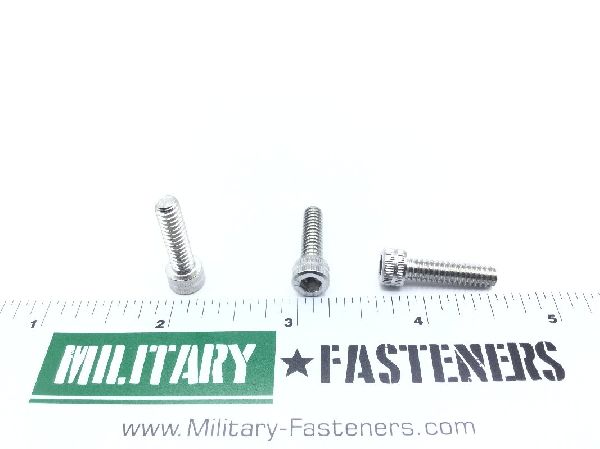

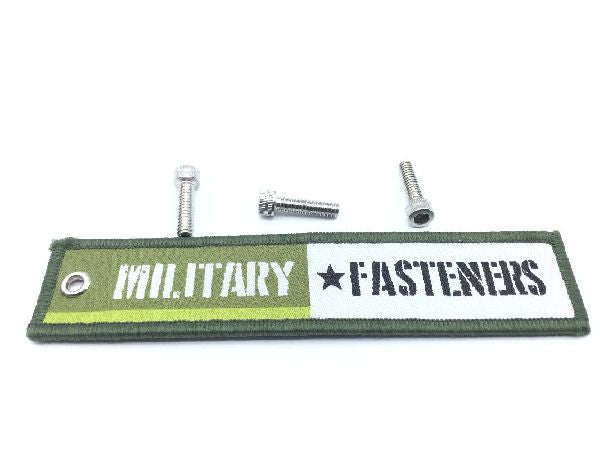

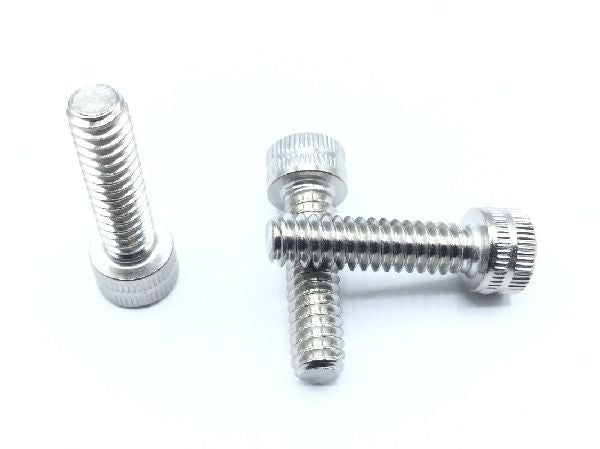

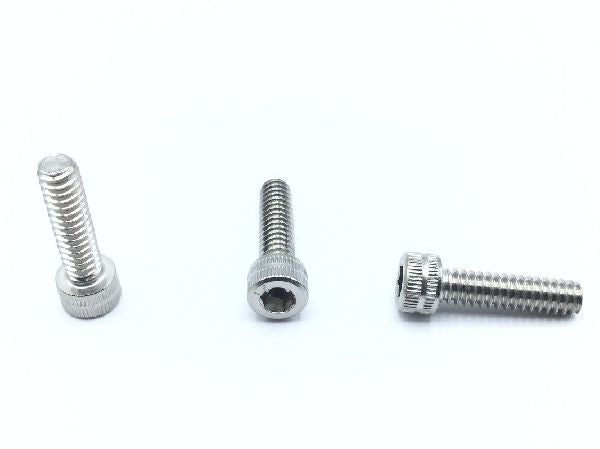

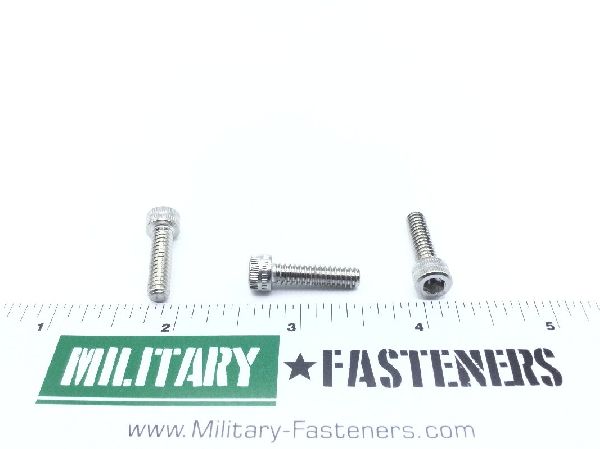

NAS1352C3-12 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel comp

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.720 inches and 0.750 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.185 inches and 0.190 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.667 inches and 0.750 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.156 inches and 0.159 inches
Head Diameter: Between 0.303 inches and 0.312 inches
