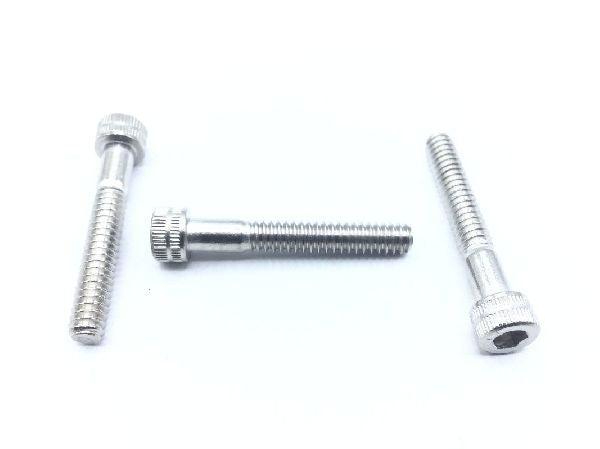

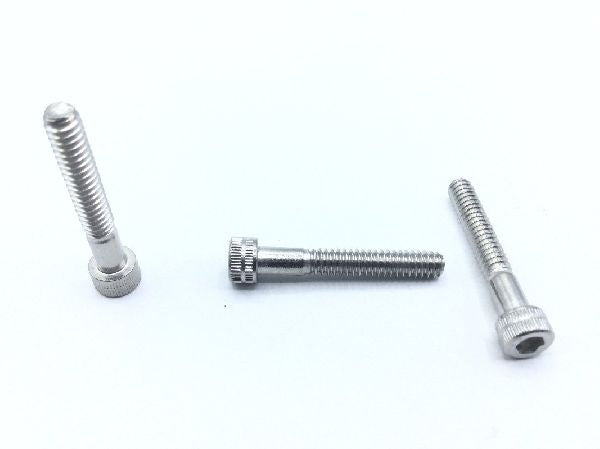

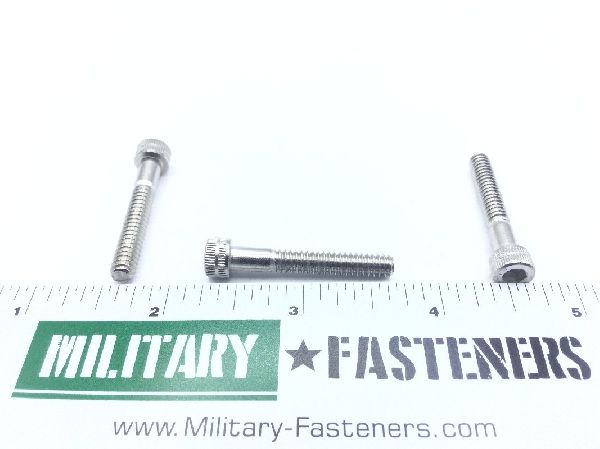

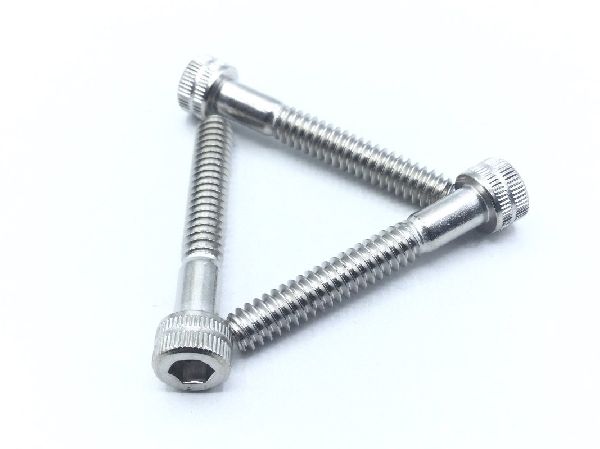

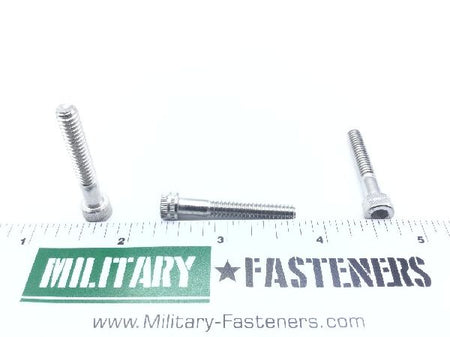

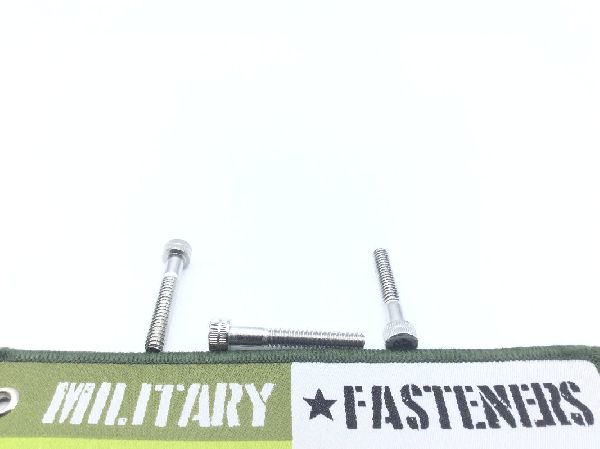

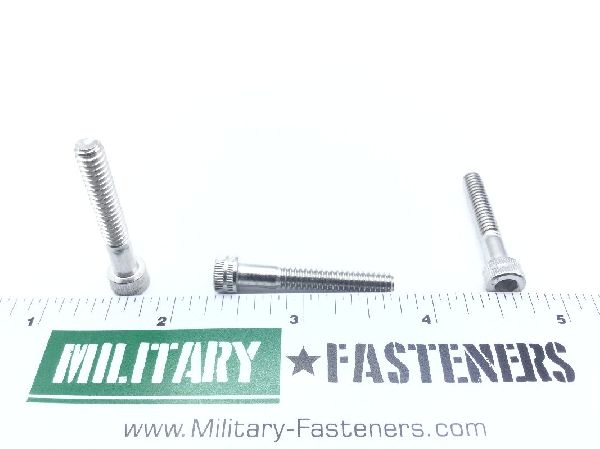

NAS1352C3-20 Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.57

Units per Pack 25

Price per Pack $64.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $64.25

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 1.210 inches and 1.250 inches
Hardness Rating: 74.0 rockwell b
Head Height: Between 0.185 inches and 0.190 inches
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 70000 pounds per square inch
Minimum Yield Strength: 26000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 1.127 inches and 1.167 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unrc
Width Across Flats: Between 0.1562 inches and 0.1587 inches
Head Diameter: Between 0.303 inches and 0.313 inches
