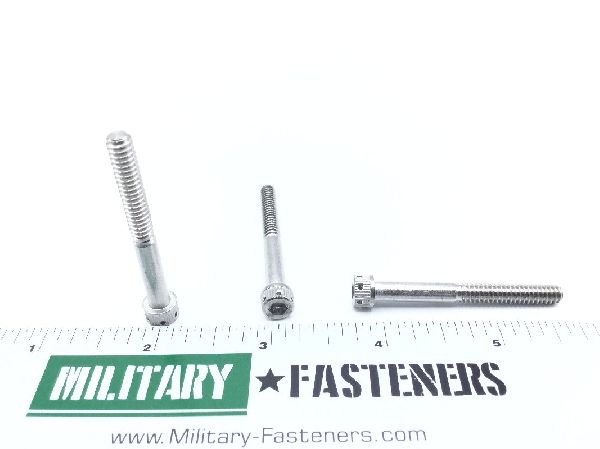

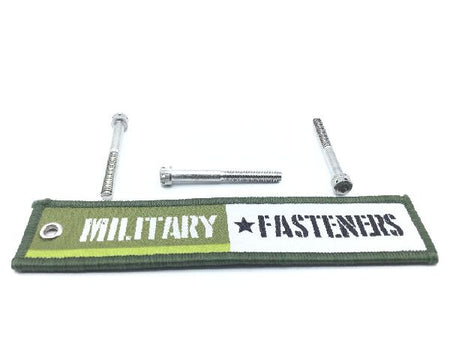

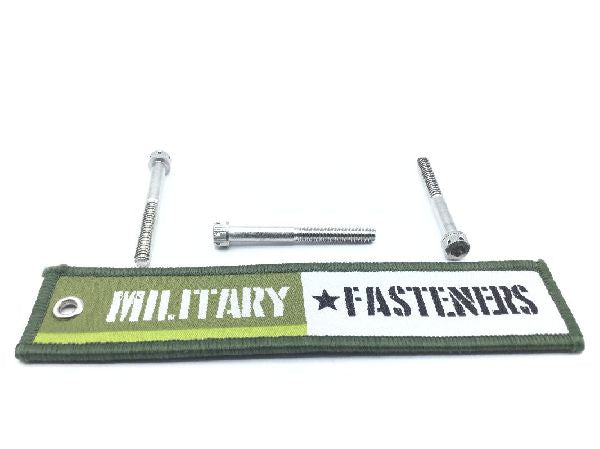

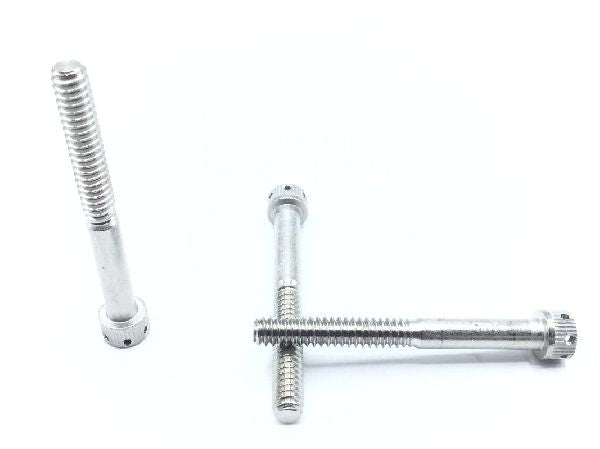

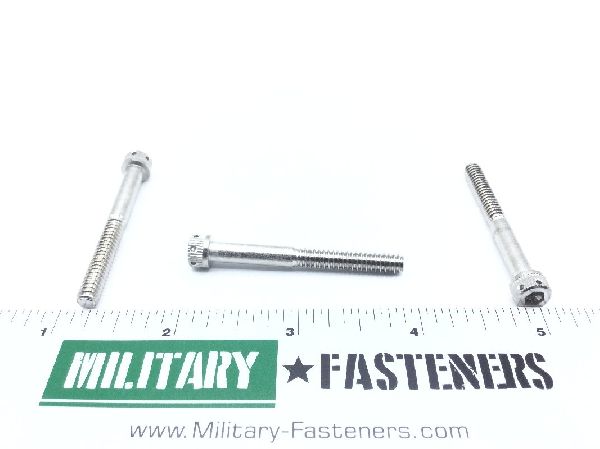

NAS1352C3H28 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $16.63

Units per Pack 5

Price per Pack $83.15

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $83.15

Add item to quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 384 or steel comp xm-7

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: 1.750 inches
Head Height: Between 0.185 inches and 0.190 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: Astm a493 assn standard single material response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.875 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unrc
Width Across Flats: 0.156 inches
Head Diameter: Between 0.303 inches and 0.312 inches
Hole Diameter: Between 0.044 inches and 0.050 inches
