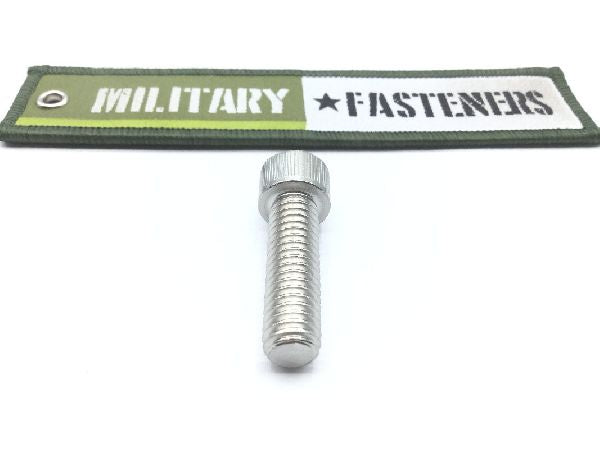

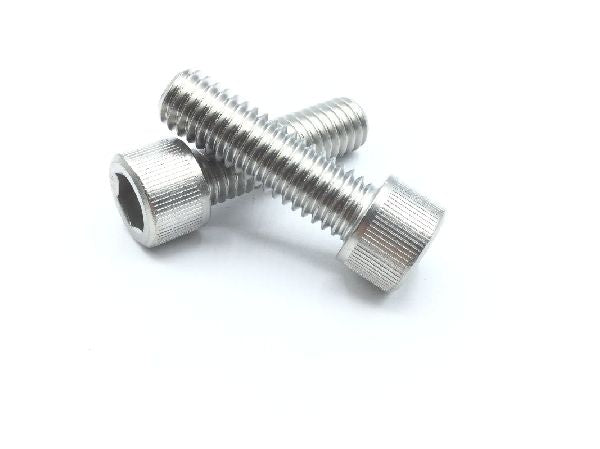

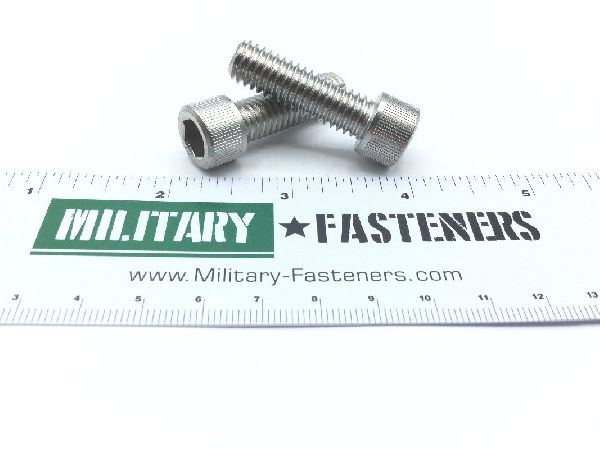

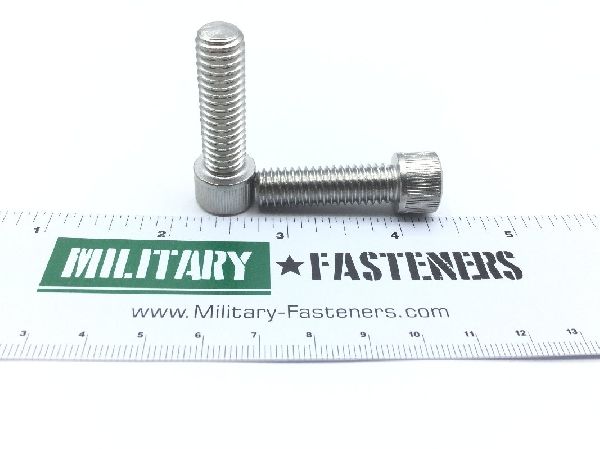

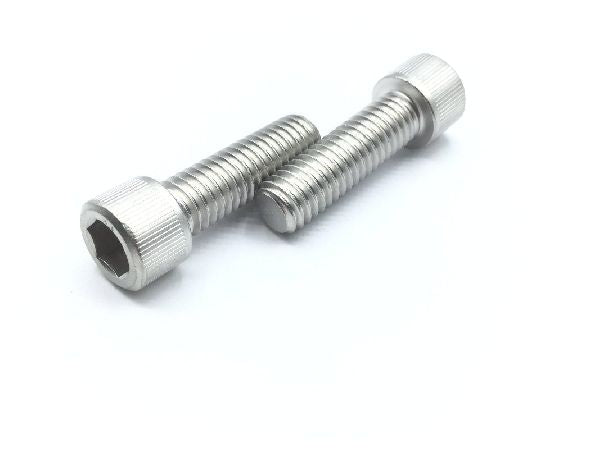

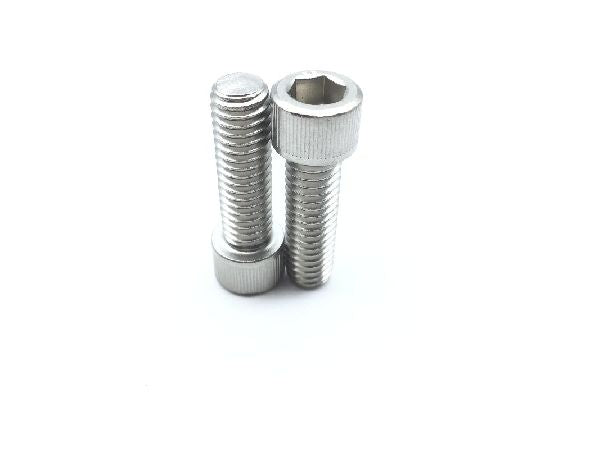

NAS1352C6-20 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $6.25
Units per Pack 10
Price per Pack $62.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $62.50
Add item to quote
Head Style
Flat chamfer
Material
Steel comp 302 or steel comp 304 or steel comp 384 or steel comp 316 or steel comp 305
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3a
Fastener Length
Between 1.150 inches and 1.250 inches
Head Height
Between 0.368 inches and 0.375 inches
Internal Drive Style
Hexagon
Min. Tensile Strength (psi)
80000 pounds per square inch
Minimum Yield Strength
30000 pounds per square inch
Nondefinitive Specification/std Data
1 type and 49 style
Specification Data
80205-nas1352 professional/industrial association standard
Thread Diameter
0.375 inches
Thread Direction
Right-hand
Thread Length
Between 1.050 inches and 1.150 inches
Thread Qty Per Inch (tpi)
16
Thread Series Designator
Unrc
Width Across Flats
Between 0.312 inches and 0.316 inches
Head Diameter
Between 0.550 inches and 0.562 inches
