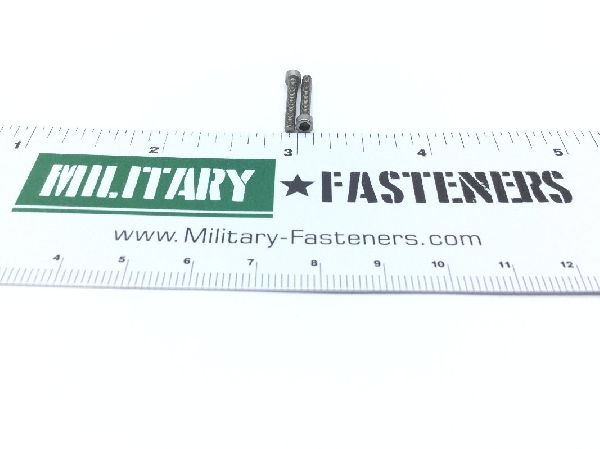

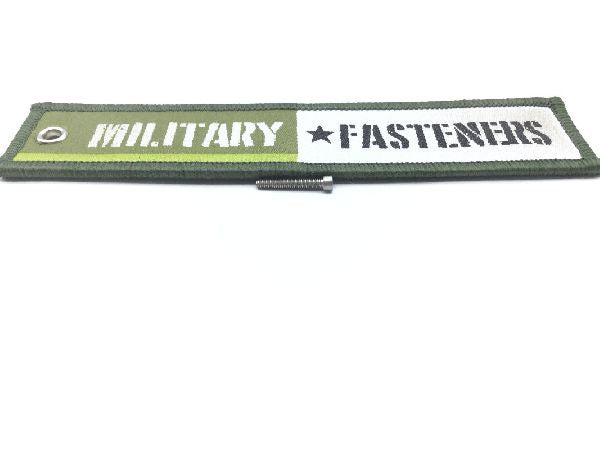

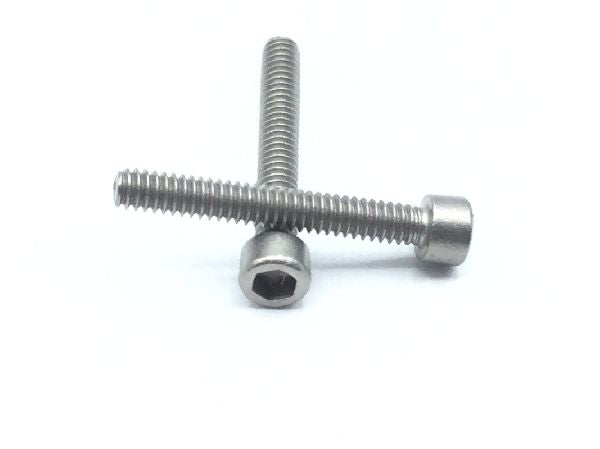

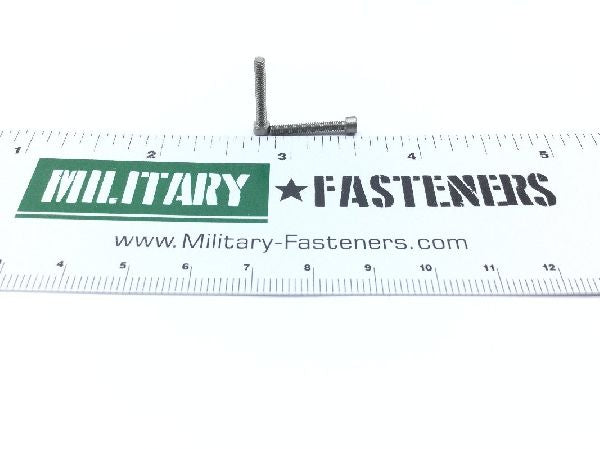

NAS1352N02-10 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.89

Units per Pack 25

Price per Pack $47.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $47.25

Add item to quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.595 inches and 0.625 inches
Head Height: Between 0.083 inches and 0.086 inches
Internal Drive Style: Hexagon
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.559 inches and 0.625 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unrc
Width Across Flats: Between 0.0781 inches and 0.0791 inches
Head Diameter: Between 0.134 inches and 0.140 inches
