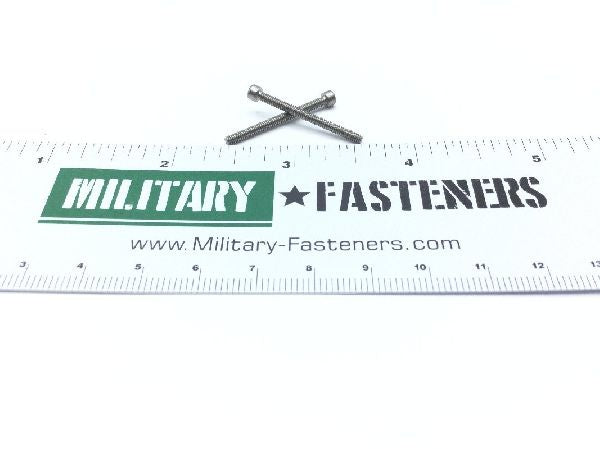

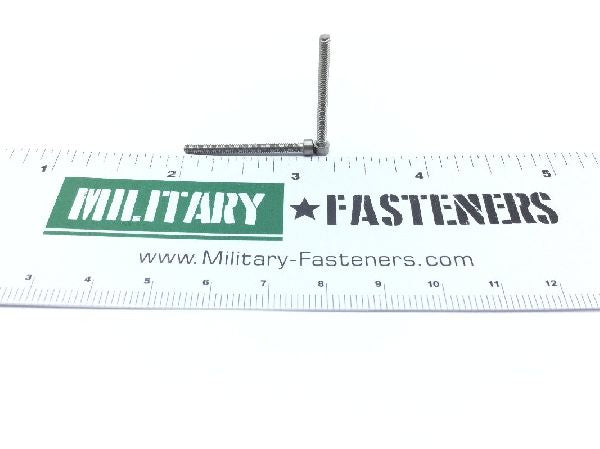

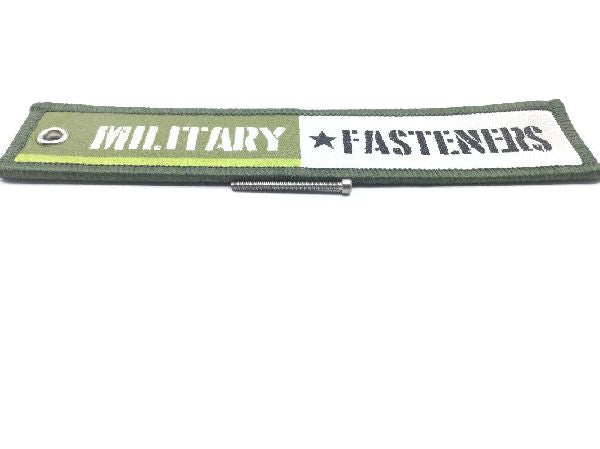

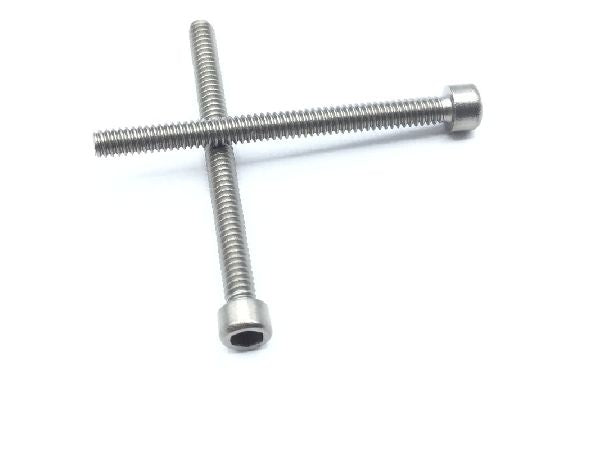

NAS1352N02-16 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: 1.00 inches
Hardness Rating: 33.0 rockwell c and 42.0 rockwell c
Head Height: Between 0.083 inches and 0.086 inches
Internal Drive Style: Hexagon
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 120000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: 0.625 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unrc
Width Across Flats: Between 0.0781 inches and 0.0791 inches
Head Diameter: Between 0.134 inches and 0.14 inches
