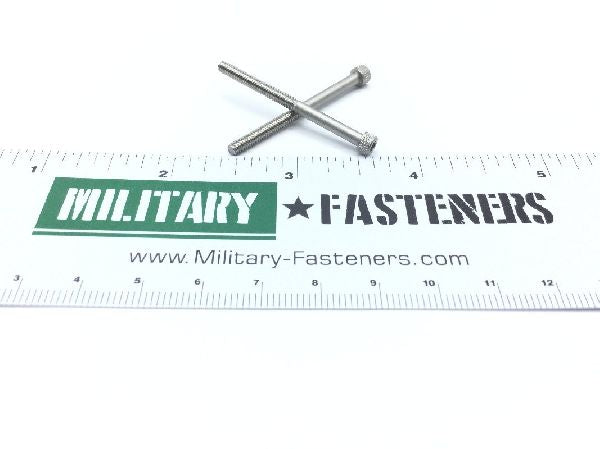

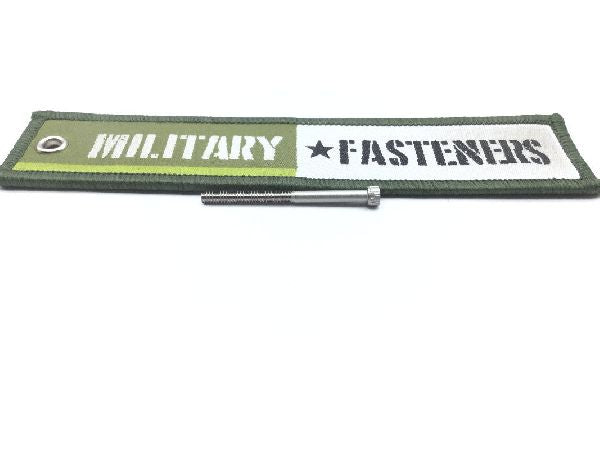

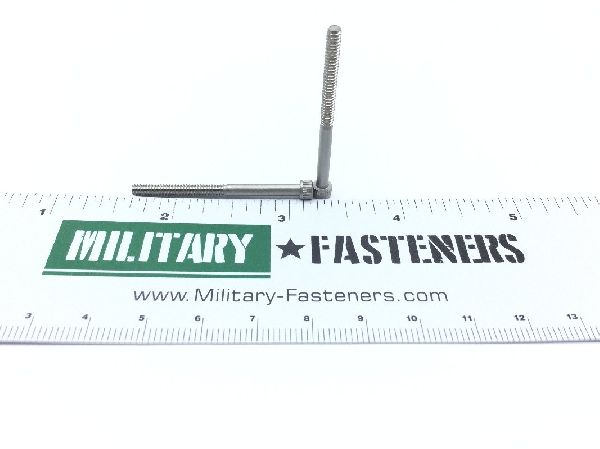

NAS1352N04-24 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Thread Class

Fastener Length: Between 1.460 inches and 1.500 inches
Hardness Rating: Between 33.0 rockwell c and 42.0 rockwell c
Head Height: Between 0.108 inches and 0.112 inches
Internal Drive Style: Err-090
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Specification Data: 80205-nas1531 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: 0.750 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unrc
Width Between Flats: Between 0.0937 inches and 0.0952 inches
Head Diameter: Between 0.176 inches and 0.183 inches
