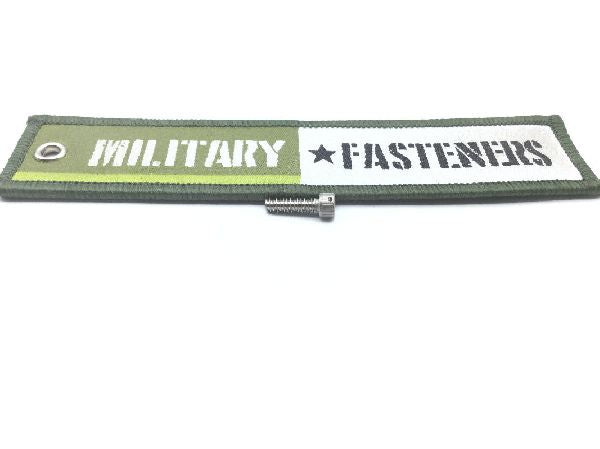

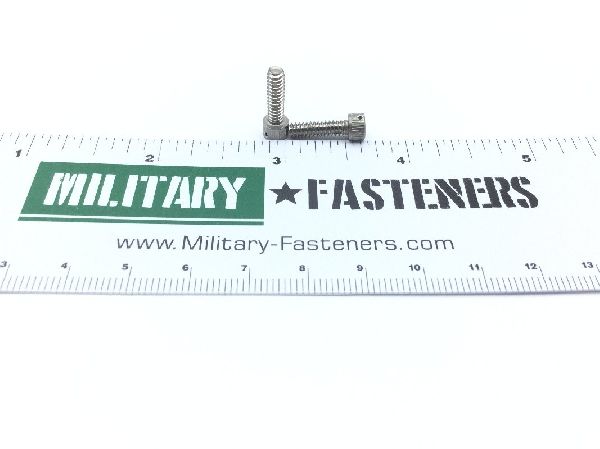

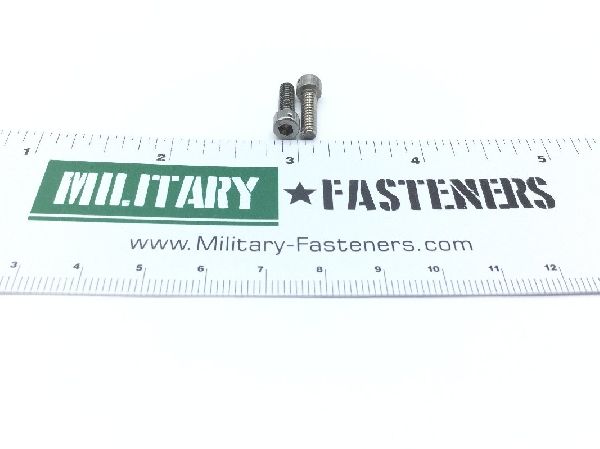

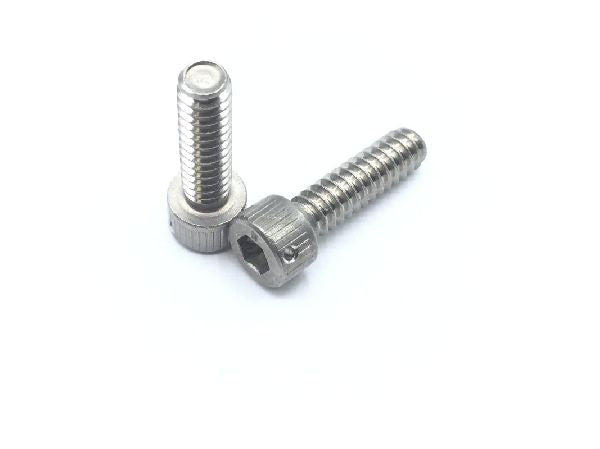

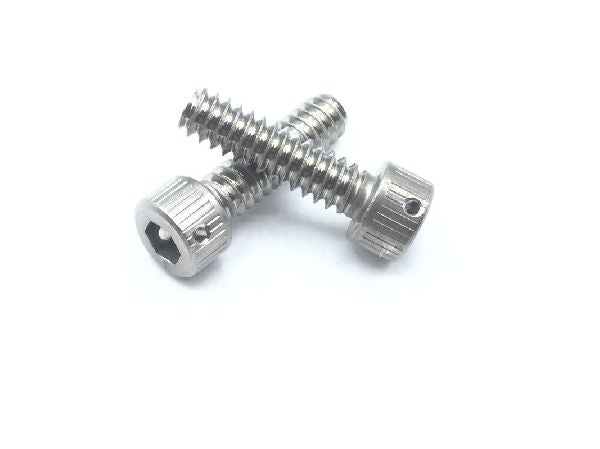

NAS1352N06H8 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Astm a380 assn standard single treatment response

Thread Class

Fastener Length: Between 0.470 inches and 0.500 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.134 inches and 0.138 inches
Hole Configuration Style: Round longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 155000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unrc
Width Across Flats: Between 0.1094 inches and 0.1111 inches
Head Diameter: Between 0.218 inches and 0.226 inches
Hole Diameter: Between 0.033 inches and 0.039 inches
