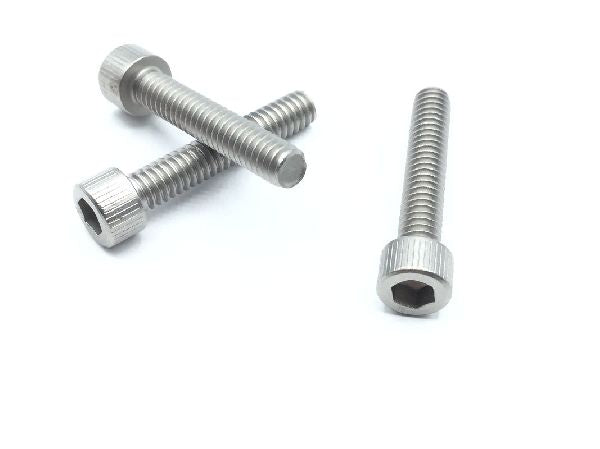

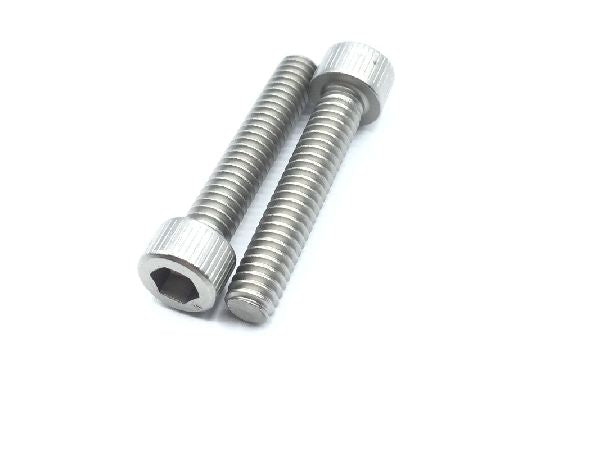

NAS1352N08-14 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.45

Units per Pack 25

Price per Pack $61.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $61.25

Add item to quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.845 inches and 0.875 inches
Head Height: Between 0.159 inches and 0.164 inches
Internal Drive Style: Hexagon
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.783 inches and 0.875 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unrc
Width Across Flats: Between 0.1406 inches and 0.1426 inches
Head Diameter: Between 0.262 inches and 0.270 inches
