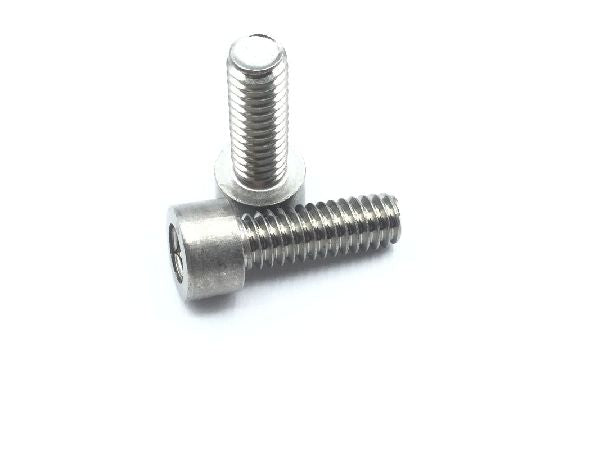

NAS1352N08-8 Socket Head Cap Screw

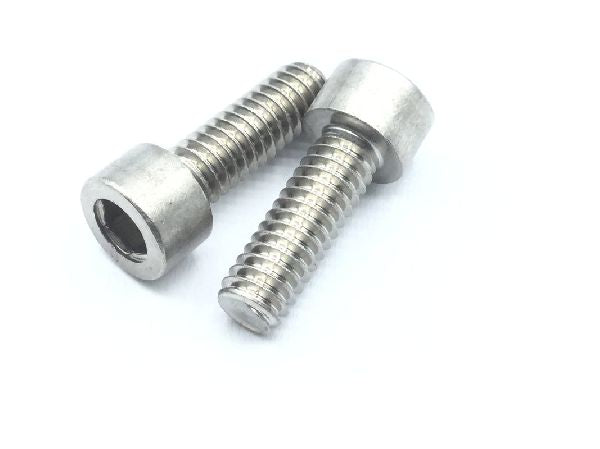

NAS1352N08-8 Socket Head Cap Screw (2)
NAS1352N08-8 Socket Head Cap Screw (3)

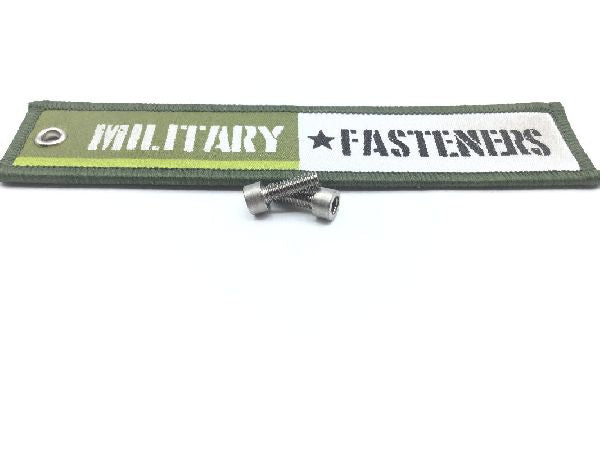

NAS1352N08-8 Socket Head Cap Screw (4)

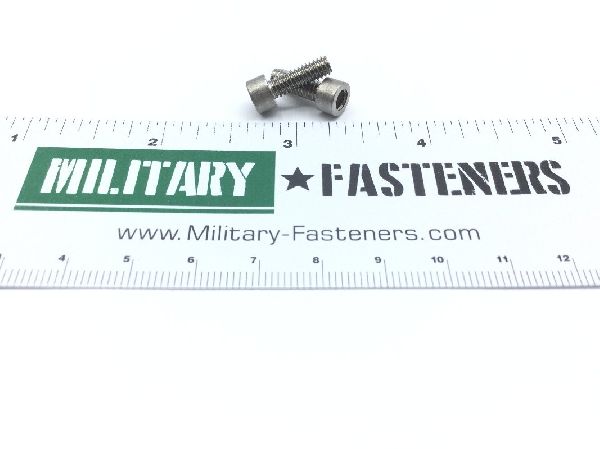

NAS1352N08-8 Socket Head Cap Screw (5)

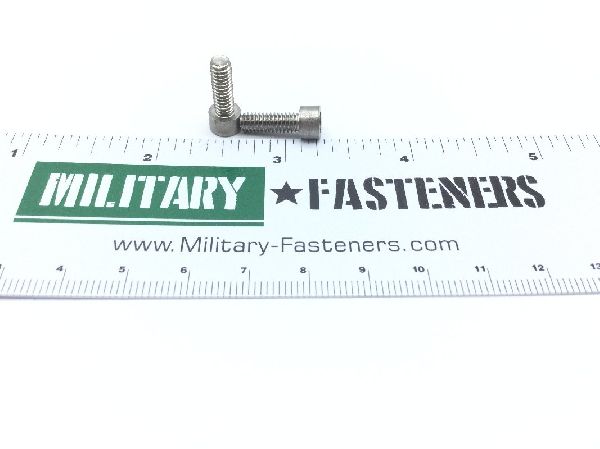

NAS1352N08-8 Socket Head Cap Screw (6)
NAS1352N08-8 Socket Head Cap Screw
NAS1352N08-8 Socket Head Cap Screw (2)
NAS1352N08-8 Socket Head Cap Screw (3)
NAS1352N08-8 Socket Head Cap Screw (4)
NAS1352N08-8 Socket Head Cap Screw (5)
NAS1352N08-8 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1352N08-8 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat chamfer
Material
Iron alloy 660
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3a
Fastener Length
Between 0.47 inches and 0.50 inches
Head Height
Between 0.159 inches and 0.164 inches
Internal Drive Style
Hexagon
Material Specification
Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi)
160000 pounds per square inch
Specification Data
80205-nas1352 professional/industrial association standard
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
Between 0.408 inches and 0.500 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unrc
Width Across Flats
Between 0.141 inches and 0.143 inches
Head Diameter
Between 0.262 inches and 0.27 inches
