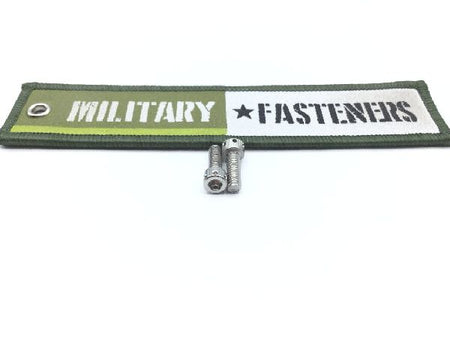

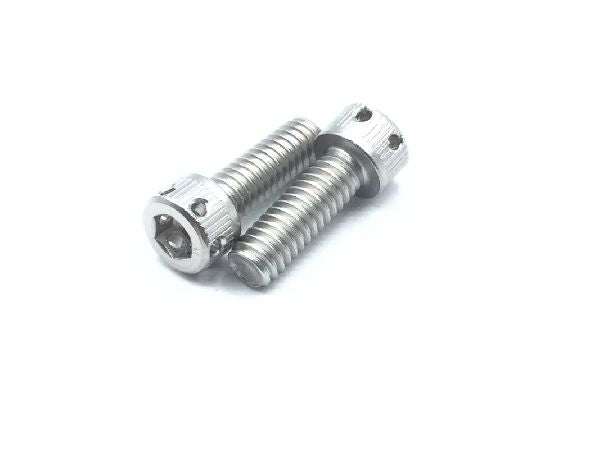

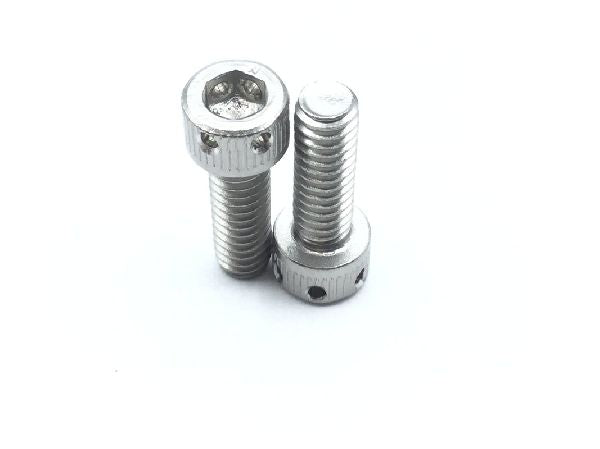

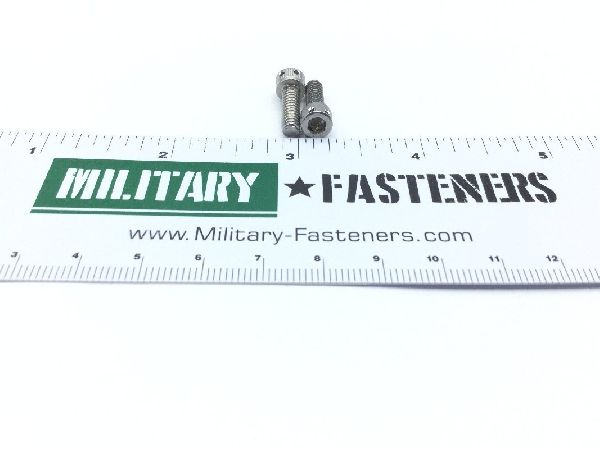

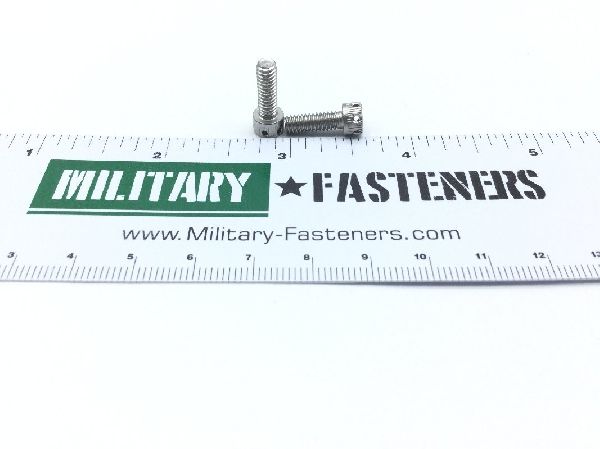

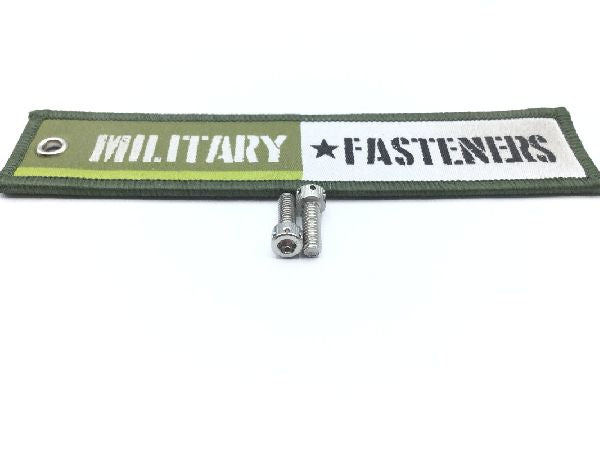

NAS1352N08H8 Socket Head Cap Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.470 inches and 0.500 inches
Head Height: Between 0.159 inches and 0.164 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: Ams 5731 assn standard single material response or ams 5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.408 inches and 0.500 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unrc
Width Across Flats: Between 0.140 inches and 0.142 inches
Head Diameter: Between 0.262 inches and 0.270 inches
Hole Diameter: Between 0.044 inches and 0.050 inches
