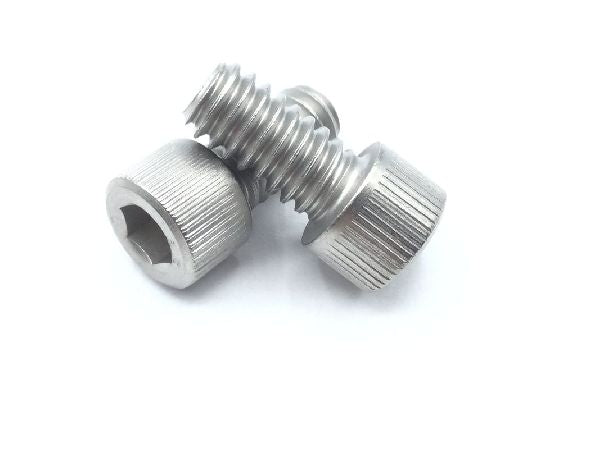

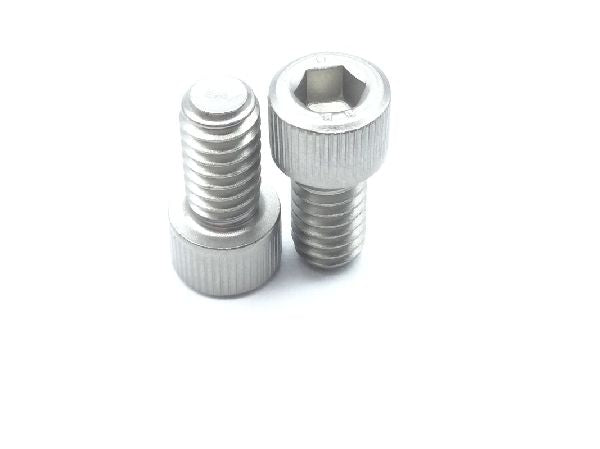

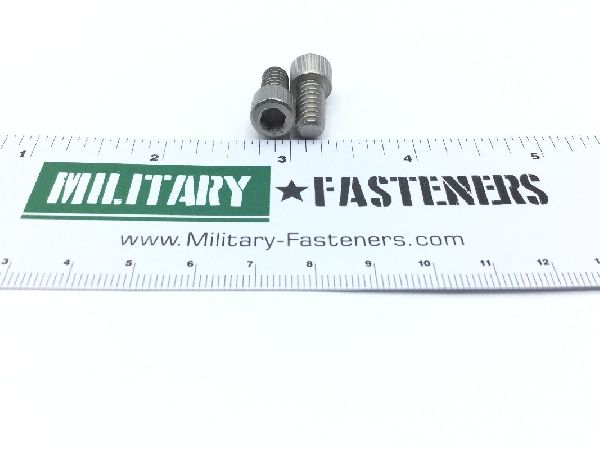

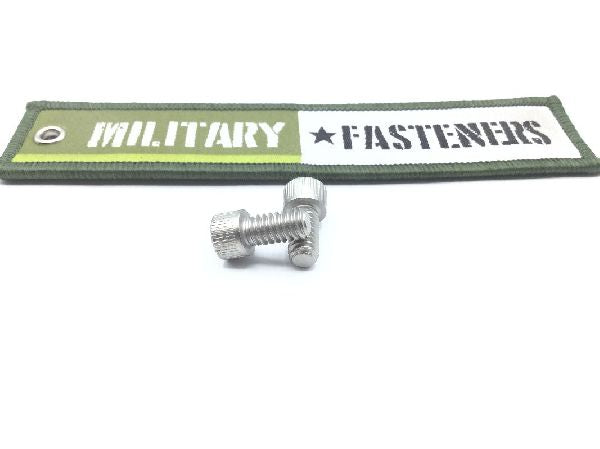

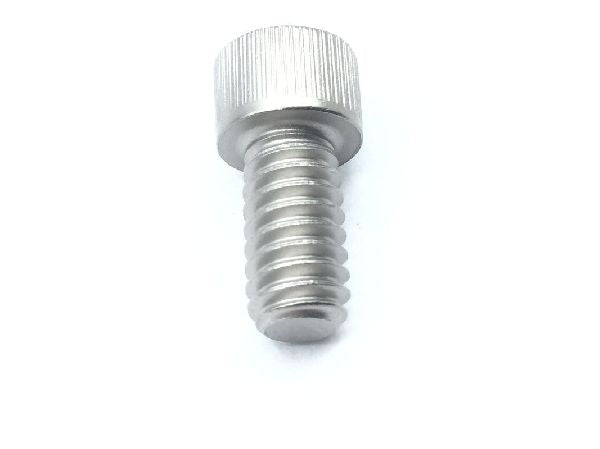

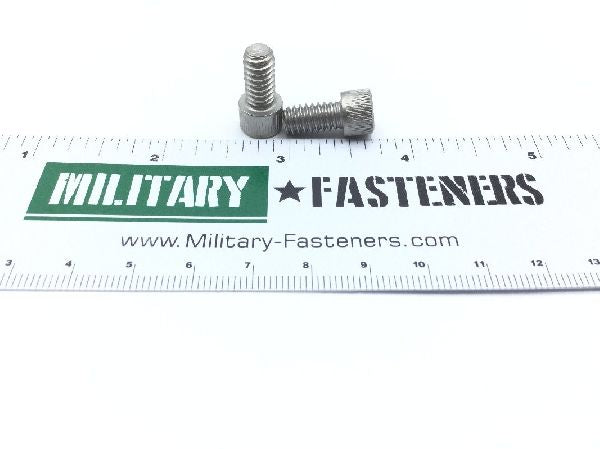

NAS1352N4-8 Socket Head Cap Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $4.16
Units per Pack 10
Price per Pack $41.60
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $41.60
Add item to quote
Head Style
Flat chamfer
Material
Iron alloy 660
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3a
Fastener Length
Between 0.470 inches and 0.500 inches
Head Height
Between 0.244 inches and 0.250 inches
Internal Drive Style
Hexagon
Material Specification
Ams5731 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi)
160000 pounds per square inch
Specification Data
80205-nas1352 professional/industrial association standard
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
Between 0.370 inches and 0.500 inches
Thread Qty Per Inch (tpi)
20
Thread Series Designator
Unrc
Width Across Flats
Between 0.187 inches and 0.190 inches
Head Diameter
Between 0.365 inches and 0.375 inches
