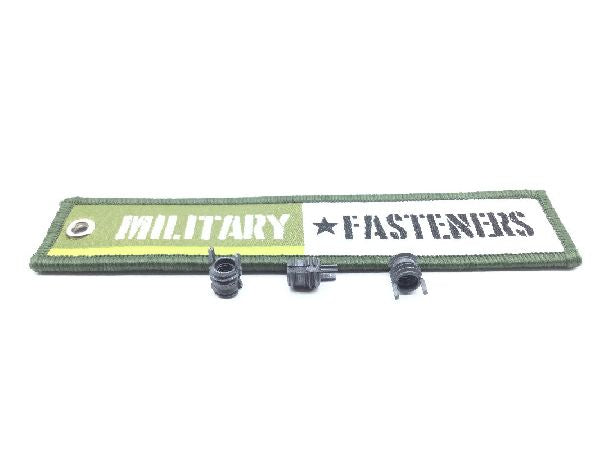

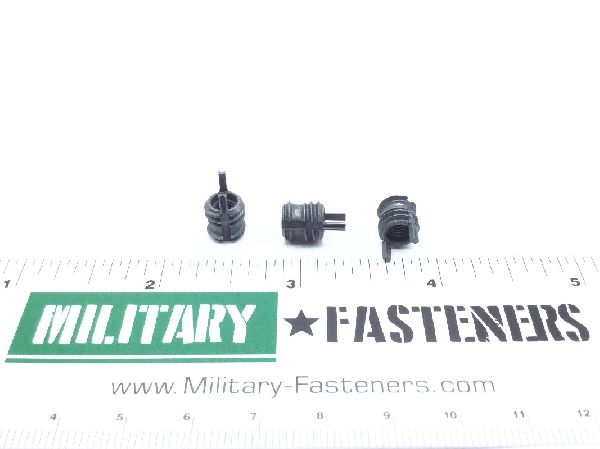

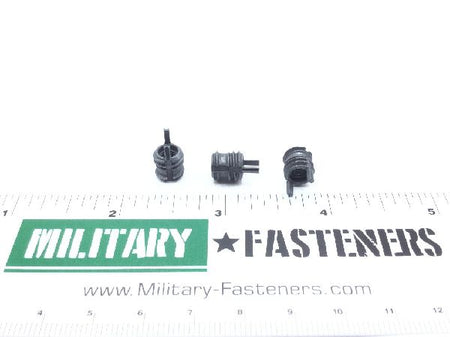

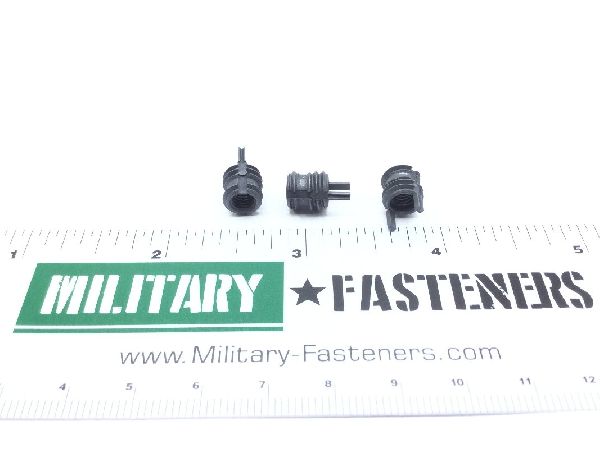

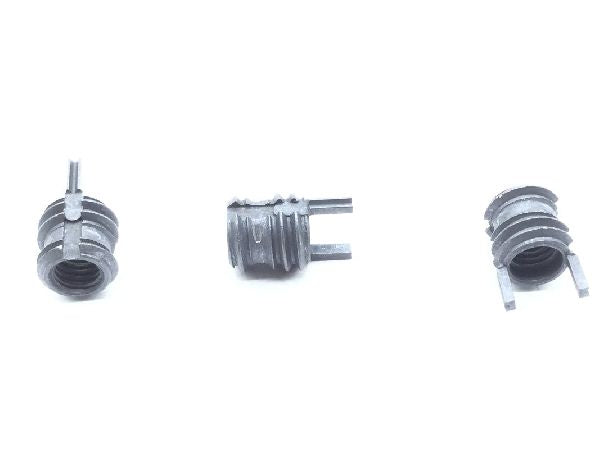

NAS1394-3L Screw Thread Insert

NAS1394-3L Screw Thread Insert (2)

NAS1394-3L Screw Thread Insert (3)

NAS1394-3L Screw Thread Insert (4)

NAS1394-3L Screw Thread Insert (5)

NAS1394-3L Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1394-3L Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Thread Class

3b

Thread Size

0.190 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: 0.242 inches
Insert Size: 0.3125-18 unc (coarse thread) 2a
Internal Thread Relief Depth: 0.070 inches
Length: 0.312 inches
Style Designator: Grooved keylock
Thread Direction: Right-hand
Thread Length: 0.312 inches
Thread Pitch Diameters: +0.271/+0.275 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
