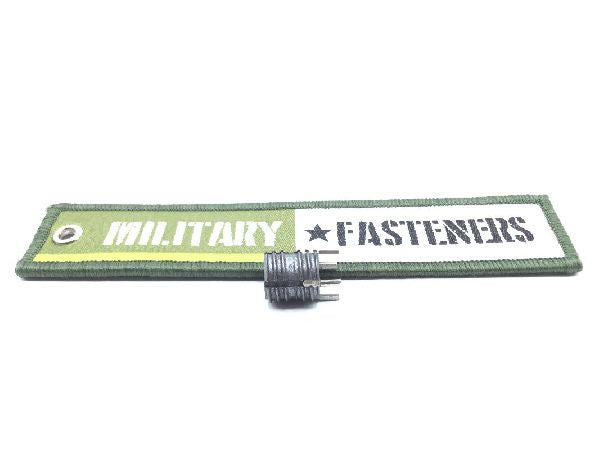

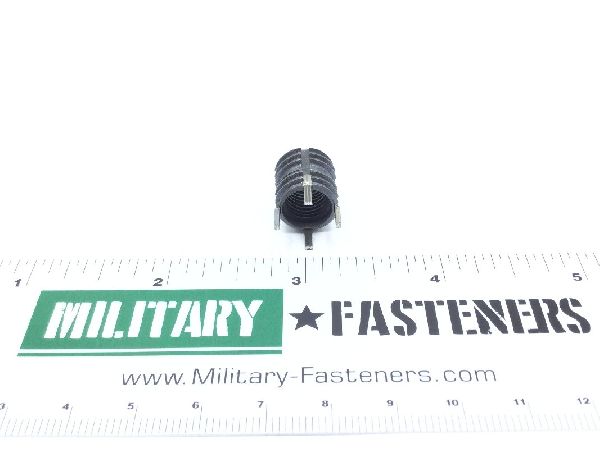

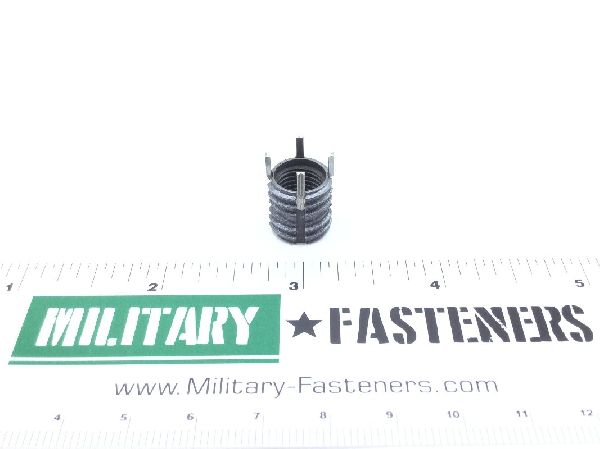

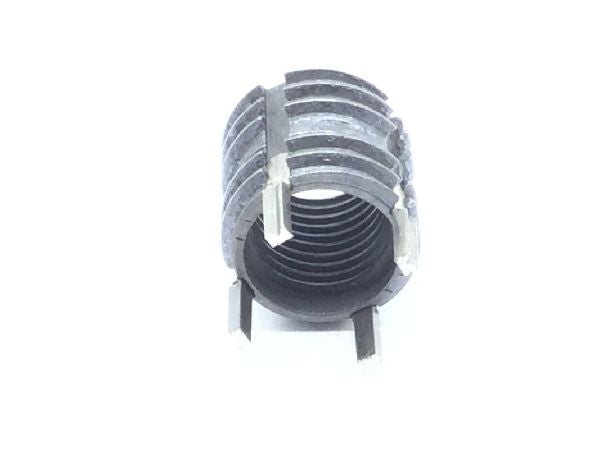

NAS1394-6L Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $41.51

Units per Pack 1

Price per Pack $41.51

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $41.51

Add item to quote

Material

Steel comp 4130 or steel comp 4140

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.3750 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: 0.430 inches
Insert Size: 0.500-13 unc (coarse thread)-2a
Internal Thread Relief Depth: 0.070 inches
Length: 0.500 inches
Material Specification: Mil-s-6758 military specification 1st material response or mil-s-5626 military specification 2nd material response
Specification Data: 80205-nas1394 professional/industrial association standard
Style Designator: Grooved keylock
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
