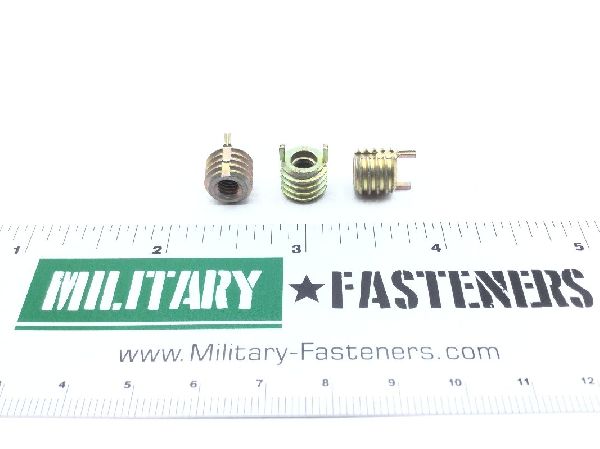

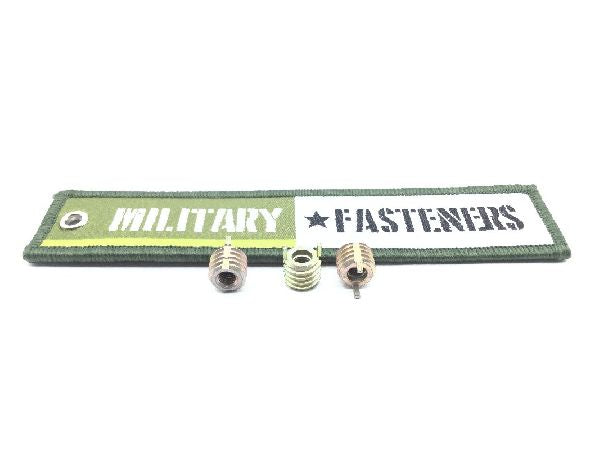

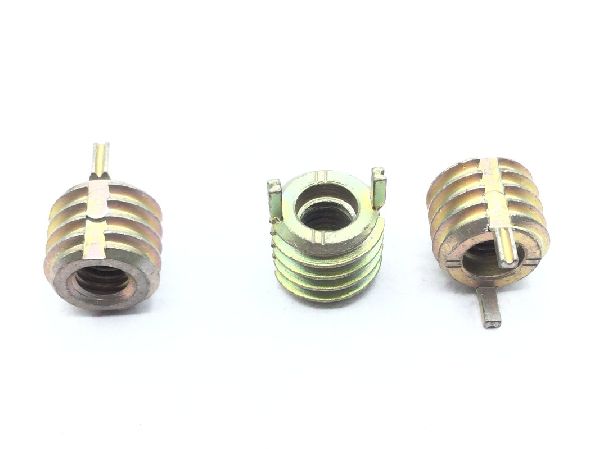

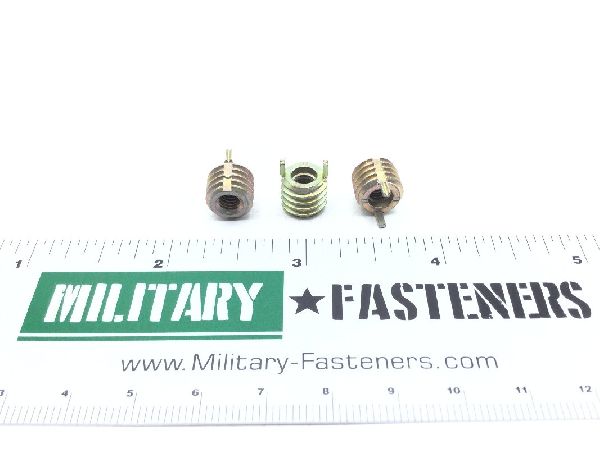

NAS1395-3 Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $16.46

Units per Pack 5

Price per Pack $82.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $82.30

Add item to quote

Material

Stainless Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.190 inches

Full Internal Thread Length: 0.240 inches
Insert Size: 0.375-16 unc (coarse thread) class 2a
Internal Thread Relief Depth: 0.070 inches
Length: 0.310 inches
Material Specification: Ams 5640 comp 303/303e assn standard single material response or astm a582 comp 303/303e assn standard single material response
Specification Data: 80205-nas1395 professional/industrial association standard
Style Designator: Keylock
Thread Direction: Right-hand
Thread Length: 0.242 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
