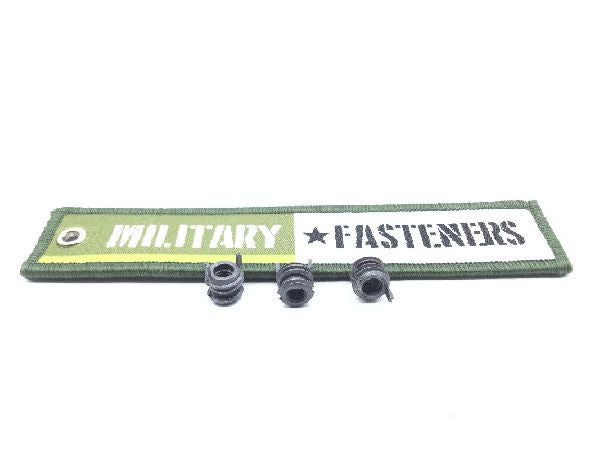

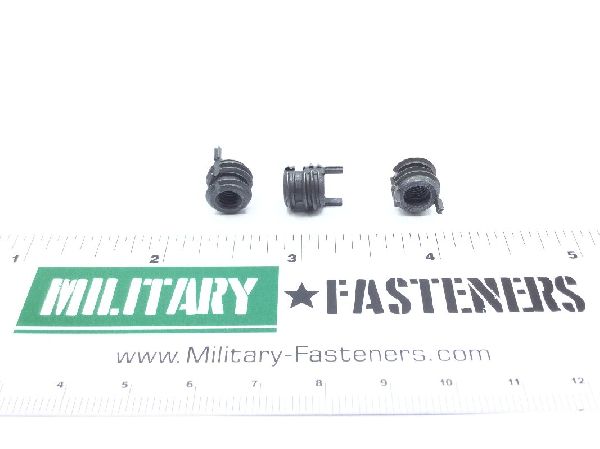

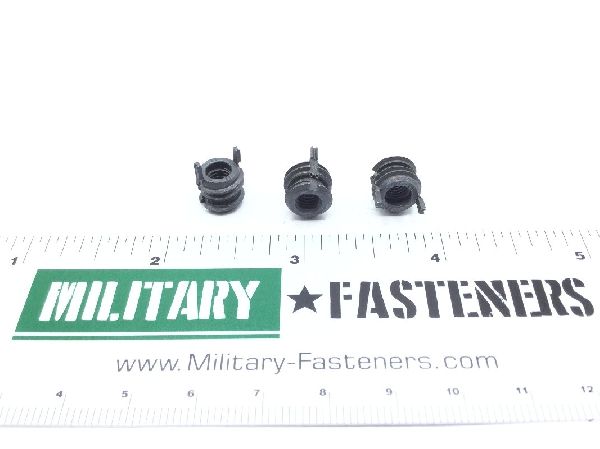

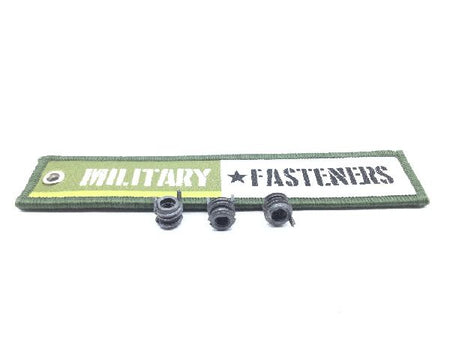

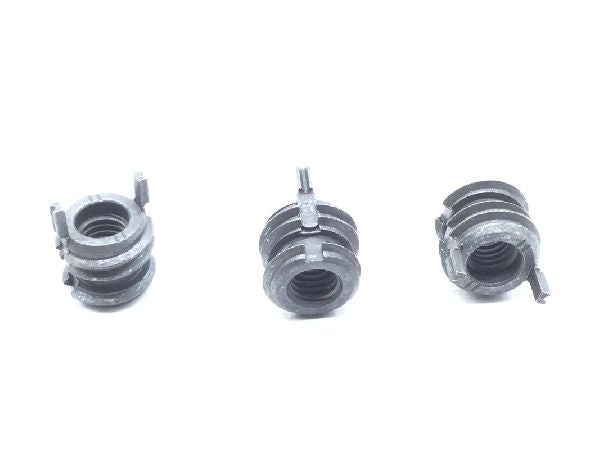

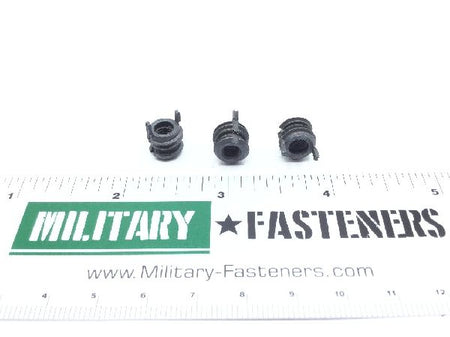

NAS1395-3L Screw Thread Insert

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Size

0.190 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: 0.240 inches
Insert Size: 3/8-16 unc
Internal Thread Relief Depth: 0.070 inches
Length: Between 0.297 inches and 0.327 inches
Material Specification: Ams 5640 (uns s30300) type i assn standard 1st material response and ams 5640 (uns s30323)type ii assn standard 2nd material response
Specification Data: 80205-nas1395 professional/industrial association standard
Style Designator: Grooved keylock
Thread Direction: Right-hand
Thread Length: Between 0.297 inches and 0.327 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
